Portable Charging Station with Output Current 38A Movable CCS2 Type 2 15KW DC Fast EV Charger Input Voltage 260-475V
Price:
CN¥21,003.56/sets 1-1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
MAX POWER
Product Description
Product Description
Model | 15KW | ||
AC Input | Input Rating | 380Vac±15% | |
AC Input Connection | 3P + N +PE, Wye connection | ||
Max. Input Current | 30A | ||
Frequency | 50 /60 Hz | ||
Power Factor | >0.99@full load | ||
Efficiency | 95% | ||
DC Out put | Output Voltage Range | 200-750Vdc | |
Max, Output Power | 15KW | ||
Max. Output Current | 38A | ||
User Interface | TFT-LCD Touch Panel | No | |
Push Buttons | No | ||
Interface | USB | ||
Packing | Dimension | 506×161×277mm | |
Weight | 25KG | ||
Environmental | Operating Temperature | -40~85℃，25℃（TYPE） | |
Humidity | 5%-90% RH, non-condens,ng | ||
Altitude | 2000m | ||
IP Level | IP43 | ||
Mechanical | Cable Length | 5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable | |
Regulation | EN61851-1 | ||
Regulation | Certification | CE , ROHS | |
Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 | ||

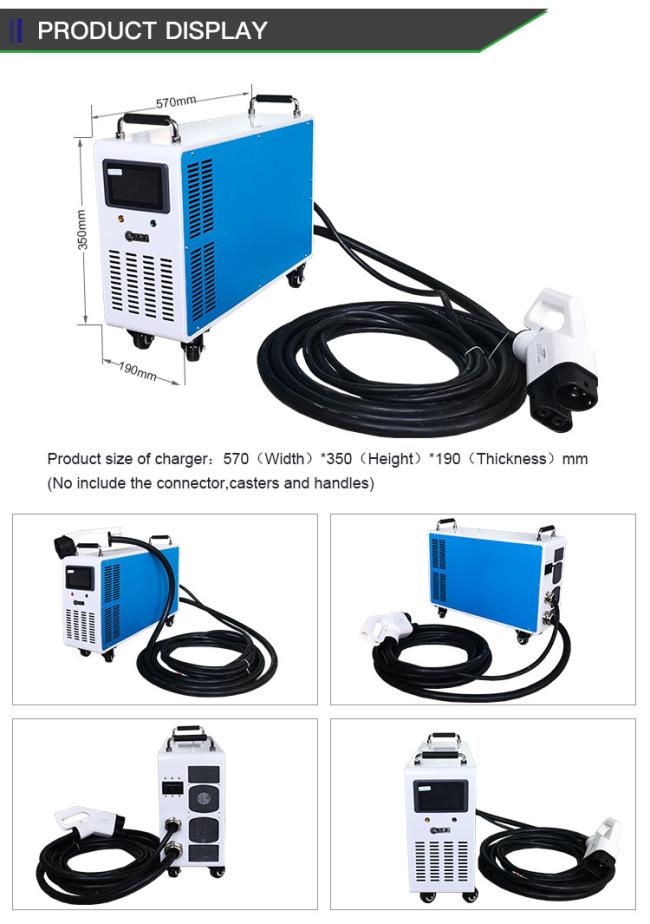

15kw portable charger
◆ The 15KW portable charger produced by our company, with input voltage of 380V, voice navigation, easy to use, rated output power of 15KW, waterproof and dustproof function, multiple safety protection.
◆By monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
◆High performance charging module, super wide charging range, high efficiency.
◆ Small size, light weight, convenient and efficient service.
◆ Can also be customized production according to vehicle BMS parameters.
◆High efficiency:≥95%
◆By monitoring module, power module, lightning protection unit, intelligent and friendly interface, etc.
◆High performance charging module, super wide charging range, high efficiency.
◆ Small size, light weight, convenient and efficient service.
◆ Can also be customized production according to vehicle BMS parameters.
◆High efficiency:≥95%
Recommanded For You
Company Profie
Please feel free and click here for more information.
Exhibition
Packaging and shipping
Customer Reviews
Please feel free and click here for more information.
FAQ
Q1.Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years.
Q2.What is the warranty?
A: 12 months. In this period, we will supply technical support and replace the new parts by free,customers are in charge of
delivery.
Q3. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of trade?
A: EXW, FOB, CFR, CIF, DAP,DDU,DDP
Q6. How about your delivery time?
A: Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q10.What’s the difference between Movable Charger and Wallbox Charger?
A: In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is IP43, rainy days and other weather can not be used outdoors.
