220G 18.9L OBD2 Connector for Truck and Truck Diagnostic Connector Cable

obdii 24v cable 16pin male to db15 obdii heavy duty 24 v cable for launch scanner

Product Application

At the beginning of OBD, it was only to monitor whether the emission of exhaust gas exceeded the standard. With the increase of regulatory requirements for environmental pollution emissions, the continuous development and innovation of vehicle networks and smart cars, the expansion of OBD functions has become more widespread in the field of passenger vehicles. The use of the OBD extension function is closely linked to the willingness of the majority of vehicle owners to consume, driving habits, the ecological environment of the car network, and the support of the automobile industry. Therefore, the OBD function expansion and application of the road is a long way to go.

Main Features

This cable is J1939 male to female pass-thro to DB cable .
The truck cable new design and very small connector save much space on car
Another side can do DB,OBD male /female or customized molex connector
Pinout can be do as your needs ,if not we can use our standard .
Cable length 1ft ,3ft or other , can be customized
- Pin-out information and cable specification can be customized.
- Materials of connector and cable comply with UL and ROSH standards.

Model : AOT-2714

Name: J1939 CABLE

Brand: AOTAI

Original: China

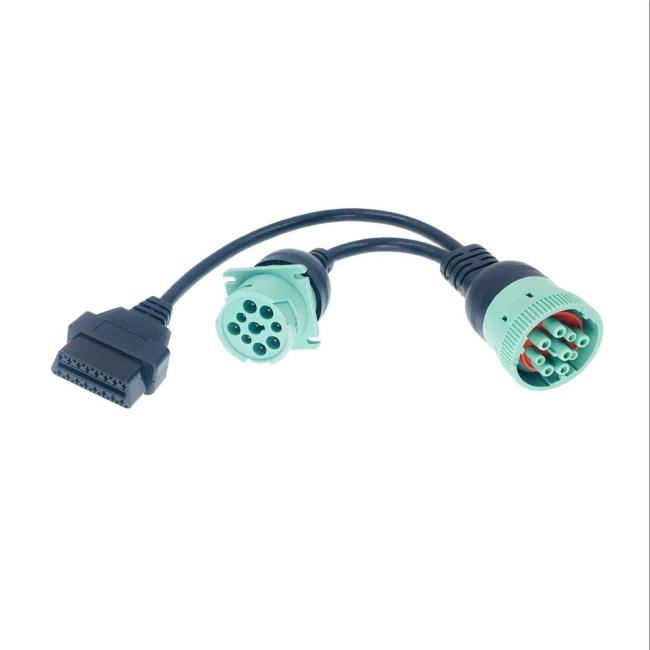

9P J1939 TYPEII MALE TO FEMALE WITH J1962 FEMALE CABLE  .

9C 20AWG L=1M+0.3M .

Model: AOT-2665

Name: J1939 M/F to DB15 CABLE
Brand: AOTAI
Original: China

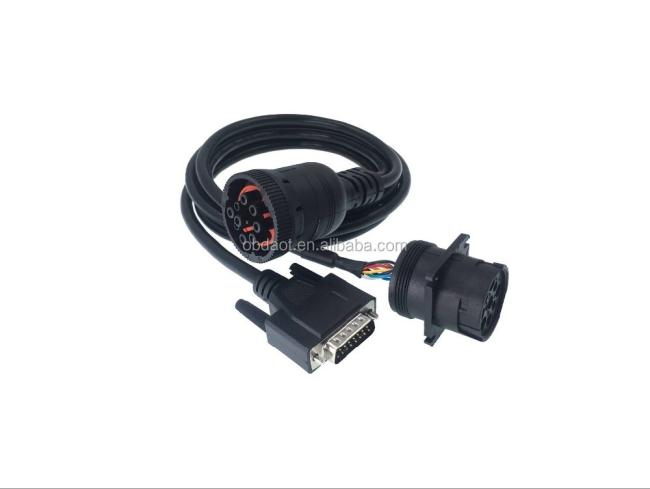

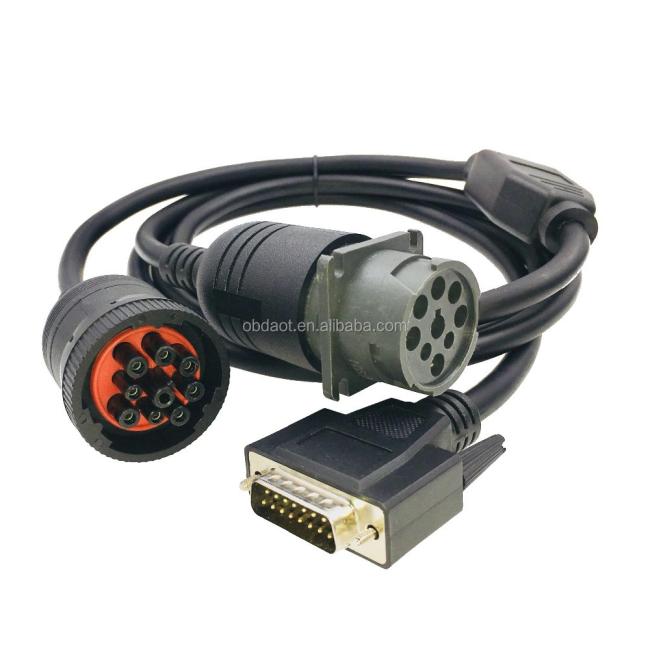

J1939  male to female pass-thro  to DB15 cable .

20AWG L=1M+0.3M

Model : AOT

Name: J1939 type 2 M/F to DB CABLE
Brand: AOTAI
Original: China
J1939 TYPE2 MALE TO female to DB9 MALE CABLE .

4C 20AWG OD:5.0 L=0.3M

Model : AOT

Name: J1939 CABLE
Brand: AOTAI
Original: China

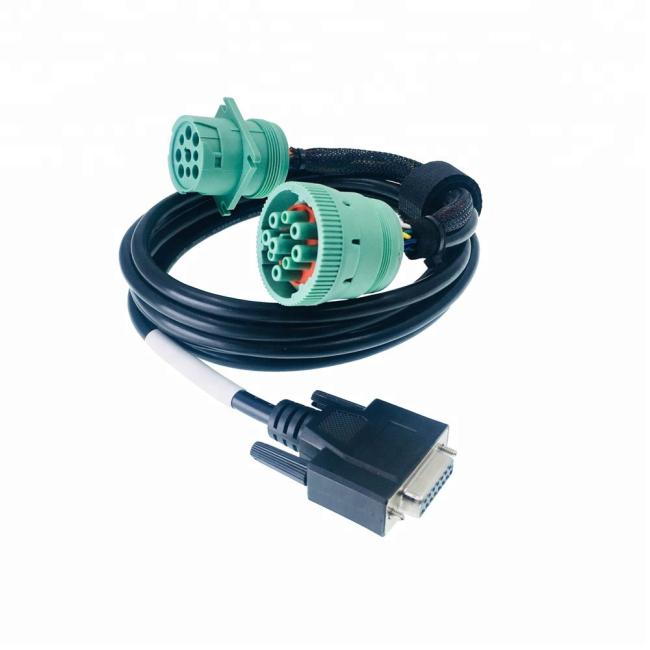

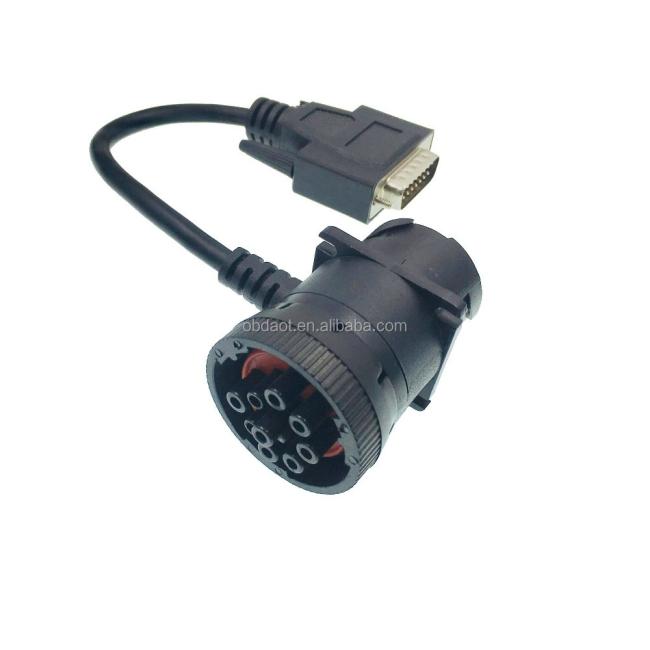

J1939 F to male+DB15 CABLE

Pinout as custom .

4C/5C/9C 20AWG /22AWG L=1M
