It can easily be used to make essential oils from plants such as Lavender , Rosemary , Pine and Fir Needles , Peppermint , Basil , Eucalyptus Leaves etc.
This distiller is available in either propane or electric, depending on your needs.
High Oil Yield 1000L Lemongrass Oil Extraction Plant Essential Oil Extraction Equipment Rose Water Distillation Machine
Price:
CN¥85,259.72-433,524.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Product Structure:
The device consists of inverted vertebral distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.
Essential oil distillation extracting equipment Main parameters
Distillation kettle | Effective volume: 3000L, using high-pressure steam through heating. Inside: working pressure: normal pressure;design temperature:120℃,work temperature≤100℃.Working medium:water; Upper oval headδ=5mm/S30408,Cylinder δ=5mm/S30408. Discharge slag door:DN1200, Three cylinder rotary slag gate, Single cylinder to open the door, two cylinder locking, a slag door with self-locking cylinder. |
Demister | Size Φ300×750,δ=3mm/S30408,Demister inside has baffle, The top of the demister is set to the quick opening hole. Demister to facilitate cleaning.Meet the GMP requirements. |
Condenser | Vertical condenser. Heat transfer area is greater than10m2 . Pipeline:designed pressure: normal pressure;working pressure: normal pressure;design temperature:100℃, work temperature≤90℃. Working medium:Secondary steam. Length:Φ25×2,Material: S30408 |

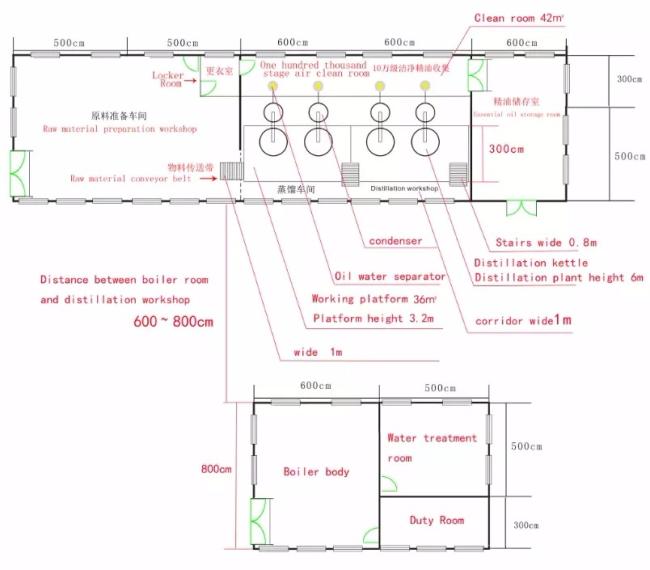

Workshop layout:
Oil Show

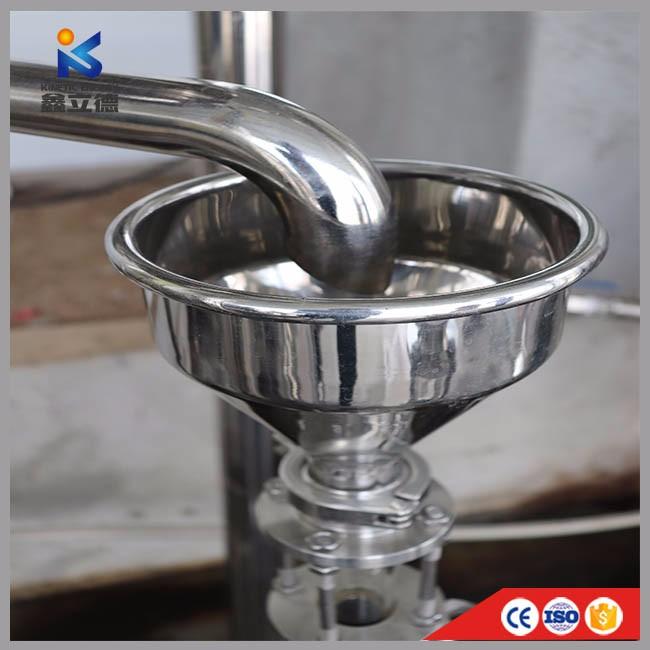

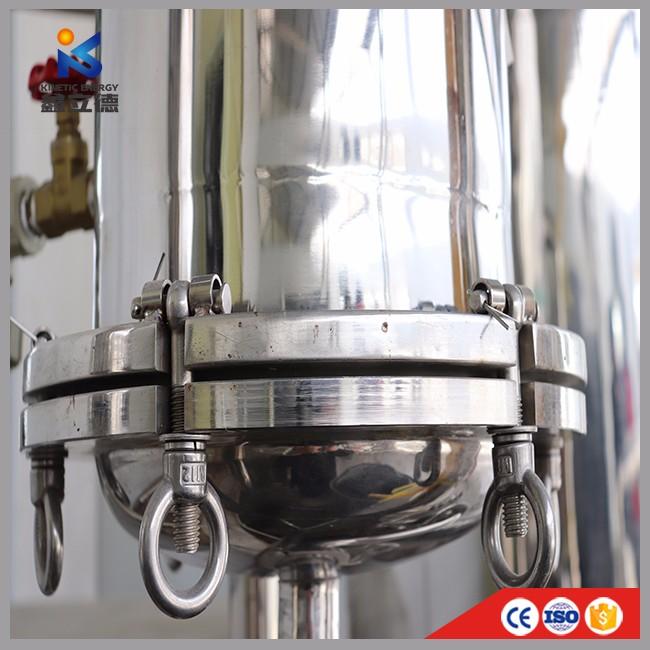

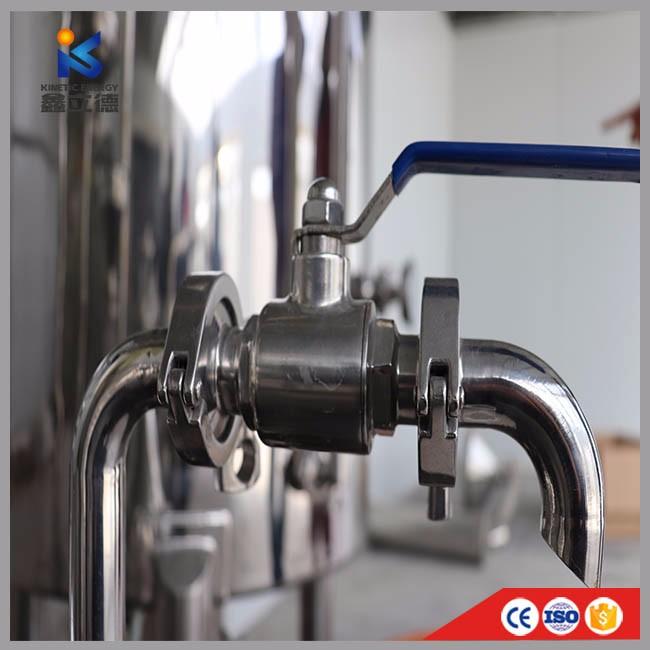

Detailed Images

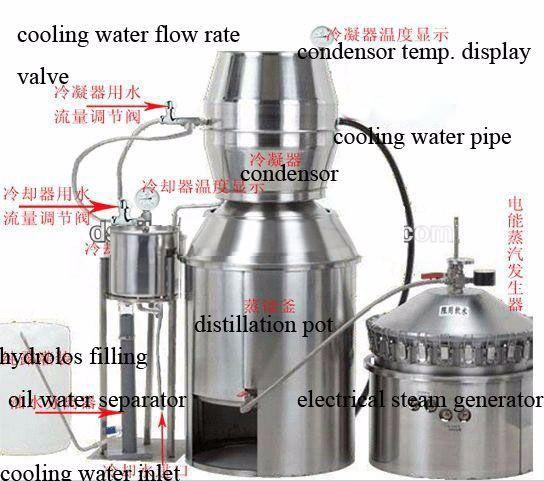

essential oil distiller features:
essential oil distiller features:
This versatile distiller can be used for water distillation or water steam distillation.
It can be used for either water distillation (where the plant material is submersed in water) or as a water/steam distiller (where the column keeps plant material from direct contact with water).
essential oil distiller features:
Essential oil distillation equipment features:
Name: Steam distillation
Brand: KINETIC
Original: China
Power:380V/50HZ/3P, 220V/60HZ/3P
Raw Material
Description | Raw material | Description | Raw material |
Gaultheria procumbens essential oil distiller | Gaultheria procumbens leaf | Cinnamomum cassia essential oil distiller | Cinnamomum cassia Cinnamon bark |
Achillea millefolium essential oil distiller | Achillea millefolium Flowers and upper branches | Santalum album essential oil distiller | Santalum album Wood core and root core |
Cymbopogon nardus essential oil distiller | Cymbopogon nardus Leaf blade | Matricaria chamomilla essential oil distiller | Matricaria chamomilla flowers |
Pimenta dioica essential oil distille | Pimenta dioica seeds | Anthemis nobilis essential oil distiller | Anthemis nobilis flowers |
Angelica archengelica essential oil distiller | Angelica archengelica root | Cinnamomum zeylanicum essential oil distiller | Cinnamomum zeylanicum Wood core |
Angelica archengelica essential oil distiller | Angelica archengelica seeds | Salvia sclarea essential oil distiller | Salvia sclarea Leaf and upper branch |
Pimpinella anisum essential oil distiller | Pimpinella anisum seeds | Eugenia caryophylatta essential oil distiller | Eugenia caryophylatta bud |
Arnica montana essential oil distiller | Arnica montana root | Eugenia caryophylatta essential oil distiller | Eugenia caryophylatta Leaf |

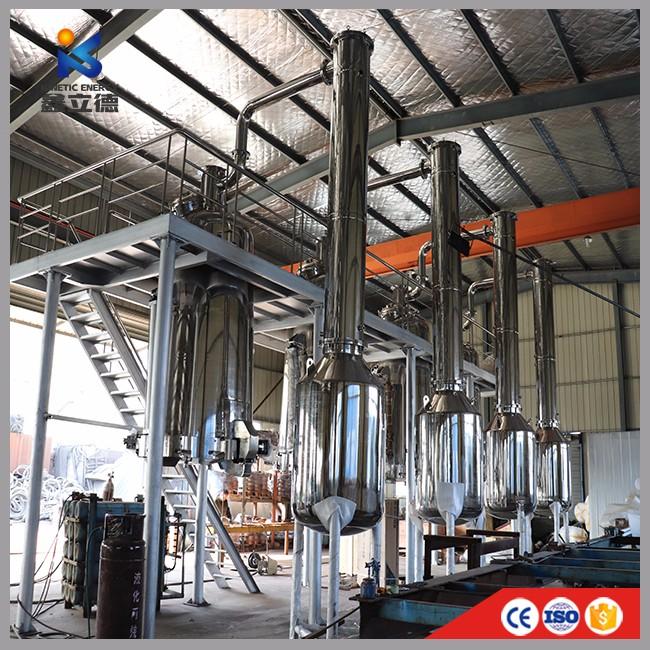

Installation
Our Factory
Wuhan Kinetic is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products .
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show our factory and customers in our workshop.
Certification
Our service
Pre-sales service
1.Quick response
2.Detailed quotation
3.Professional production and transportation solution
After-sales service
1.One year warranty
2.we will provide one engineer to assemble and train workers.
3.7*24 hours technical support by mail/whatsapp/skype/wechat/ mobile phone.
Packing and Delivering
FAQ:
Q1: What is the Warranty for the machines?
A1: 1 year for free.
Q2: What is the Material?
A2: Stainless steel.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q5: How to ask quotation?
A5: Please note us what type of raw materials , and how many kinds of raw materials you want to treat per batch, then we will send you quotation as soon as we can.
Q6: Can we ask the oil plant for different types of oil?
A6: Yes, but we recommend no more than 3 different types.
Q7: Essential oil plants require how large of a workspace?
A7: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available.
Q8: How long will it take to receive my products?
A8: As a general rule, it will take one Month for us to produce.
Q9: Do you offer oversea installation?
A9: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely.
