High Yield Steam Distillation Essential Oil Extractor Suitable for Lemongrass Oil Extraction
Hot Sale Steam Distillation Equipment For Essential Oil/Steam Distillation Essential Oil Extraction/Rose Oil Extraction Machine
KINETIC brand,rose oil extraction machine,advanced and Continuously improving .We had specialized in essential oil extracting technology and equipment for more than 30 years,serviced for thousands of customers all over the world.we hope to bring customers extraordinary experience and sincerely hope to serve you.
Application of essential oil distillation equipment:
This essential oil distillation equipment is popular,famous,advanced and with top quality in production of Chinese medicines,health products,biological drugs,cosmetics and food .This essential oil Distill equipment uses technology and chemical separation,can extract plant components efficiently by steam distillation equipment for essential oil , have good effect in collecting essential oil from plants.
Main advantage of rose oil extraction machine
(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
(4)Compact structure.It covers only about 1.5 square meter.
rose oil extraction machine Oil quality

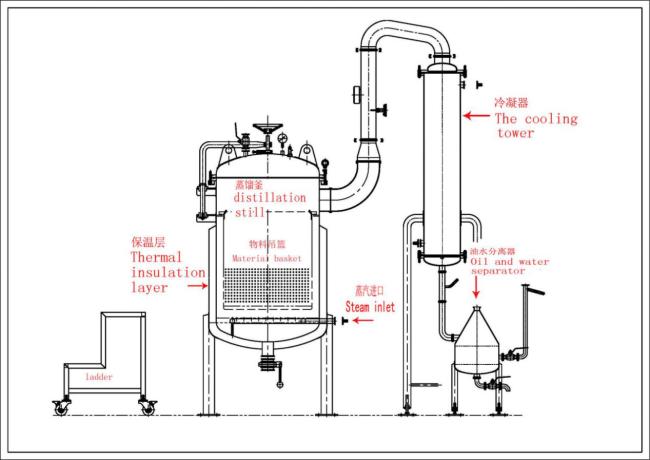

rose oil extraction machine Structure
The device consists of distillation kettle, material basket, jacket heating layer, insulation layer, demister, condensing tower,re-distillation column, rectifier, oil-water separator, Electric steam
boiler, filter and other related pipelines composition.
1, Distillation equipment are made of S30408 stainless steel, equipment, surface polishing Ra ≤ 0.6μm, outer surface matte treatment Ra ≤ 0.8μm, to ensure that no health dead ends, meet GMP requirements.
2, Include control box, manhole, cleaning ball, the water inlet, depending on the light mouth, sight glass, spare mouth, pressure gauge interface, thermometer interface, return port, outlet, through steam mouth and other related fittings.
Flow Chart
| rose oil extraction machine Main Parameters |
1, Distillation kettle: Max volume 150L, effective volume 100L, material basket volume 80L, use jacket heating and steam direct heating, heat exchange area more 1m2 Kettle inside: design pressure: 0.09Mpa, working pressure: normal pressure; design temperature:120℃,work temperature≤100℃.Working medium:water; Jacket layer inside: Material Aluminium silicate, thickness 50mm Slag discharge door:Manual slag door, DN100; Insulation layer: Material Aluminium silicate, thickness 50mm 2, Demister: Size Φ102×500, clamping band quick connect installation, demister to facilitate cleaning.Meet the GMP requirements. 3, Condensing tower: Vertical condenser. Heat transfer area is greater than 2m2. Pipeline: designed pressure: normal pressure;working pressure: normal Pressure; design temperature: 100℃, work temperature≤100℃. Working medium:Secondary steam. Length: Φ25×2; Shell: designed pressure: 0.3Mpa,working pressure: normal pressure; design temperature: 80℃,work temperature: 15~30℃. Working medium: cooling water. 4,Pure dew storage tank: 304 stainless steel production, volume 25L. 5, Oil-water separator: the special oil-water separator, stainless steel tank, glass as the cup, tank volume is 30L. 6, Filter: 120 mesh filter, flow 2.0m3 / h, material for the S30408. 7, Electric steam boiler: 380v, 50Hz, adjustable 6-18kw, steam temperature: 120℃/100℃, steam production: 26kg/h, working pressure: 0.4 ~ 0.6MPa, cable cross-sectional area: 10m2, water pressure: 0.4MPa. 8, Accessories: S30408 stainless steel bracket, a thermometer, a pressure gauge, a mirror. |
Raw material
| Flowers | Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage;achillea millefolium; osmanthus; peony; marigold;l aurel; |
| Leaves | Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil. |
| Roots | Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor. |
| Grasses | Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose. |
| Wood | Sandalwood; cedar wood; rosewood; Birch; holly; camphor; melaleuca; sassafras. |
| Resins | Frankincense; myrrh; benzoin; fir tree; amyris; Elemi |
| Barks | Cinnamon. |
| Citus | Bergamot; grapefruit; lemon; orange; lime; tangerine |
| Seeds | Cloves; almonds; cardamom; carrot seed; pomegranates; pepper; capsicum ; fennel. |
Kinetic (Hubei) Energy Equipment Engineering Co., Ltd. is a professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc. owing wide international market in more than 130 countries and regions
.
Kindly Reminding:
Please tell us the following information when sending inquiries. We will recommend suitable machine or provide suggestions upon the following information. Thank you in advance.
1. Raw materail
2. The capacity
Tip: Pictures along with the information above will be better.
Contact Us Start Order View Website
Q1: What is the Warranty for the machines?
A1: 1 year for free.
Q2: What is the Material?
A2: Stainless steel.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q5: How to ask quotation?
A5: Please note us what type of raw materials , and how many kgs of raw materials you want to treat per batch, then we will send you quotation as soon as we can.
