0.5HP 1HP 2HP 3HP 4HP 5HP 7.5HP 10HP 15HP 20HP 25HP 30HP 40HP 50HP 60HP 74HPThree-phase Ac Asynchronous Induction Electric Motor motore a corrente alternata
0.5HP 1HP 2HP 3HP 4HP 5HP 7.5HP 10HP 15HP 20HP 25HP 30HP 40HP 50HP 60HP 74HPThree-phase Ac Asynchronous Induction Electric Motor motore a corrente alternata

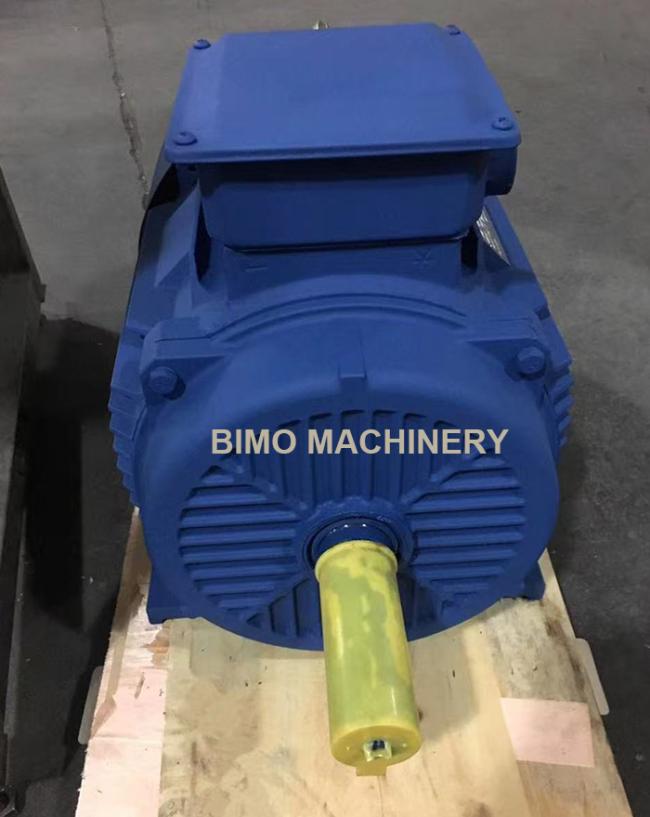

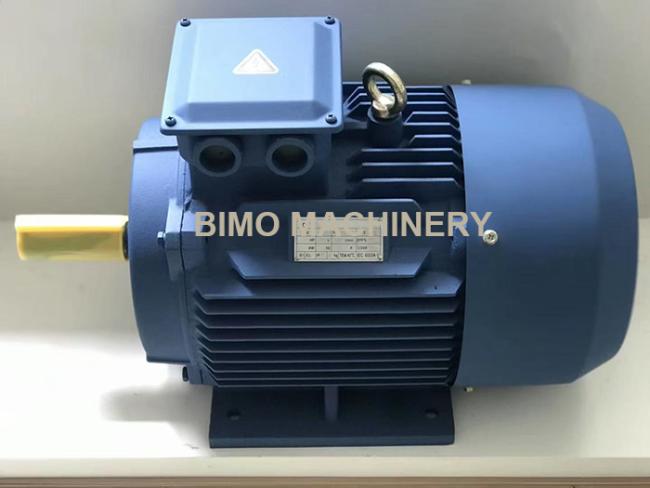

1, IE1/IE2/IE3/IE4 series Three Phase Induction AC Electric Motor with power range 0.06kw-315kw, supports multiple mounting types (B3/B5/B35/B14), and customizable voltage options.
2, It features a robust housing made of aluminum or cast iron, operates at 50HZ/60HZ, and ensures efficient performance.
3, Certifications include UKCA, EMC, EAC, and CE, ensuring compliance with international standards and providing market access for global buyers.
| Output | MODEL | Amps | Speed | Eff. | p.f. | RT | Noise LwdB | Weight | |||
| (KW) | (A) | (R/min) | % | N.m | (A) | (Kg) | |||||
| 380V 50HZ 2P | |||||||||||
| 0.18 | Y2-631-2 | 0.5 | 2800 | 65 | 0.8 | 0.61 | 2.2 | 2.2 | 5.5 | 61 | 14 |
| 0.25 | Y2-632-2 | 0.7 | 2800 | 68 | 0.81 | 0.96 | 2.2 | 2.2 | 5.5 | 61 | 14.5 |
| 0.37 | Y2-711-2 | 1 | 2800 | 70 | 0.81 | 1.26 | 2.2 | 2.2 | 6.1 | 64 | 15 |
| 0.55 | Y2-712-2 | 1.4 | 2800 | 73 | 0.82 | 1.88 | 2.2 | 2.3 | 6.1 | 64 | 15.5 |
| 0.75 | Y2-801-2 | 1.8 | 2825 | 75 | 0.83 | 2.54 | 2.2 | 2.3 | 6.1 | 67 | 16.5 |
| 1.1 | Y2-802-2 | 2.6 | 2825 | 77 | 0.84 | 3.72 | 2.2 | 2.3 | 7 | 67 | 17.5 |
| 1.5 | Y2-90S-2 | 3.4 | 2840 | 79 | 0.84 | 5.04 | 2.2 | 2.3 | 7 | 72 | 21 |
| 2.2 | Y2-90L-2 | 4.9 | 2840 | 81 | 0.85 | 7.4 | 2.2 | 2.3 | 7 | 72 | 25 |
| 3 | Y2-100L-2 | 6.3 | 2880 | 83 | 0.87 | 9.95 | 2.2 | 2.3 | 7.5 | 76 | 33 |
| 4 | Y2-112M-2 | 8.1 | 2890 | 85 | 0.88 | 13.22 | 2.2 | 2.3 | 7.5 | 77 | 41 |
| 5.5 | Y2-132S1-2 | 11 | 2900 | 86 | 0.88 | 18.11 | 2.2 | 2.3 | 7.5 | 80 | 63 |
| 7.5 | Y2-132S2-2 | 14.9 | 2900 | 87 | 0.88 | 24.7 | 2.2 | 2.3 | 7.5 | 80 | 70 |
| 11 | Y2-160M1-2 | 21.3 | 2930 | 88 | 0.89 | 35.85 | 2.2 | 2.3 | 7.5 | 86 | 110 |
| 15 | Y2-160M2-2 | 28.8 | 2930 | 89 | 0.89 | 48.89 | 2.2 | 2.3 | 7.5 | 86 | 120 |
| 18.5 | Y2-160L-2 | 34.7 | 2930 | 90.5 | 0.9 | 60.3 | 2.2 | 2.3 | 7.5 | 86 | 135 |
| 22 | Y2-180M-2 | 41 | 2940 | 91.2 | 0.9 | 71.46 | 2 | 2.3 | 7.5 | 89 | 165 |
| 30 | Y2-200L1-2 | 55.5 | 2950 | 92 | 0.9 | 97.12 | 2 | 2.3 | 7.5 | 92 | 218 |
| 37 | Y2-200L2-2 | 67.9 | 2950 | 92.3 | 0.9 | 119.78 | 2 | 2.3 | 7.5 | 92 | 230 |
| 45 | Y2-225M-2 | 82.3 | 2970 | 92.3 | 0.9 | 144.7 | 2 | 2.3 | 7.5 | 92 | 280 |
| 55 | Y2-250M-2 | 100.4 | 2970 | 92.5 | 0.9 | 176.85 | 2 | 2.3 | 7.5 | 93 | 365 |
| 75 | Y2-280S-2 | 134.4 | 2970 | 93.2 | 0.91 | 241.16 | 2 | 2.3 | 7.5 | 94 | 495 |
| 90 | Y2-280M-2 | 160.2 | 2970 | 93.8 | 0.91 | 289.39 | 2 | 2.3 | 7.5 | 94 | 565 |
| 110 | Y2-315S-2 | 195.4 | 2980 | 94 | 0.91 | 352.51 | 1.8 | 2.2 | 7.1 | 96 | 890 |
| 132 | Y2-315M-2 | 233.2 | 2980 | 94.5 | 0.91 | 423.02 | 1.8 | 2.2 | 7.1 | 96 | 980 |
| 160 | Y2-315L1-2 | 279.3 | 2980 | 94.6 | 0.92 | 512.75 | 1.8 | 2.2 | 7.1 | 99 | 1055 |
| 200 | Y2-315L2-2 | 348.4 | 2980 | 94.8 | 0.92 | 640.94 | 1.8 | 2.2 | 7.1 | 99 | 1110 |
| 250 | Y2-355M-2 | 433.2 | 2985 | 95.3 | 0.92 | 799.83 | 1.6 | 2.2 | 7.1 | 103 | 1900 |
| 315 | Y2-355L-2 | 544.2 | 2985 | 95.6 | 0.92 | 1007.79 | 1.6 | 2.2 | 7.1 | 103 | 2300 |
1,100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding
production of enameled wire,high thermal conductivity,good heat dissipation effect.
2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.
3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
