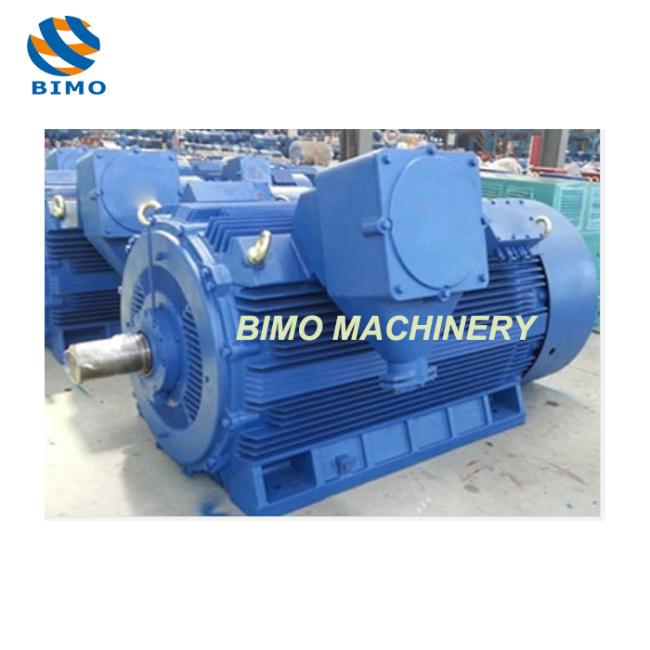

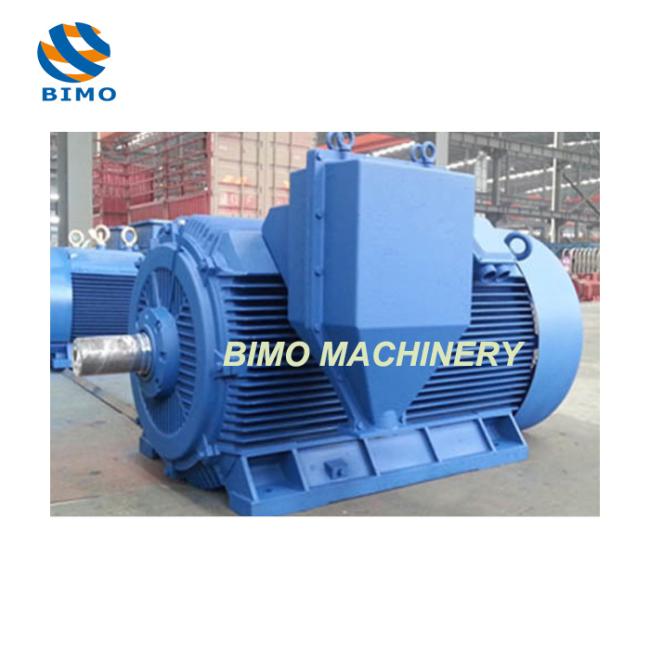

160KW-2000KW Y2 Series IC411 TEFC Compacted High Voltage 6KV 10KV Squirrel Cage Motor
160KW-2000KW Y2 Series IC411 TEFC Compacted High Voltage 6KV 10KV Squirrel Cage Motor
1, Y2 Series Medium & High Voltage Three Phase High Power AC Electric Motor FeaturesThe property approach or attain overseas advanced level,protection class in IP54 or IP55.
2, The performance and mounting dimensions meet the National standard GB755 and IEC standards. Our company was certified ISO9001-2000, the whole operation including ordering, R&D, manufacturing, sales and service is in the line of ISO9001.
3, The production is designed based on supply 50Hz(60Hz on request), 6KV, (3KV, 3.3KV, 6.6KV on request), mounting IMB3(IMB35, IMV1 on request).
4, Cold-rolled lamination steel is used to get low loss and high efficiency.Insulation class F(Rise B)and VPI process insured the insulation system.Temperature rise is B,it can keep the insulation for a long time.
5, The basic cooling method is Ic411.The cooling system is great.
6, It has the advantage of high efficiency,low vibration,low noise and easy-maintain.
7, The direct and reduced-voltage starting can be applied under rated frequency and voltage.
| Motor Type | Rated Power | Rated Speed | Efficiency | Power Factor | Current | Torque | Moment of inertia (J) | Appro WT | ||||||||||||||||||||||||||||||||||||
| Full Load 6kV | Full Load 6.6kV | Locked Rotor | Full Load | Locked Rotor | Pull Out | |||||||||||||||||||||||||||||||||||||||
| kW | (HP) | RPM | % | % | A | A | %FLC | kg-m | %FLT | %FLT | kg-m2 | kg | ||||||||||||||||||||||||||||||||
| Y2-315 1-2 | 185KW | 250HP | 2980 | 94.1 | 84.0 | 22.5 | 20.5 | 700 | 60 | 70 | 200 | 3.3 | 1740 | |||||||||||||||||||||||||||||||
| Y2-315 2-2 | 200KW | 270HP | 2980 | 94.3 | 84.0 | 24.3 | 22.1 | 700 | 65 | 70 | 200 | 3.5 | 1800 | |||||||||||||||||||||||||||||||
| Y2-315 3-2 | 220KW | 295HP | 2980 | 94.4 | 84.0 | 26.7 | 24.3 | 700 | 72 | 70 | 200 | 3.7 | 1860 | |||||||||||||||||||||||||||||||
| Y2-315 4-2 | 250KW | 335HP | 2980 | 94.4 | 84.0 | 30.3 | 27.6 | 700 | 82 | 70 | 200 | 4.0 | 1930 | |||||||||||||||||||||||||||||||
| Y2-315 5-2 | 280KW | 375HP | 2980 | 94.4 | 84.0 | 34.0 | 30.9 | 700 | 92 | 70 | 200 | 4.3 | 2000 | |||||||||||||||||||||||||||||||
| Y2-355 1-2 | 315KW | 420HP | 2980 | 94.6 | 84.0 | 38.1 | 34.7 | 700 | 103 | 70 | 200 | 6.5 | 2240 | |||||||||||||||||||||||||||||||
| Y2-355 2-2 | 355KW | 475HP | 2980 | 94.7 | 86.0 | 41.9 | 38.1 | 700 | 116 | 70 | 200 | 7 | 2340 | |||||||||||||||||||||||||||||||
| Y2-355 3-2 | 400KW | 535HP | 2980 | 94.7 | 86.0 | 47.3 | 43.0 | 700 | 131 | 70 | 200 | 7.5 | 2440 | |||||||||||||||||||||||||||||||
| Y2-355 4-2 | 450KW | 605HP | 2980 | 94.8 | 86.0 | 53.1 | 48.3 | 700 | 147 | 70 | 200 | 8 | 2550 | |||||||||||||||||||||||||||||||
| Y2-400 1-2 | 500KW | 670HP | 2980 | 95.2 | 86.0 | 58.8 | 53.4 | 700 | 164 | 70 | 200 | 12 | 3200 | |||||||||||||||||||||||||||||||
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
