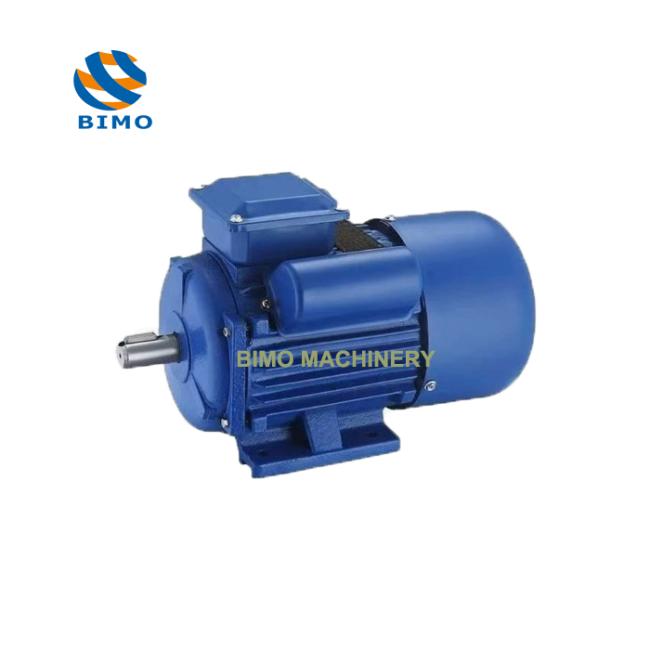

YL132S-4 5KW YL series single-phase asynchronous motor,220V capacitor-run type, high efficiency and reliable operation
YL132S-4 5KW YL series single-phase asynchronous motor,220V capacitor-run type, high efficiency and reliable operation
1, YL series single-phase two-value capacitor asynchronous motors are designed for AC single-phase 220V power supply.
2, This motor adopts double-capacitor design: one starting capacitor and one running capacitor, which provides large starting torque, low starting current and excellent running performance.
3, With advantages of high efficiency, low vibration, long service life and stable operation, it is suitable for driving various small mechanical equipment such as water pumps, blowers, compressors, agricultural machinery and light industrial devices. The motor complies with relevant national standards and can work continuously under rated conditions.
| Model | Power | Current | Power Factor | Eff | Speed | ||||
| (A) | (cos垄) | (%) | (r/min) | locked torque | locked current | Tmax/ | |||
| Rated torque | Rated current | Tn | |||||||
| Hp | kW | Tst/Tn | Ist/In | ||||||
| YL7112 | 1/4 | 0.18 | 1.89 | 0.72 | 60 | 2800 | 3 | 7 | 1.8 |
| YL7122 | 1/3 | 0.25 | 2.4 | 0.74 | 64 | 2800 | 3 | 7 | 1.8 |
| YL8012 | 1/2 | 0.37 | 3.4 | 0.77 | 65 | 2800 | 2.8 | 6.5 | 1.8 |
| YL8022 | 3/4 | 0.55 | 4.7 | 0.79 | 68 | 2800 | 2.8 | 6.5 | 1.8 |
| YL90S-2 | 1 | 0.75 | 6.1 | 0.8 | 70 | 2800 | 3 | 6.5 | 1.8 |
| YL90L-2 | 1.5 | 1.1 | 8.7 | 0.8 | 72 | 2800 | 2.5 | 7 | 1.8 |
| YL90L-2 | 2 | 1.5 | 11.4 | 0.81 | 74 | 2800 | 2.5 | 7 | 1.8 |
| YL100L-2 | 3 | 2.2 | 16.5 | 0.81 | 75 | 2800 | 2.2 | 7 | 1.8 |
| YL100L1-2 | 4 | 3 | 21.88 | 0.82 | 76 | 2800 | 2.2 | 6.8 | 1.8 |
| YL100L-2 | 5 | 3.7 | 26.64 | 0.82 | 77 | 2800 | 2.2 | 6.4 | 1.8 |
| YL112M-2 | 4 | 3 | 21.4 | 0.82 | 76 | 2800 | 2.2 | 7 | 1.8 |
| YL7114 | 1/6 | 0.12 | 1.88 | 0.58 | 50 | 1400 | 3 | 9 | 1.8 |
| YL7124 | 1/4 | 0.18 | 2.49 | 0.62 | 53 | 1400 | 2.8 | 7 | 1.8 |
| YL8014 | 1/3 | 0.25 | 3.11 | 0.63 | 58 | 1400 | 2.8 | 6 | 1.8 |
| YL8024 | 1/2 | 0.37 | 4.24 | 0.64 | 62 | 1400 | 2.5 | 6 | 1.8 |
| YL90S-4 | 3/4 | 0.55 | 5.5 | 0.69 | 66 | 1400 | 2.5 | 6 | 1.8 |
| YL90L-4 | 1 | 0.75 | 6.9 | 0.73 | 68 | 1400 | 2.5 | 6.5 | 1.8 |
| YL90L-4 | 1.5 | 1.1 | 9.6 | 0.74 | 71 | 1400 | 2.5 | 6.5 | 1.8 |
| YL100L-4 | 2 | 1.5 | 12.5 | 0.75 | 73 | 1400 | 2.5 | 6.5 | 1.8 |
| YL112M-4 | 3 | 2.2 | 17.8 | 0.76 | 74 | 1400 | 2.2 | 6.5 | 1.8 |
| YL132S-4 | 4 | 3 | 23.6 | 0.77 | 75 | 1400 | 2.1 | 6.5 | 1.8 |
| YL132S-4 | 5 | 3.7 | 28 | 0.79 | 76 | 1400 | 2.1 | 6.5 | 1.8 |
| YL132M-4 | 7.5 | 5.5 | 32.5 | 0.95 | 81 | 1400 | 2.1 | 6.5 | 1.8 |
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
