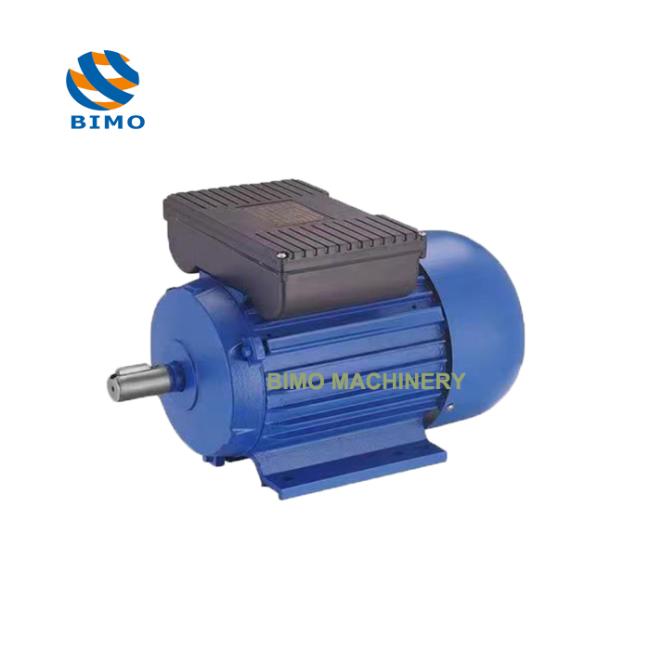

High-performance ML90L-4 1.5kW single phase motor. Adopts aluminum housing and dual-capacitor structure, ideal for pumps, fans and general machinery equipment.

High-performance ML90L-4 1.5kW single phase motor. Adopts aluminum housing and dual-capacitor structure, ideal for pumps, fans and general machinery equipment.

CE Approved ML/YL High Efficiency Single Phase Electric Motor

ML motors are cast aluminum frame YL series capacitor start&capacitor run electric motors,suitable for compressors,pumps and other equipments requiring large starting torque. This series motors with larger starting torque,power factor,efficiency,lower noise,less weightsmall size and convenient maintenace.

General Features

• Type: Capacitor-start & capacitor-run (dual-capacitor)

• Frame: Die-cast aluminum alloy, TEFC (Totally Enclosed Fan Cooled)

• Mounting: IM B3 (foot), IM B5 (flange), IM B14 (small flange)

• Protection: IP54/IP55/IP56

• Insulation: Class B/F; Temp rise Class B

• Duty: S1 (continuous)

• Cooling: IC0141 / IC411

• Ambient: -20°C ~ 40°C; Altitude ≤1000m

✅ Electrical Data (Standard)

• Voltage: 220V/230V/240V (110V/115V/120V on request)

• Frequency: 50Hz (60Hz optional)

• Poles: 2-pole (≈2800rpm), 4-pole (≈1400rpm), 6-pole (≈900rpm)

✅ Power Range (50Hz, 220V)

• Frame H63: 0.12–0.25kW (0.16–0.34HP)

• Frame H71: 0.37–0.55kW (0.50–0.75HP)

• Frame H80: 0.75–1.1kW (1.0–1.5HP)

• Frame H90: 1.5–2.2kW (2.0–3.0HP)

• Frame H100: 3.0kW (4.0HP)

• Frame H112: 3.7–4.0kW (5.0–5.5HP)
