NEMA 56C Frame 3/4HP (0.75HP) 24V DC Permanent Magnet Brushed PMDC Motor, 1750RPM / 1800RPM Variable Speed Brush DC Motor for Industrial Conveyor AGV
NEMA 56C Frame 3/4HP (0.75HP) 24V DC Permanent Magnet Brushed PMDC Motor, 1750RPM / 1800RPM Variable Speed Brush DC Motor for Industrial Conveyor AGV

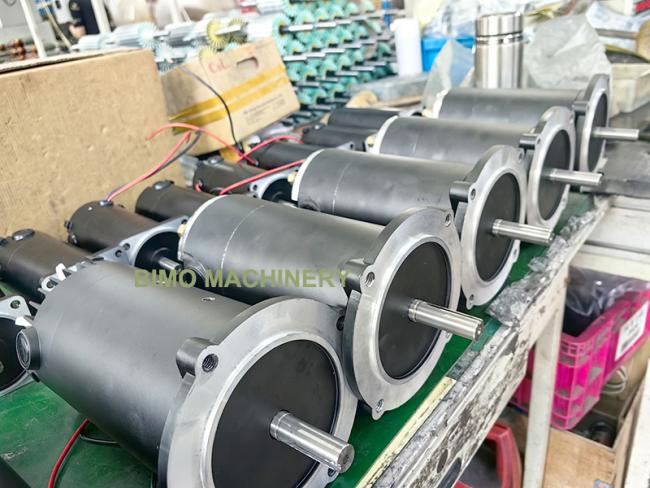

1,This NEMA 56C 3/4HP 24V DC Permanent Magnet Brushed Motor is a high-performance PMDC brushed motor built to NEMA MG1 56C standard mounting dimensions.
2,Rated 0.75HP, 24VDC, 1750/1800 full-load RPM, it delivers constant high torque across wide speed range with reliable carbon brush commutation.
3,Adopt high-energy permanent magnet, Class F insulation, IP54 protection, TEFC/TENV enclosure optional. Standard NEMA 56C C-face flange & removable foot base for direct replacement of all 56C frame motors, widely used in battery-powered mobile equipment, conveyors, packaging machinery and light industrial automation.
| Power(HP) | Speed(RPM) | Arm Volt | NEMA FRAME | ENCL. | Curret(Amp.) | Torque(In.Ibs) | App.Weights(Ibs) | |
| 1/4 | 1750 | 12 | 56C | TEFC | 21.0 | 9 | 21 | |
| 1/4 | 1750 | 24 | 56C | TEFC | 10.5 | 9 | 21 | |
| 1/3 | 1750 | 12 | 56C | TEFC | 27.0 | 12 | 23 | |
| 1/3 | 1750 | 24 | 56C | TEFC | 13.5 | 12 | 23 | |
| 1/2 | 1750 | 12 | 56C | TEFC | 39.0 | 18 | 25 | |
| 1/2 | 1750 | 24 | 56C | TEFC | 20.0 | 18 | 25 | |
| 3/4 | 1750 | 12 | 56C | TEFC | 63.6 | 27 | 30 | |
| 3/4 | 1750 | 24 | 56C | TEFC | 31.8 | 27 | 30 | |
| 3/4 | 3600 | 12 | 56C | TEFC | 63.6 | 13 | 23 | |
| 3/4 | 3600 | 24 | 56C | TEFC | 31.8 | 13 | 23 | |
| 1 | 1750 | 12 | 56C | TEFC | 80.0 | 36 | 32 | |
| 1 | 1750 | 24 | 56C | TEFC | 40.0 | 36 | 32 | |
| 1 | 3600 | 12 | 56C | TEFC | 80.0 | 17.6 | 25 | |
| 1 | 3600 | 24 | 56C | TEFC | 40.0 | 17.6 | 25 | |
| 1.5 | 1750 | 24 | 56C | TEFC | 60.0 | 54.3 | 43 | |
| 1.5 | 3600 | 24 | 56C | TEFC | 60.0 | 26.4 | 30 | |
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
