PVC Coated Rock Basket Wall Reservoir Bank Protection Anti Corrosion Heavy Duty Gabion Baskets

PVC Coated Gabion Basket Reservoir Bank Protection Anti Corrosion CE ISO Certified

Professional Woven Gabion Baskets for Hydraulic Applications

Engineered for demanding water control projects, our heavy-duty woven gabion baskets feature double-twisted hexagonal mesh construction with high-tensile (350-500MPa), corrosion-resistant steel wire (galvanized or PVC-coated). Standard 80×100mm mesh optimally retains 100-250mm stone fill while permitting 95%+ water flow. Ideal for riverbank stabilization, flood walls, coastal defenses, and dam protection. The flexible design withstands 3-5m/s water velocity and accommodates ground movement. Provides superior erosion control with 25+ year lifespan. Custom sizes (1-4m lengths) available for large-scale hydraulic engineering projects.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)

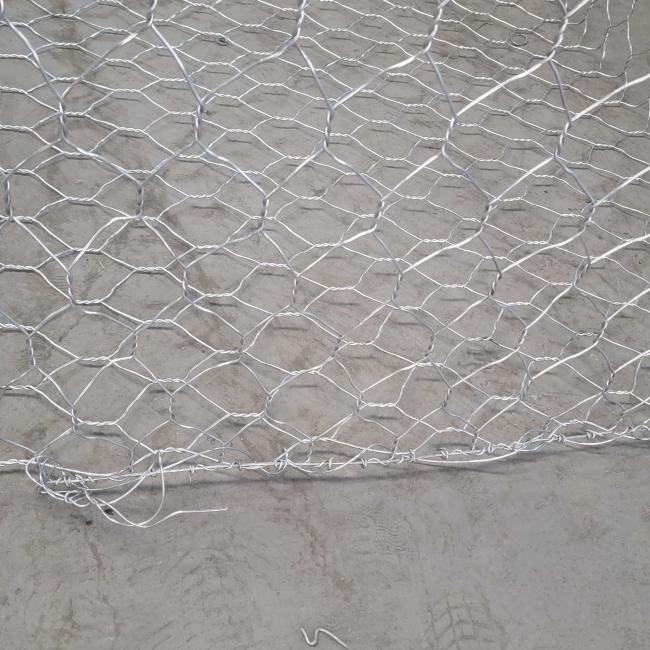

• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
