Woven Gabion Mattress Riverbed Stabilization Erosion Control Heavy Duty Zinc Coated

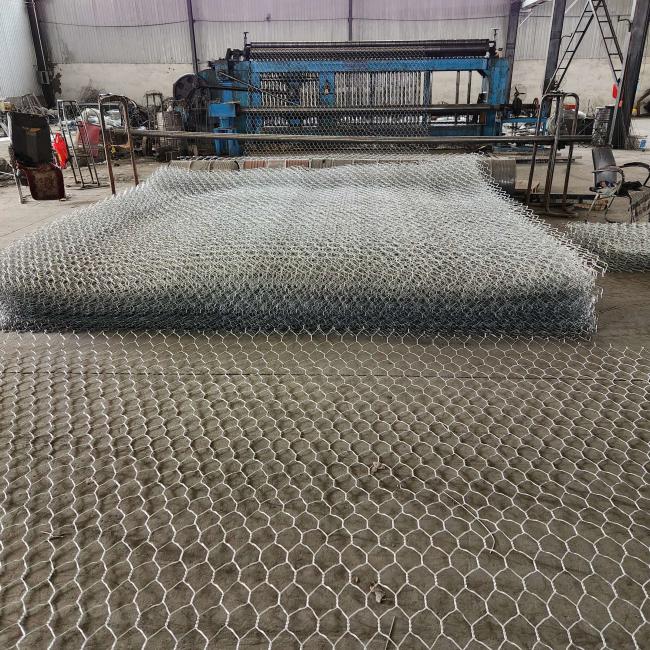

Woven Gabion Mattress for Hydraulic Engineering

Our woven gabion mattresses feature double-twisted hexagonal steel mesh (2.2-3.0mm wire) with heavy galvanization (≥260g/m²) for superior erosion protection in shallow water applications. The low-profile design (150-300mm height) with 60×80mm mesh provides optimal velocity reduction (30-50%) while permitting 90%+ water flow. Ideal for channel lining, riverbed stabilization, and coastal revetments. The flexible structure conforms to uneven surfaces while resisting 4m/s currents. Includes internal diaphragms for stability. Certified to EN 10223-3 standards with 25+ year design life. Custom sizes available for comprehensive hydraulic solutions.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
