Woven Gabion Mattress for Critical Water Projects

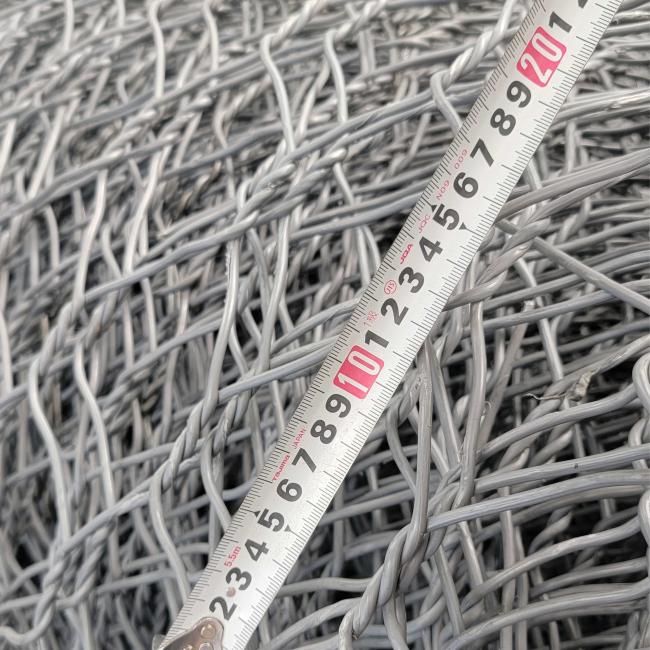

Engineered for hydraulic protection, our heavy-duty woven gabion mattresses feature double-twisted hexagonal steel mesh (2.7-4.0mm) with Class A galvanization (≥245g/m²). The low-profile design (200-500mm thickness) with 80×100mm mesh provides superior erosion control while maintaining 95% permeability. Specifically developed for:
• Riverbank stabilization
• Coastal defense systems
• Canal lining
• Dam toe protection
Key performance:
-
Withstands 5m/s water velocity
-
Reduces flow energy by 40-60%
-
30+ year service life
-
EN 10223-3 certified
Custom configurations available for large-scale water management projects.
Key Features
- Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
- Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
- Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
- Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)
Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation
Applications
- Civil Engineering: Riverbank stabilization, highway embankments
- Architecture: Retaining walls, sound barriers, decorative façades
- Disaster Prevention: Flood control barriers, landslide mitigation systems
- Mining: Tailings dam reinforcement, slope retention
Customization Services
- Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
- Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
- Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
| gabion specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m |
||
