Woven Gabion Wire Mesh Riverbank Armor Heavy Duty Zinc Coated Hydraulic Stability

Woven Gabion Wire Mesh for Water Management

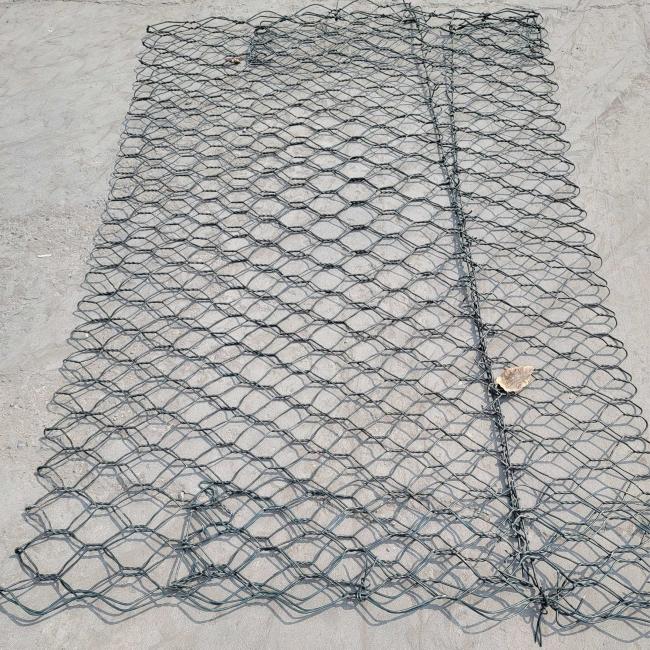

Our double-twisted hexagonal steel mesh (2.2-4.0mm wire diameter) is manufactured for hydraulic engineering applications including riverbank stabilization, coastal protection, and flood control systems. The galvanized or PVC-coated mesh (standard 80×100mm openings) forms flexible yet durable gabion structures when assembled with stone fill. Typical configurations include mattresses (150-300mm thickness) for channel lining and revetments, or boxes (0.5-2m height) for retaining walls. The mesh complies with EN 10223-3 standards and is available in rolls or pre-fabricated panels for efficient installation in various water control projects requiring permeable, erosion-resistant solutions.

Key Features

• Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
• Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
• Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
• Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

• Civil Engineering: Riverbank stabilization, highway embankments
• Architecture: Retaining walls, sound barriers, decorative façades
• Disaster Prevention: Flood control barriers, landslide mitigation systems
• Mining: Tailings dam reinforcement, slope retention

Customization Services

• Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
• Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
• Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
