Heavy Duty Woven Gabion Walls For Hydraulic Projects Erosion Resistant Flood & Riverbank Protection
Heavy-Duty Woven Gabion Walls For Hydraulic Projects - Erosion-Resistant Flood & Riverbank Protection

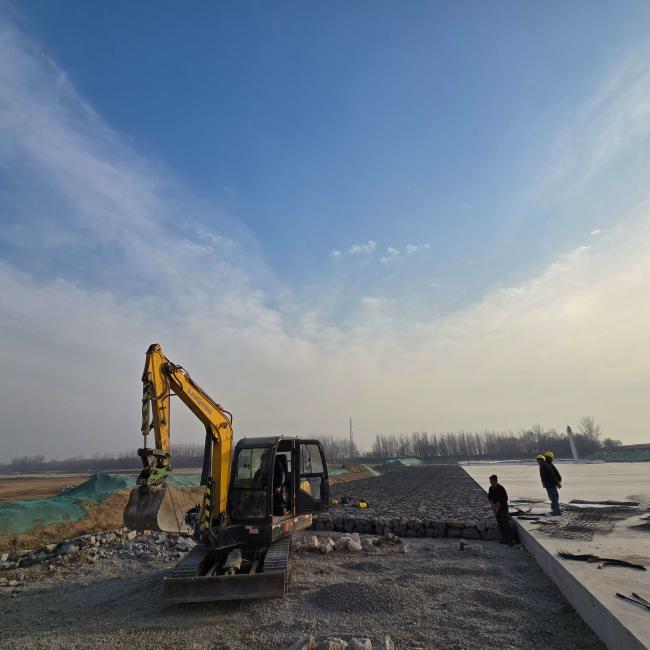

Woven Gabion Wall, made of double-twisted hexagonal galvanized steel wire mesh, serves as a robust retaining structure for hydraulic projects like floodplain embankments, coastal dike reinforcement, and spillway channel lining. Designed to withstand hydrodynamic forces, it provides erosion control in riverbank stabilization, reservoir slope protection, and canal revetments. Compliant with EN 10223-3 standards, standard dimensions (2x1x1m to 4x2x1m) allow rock-filled configurations for load distribution in high-velocity water zones, ensuring integration into levees, breakwaters, and stormwater management systems.
Key Features
- Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
- Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
- Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
- Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)
Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation
Applications
- Civil Engineering: Riverbank stabilization, highway embankments
- Architecture: Retaining walls, sound barriers, decorative façades
- Disaster Prevention: Flood control barriers, landslide mitigation systems
- Mining: Tailings dam reinforcement, slope retention
Customization Services
- Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
- Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
- Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
| gabion specifications | Mesh hole modle | |||||
| 8x10cm | 6x8cm | |||||
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated | ||
| Mesh diameter | Zinc | Mesh diameter | Zinc | |||
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m |
||
