KN 2*2*1m River Dam Protection 275g ZnAl Stone Gabion Cages For Sale
Price:
USD 12-20
MOQ:
1000
Delivery Time:
7
Brand:
KN
Product Description
KN 2*2*1m River Dam Protection 275g ZnAl Stone Gabion Cages For Sale
KN Stone Gabion Cages mainly used in civil construction, such as retaining wall, dam slope protection, flood control retaining wall, sea beach protection, sea filling retaining wall, mostly in government project, peopel use Heavy Zinc Al metal wire, with 80*10cm or 10*12cm mesh hole, Outer Size can be 1*1*1m, 2*1*1m, 2*2*1m etc.
Common Gabion Project Types:

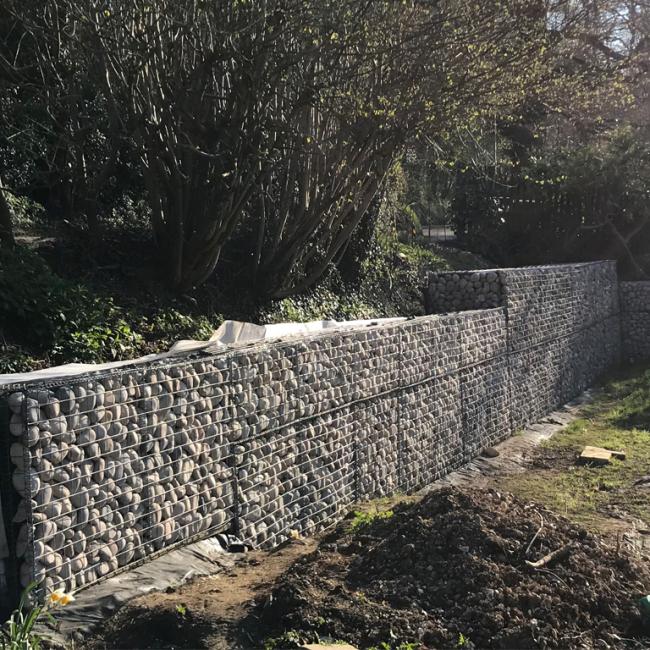

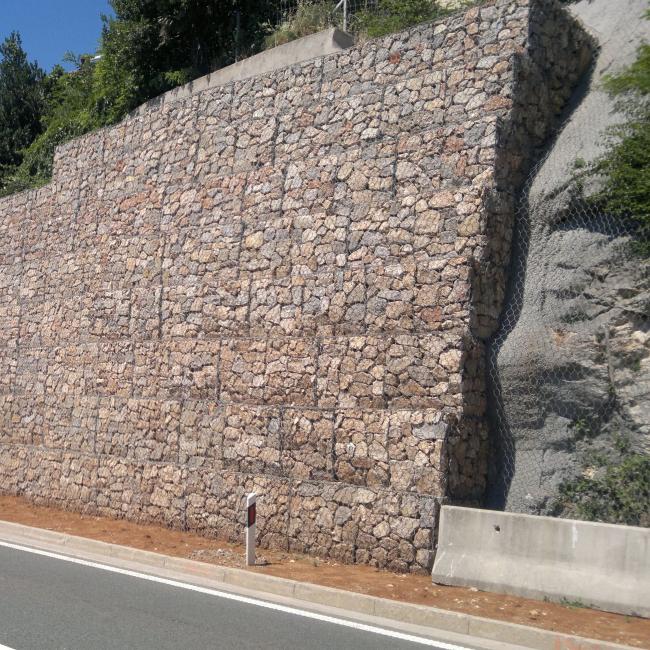

- Retaining Walls: Stabilize slopes, prevent soil erosion, and manage water runoff in gardens, parks, and along roads.
![]()
- Landscape Features: Create raised garden beds, seating, steps, or decorative walls.
![]()

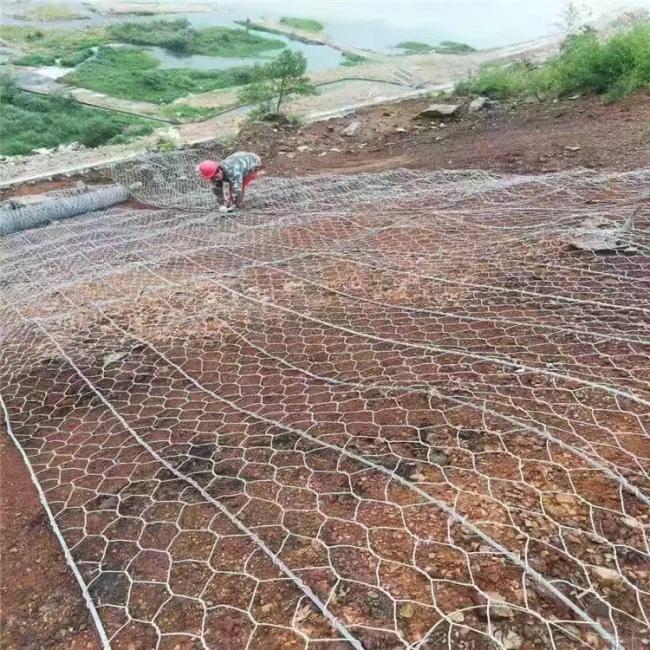

- Erosion Control: Used in streambanks and gullies to slow water flow and protect banks.
![]()
Product Specifications
| Attribute | Value |
|---|---|
| Material | Hexagonal gabion wall, mesh retaining wall galvanized |

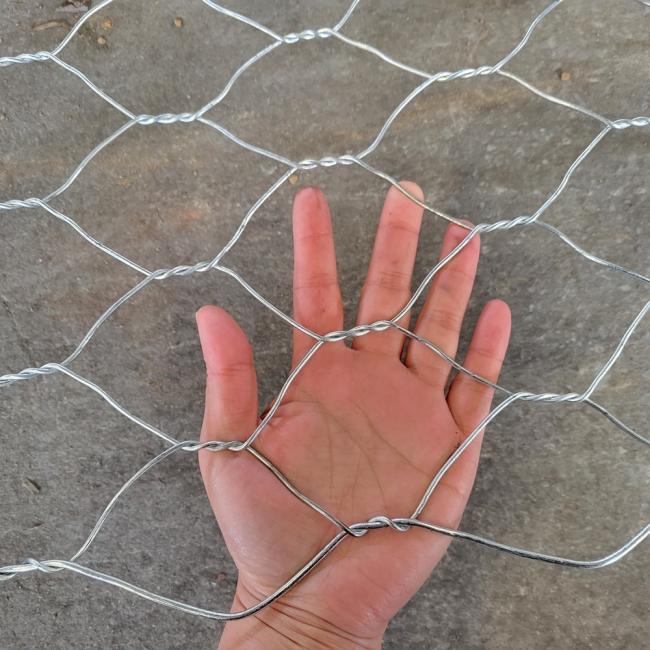

| Hole shape | Hexagonal, Double Twist |
| Wire gauge | 2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm, 2.2mm, 2.0mm |
| Application | Riverbank and Slope Retaining Wall Construction |
| Type | Hexagonal wire mesh, Double Twist |
| Aperture | 80*100mm, 100*120mm, 60*80mm, etc. |
| Surface treatment | Hot Dipped Galvanized, PVC coated, Galvanized+PVC Coated |
| Color | Green, black, Grey |
| Packing | Pallet, Bundle |
| Usage | Flood Control Retaining Wall, Protection |
| Sample | Available |
| Size | 2m*1m*1m, 1x1x0.5m, 4*1*1m, 5*1*1m, Customized |
| Feature | Easily Assembled, less transport freight, Strong and Durable, Simple installation |
| Width | 2' -2m, 0.914m~1.83m, 0.5-2m, 1M |
| Zinc coated | 40-60g, 60g-80g, 270g, 245g |
Standard Gabion Basket Sizes
| Length (M) | Width (M) | Height (M) | Diaphragm | CBM (m³) |
|---|---|---|---|---|
| 1 | 1 | 1 | 0 | 1 |
| 2 | 1 | 1 | 1 | 2 |
| 3 | 1 | 1 | 2 | 3 |
| 4 | 1 | 1 | 3 | 4 |
| 5 | 1 | 1 | 4 | 5 |
| 6 | 1 | 1 | 5 | 6 |
Gabion Mattress Sizes
| Length (M) | Width (M) | Height (M) | Diaphragm | CBM (m³) |
|---|---|---|---|---|
| 1 | 1 | 0.3/0.5 | 0 | 0.3/0.5 |
| 2 | 1 | 0.3/0.5 | 1 | 0.6/1 |
| 3 | 1 | 0.3/0.5 | 2 | 0.9/1.5 |
| 4 | 1 | 0.3/0.5 | 3 | 1.2/2 |
| 5 | 2 | 0.3/0.5 | 4 | 3/5 |
| 6 | 2 | 0.3/0.5 | 5 | 3.6/6 |
Technical Specifications
| Parameter | Description | Typical Value / Range |
|---|---|---|
| Material | Base material used for constructing the mesh | HDP/Galvanized Wire, PVC Wire |
| Coating | Surface treatment for enhanced corrosion resistance | Galvanized, HDP Galvanized, PVC Coated |
| Wire Diameter | The thickness of the wires used in the mesh | Mesh Wire: 2.0~3.05mm Selvage Wire: 2.4~4.0mm Tie Wire: 2.0~2.4mm |
| Mesh Opening Size | The size of the openings between wires | 60*80mm, 80*100mm, 100*120mm, 120*150mm |
| Overall Dimensions | Standard Gabion Roll and Gabion Basket Size | Gabion Roll Width: 1~4m Gabion Basket: 1*1*1m to 6*1*1m |
| Lifespan | Expected service life | 6~20 years (depends on environment) |

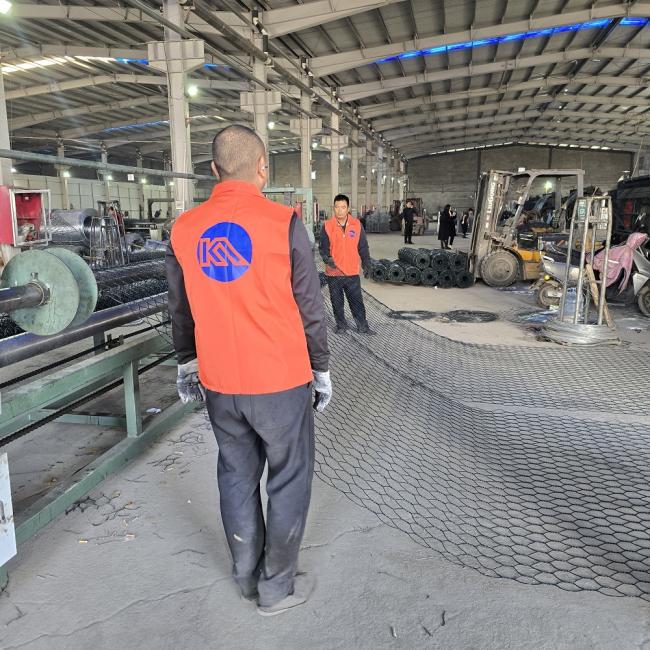

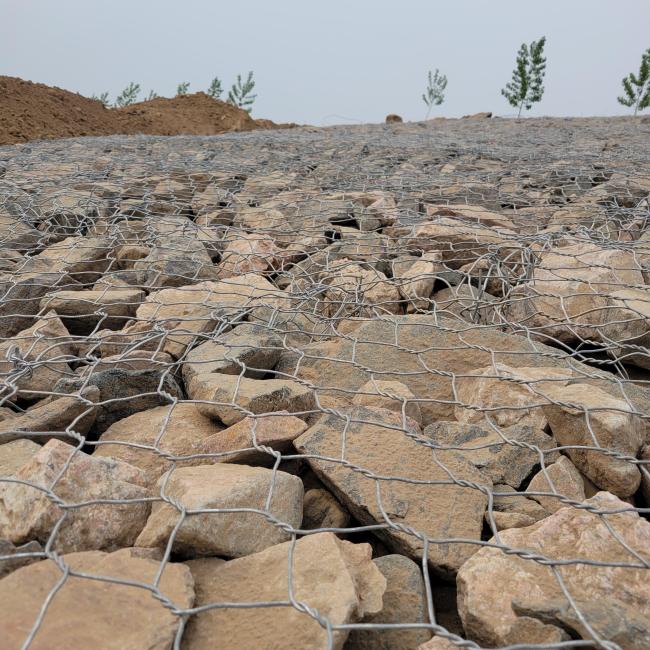

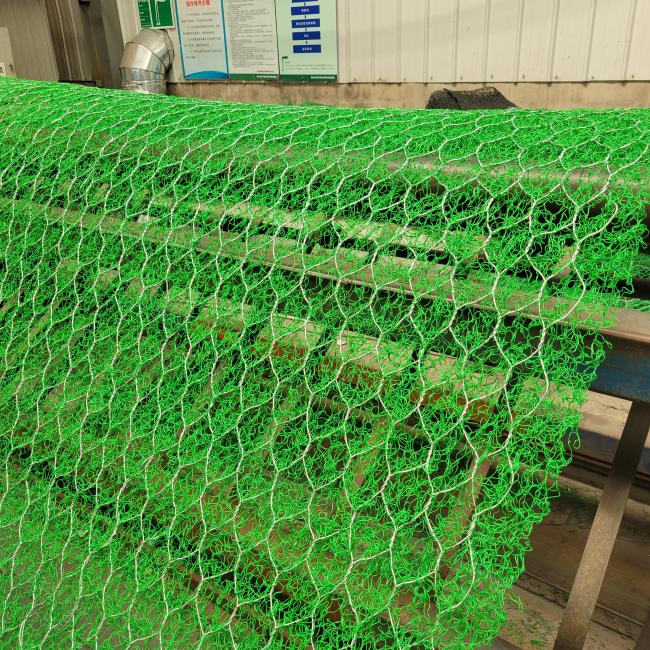

Product Show:
 |
 |
 |
 |
 |
 |

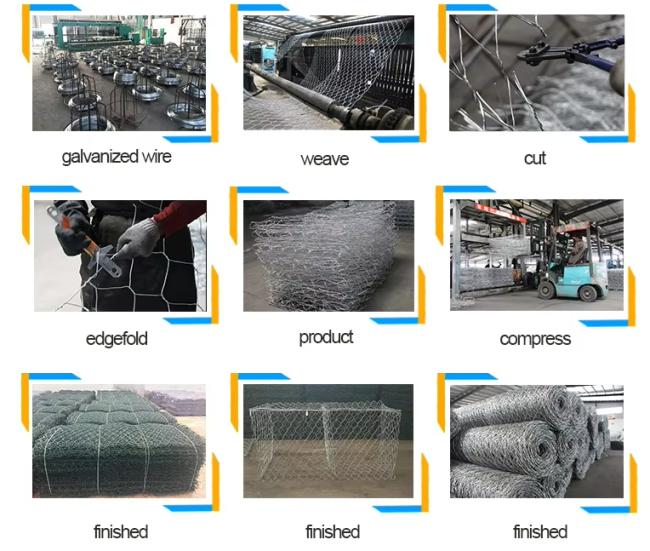

Manufacturing Process

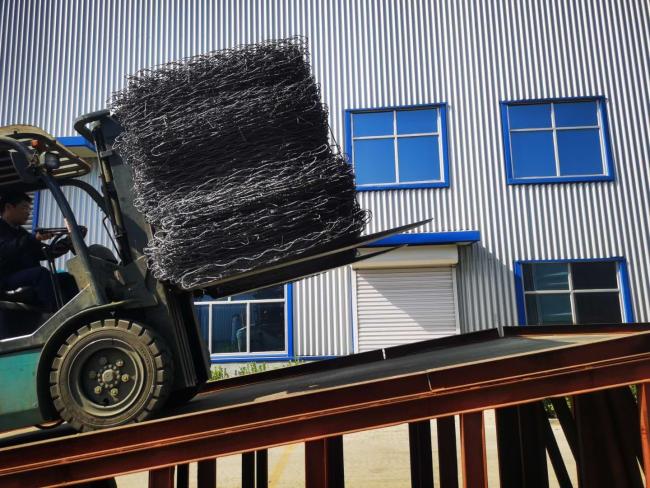

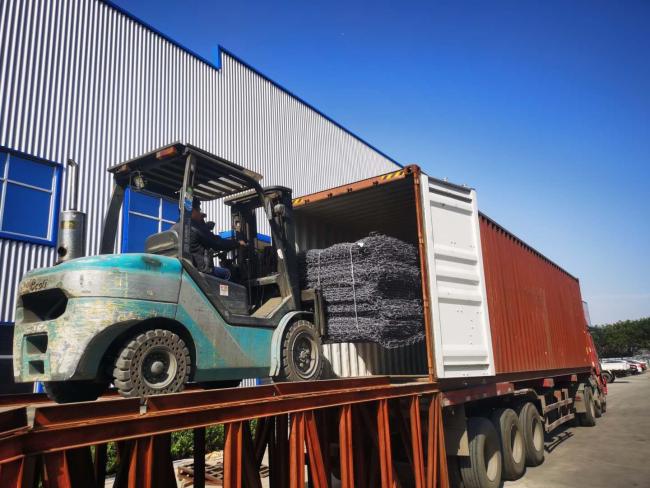

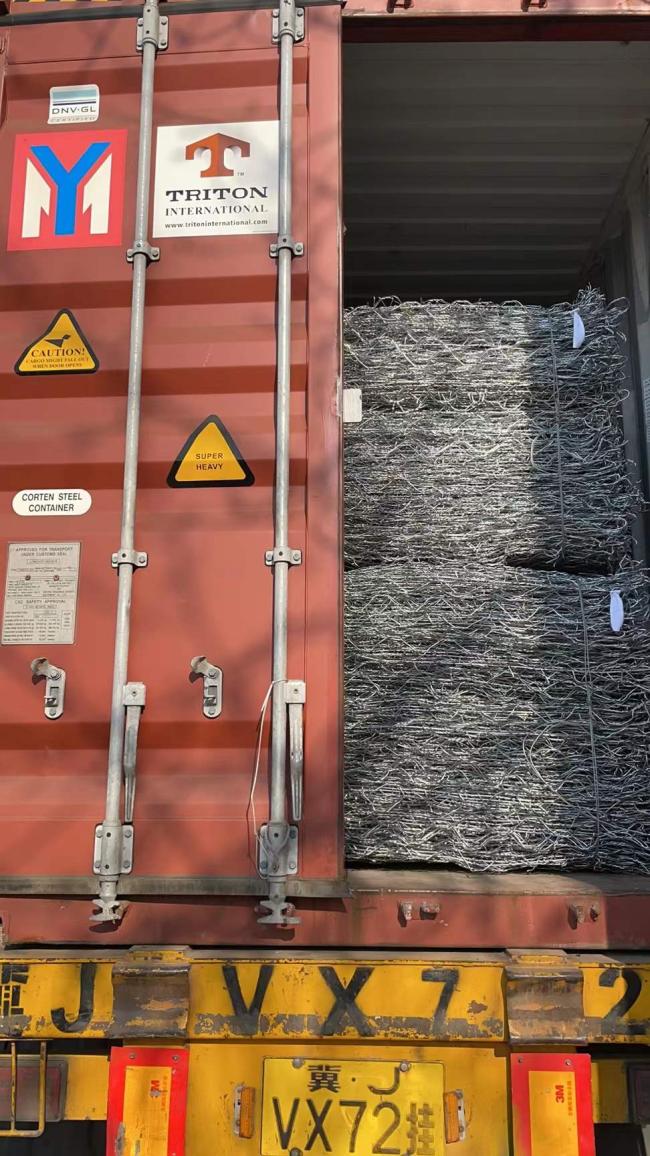

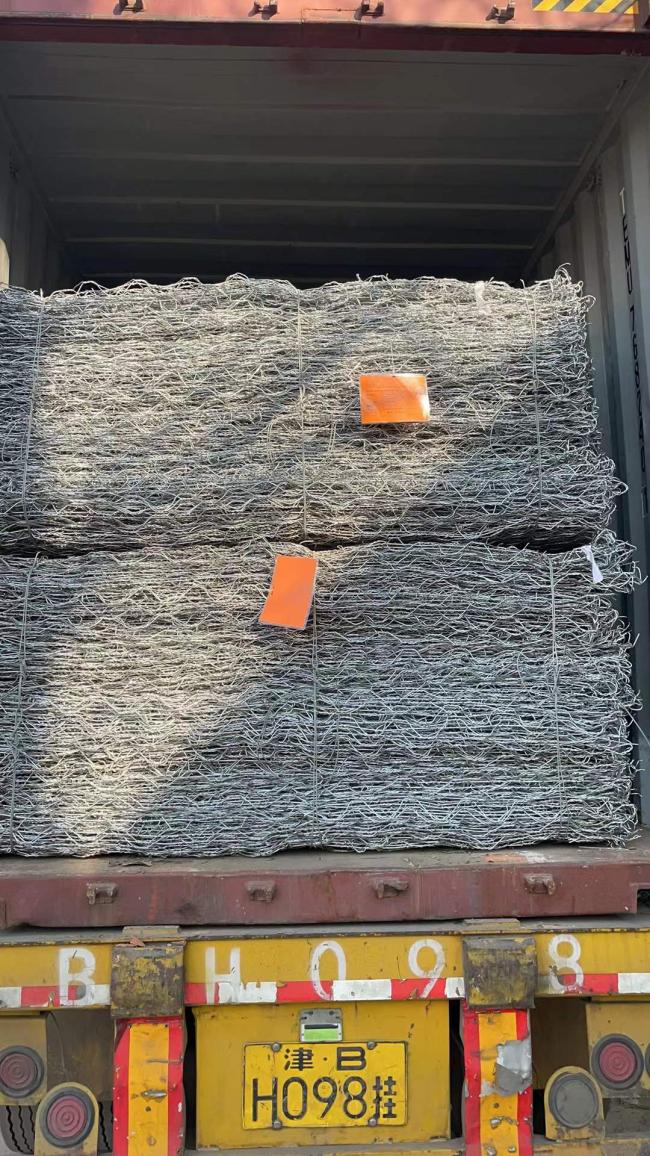

Container Loading
 |
 |
 |
 |
