40dB Extreme Quiet and Energy Saving HVLS Commercial Ceiling Fans for Gym Cooling Maintenance Free
40dB Extreme Quiet and Energy Saving HVLS Commercial Ceiling Fans for Gym Cooling Maintenance Free
Product Description:

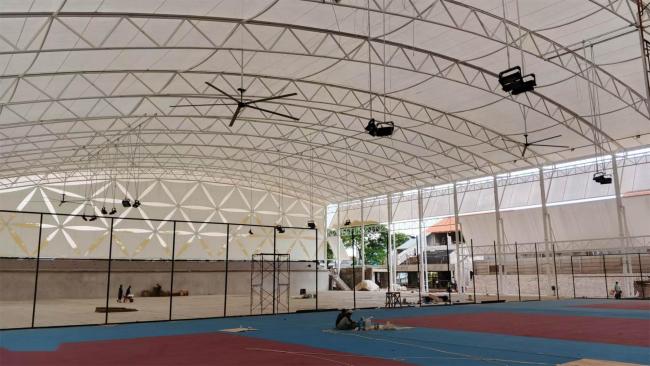

Gymnasium or Basketball Court
Athletes perform better in comfortable environments. Fans help in keeping athletes cool and reducing the risk of heat-related issues during outdoor events or in indoor facilities
Warehouse Ventilation
Maximize Air Circulation with Our Industrial Drum Fans – Reduce Heat & Humidity in Your Warehouse. 3-Phase Motor, 360° Adjustable Tilt, IP65 Rated.
Factory Cooling
High-Velocity Ceiling Fans for Industrial Workplaces – Direct-AC Drive Technology, 20% Longer Lifespan Than Standard Models.
Features:
1. Lower noise level
2. Wider blades
3. Higher air volume
4. More energy efficient
5. Improved air circulation and distribution
Technical Parameters:
|
DIAMETER
|
8ft(2.5m)
|
12ft(3.8m)
|
16ft(5.0m)
|
20ft(6.2m)
|
24ft(7.3m)
|
|
MODEL
|
SFFCA25
|
SFFCA38
|
SFFCA50
|
SFFCA62
|
SFFCA73
|
|
AIR VOLUME
|
6500m³/min | 8600m³/min |
13050m³/min
|
14100m³/min | 15850m³/min |
|
MAXIMUM SPEED
|
140RPM
|
100RPM
|
70RPM
|
60RPM
|
55RPM
|
|
WEIGHT
|
35Kg
|
51Kg
|
75Kg
|
90Kg
|
127Kg
|
|
MOTOR POWER
|
0.3kw
|
0.4kw
|
1.1kw
|
1.1kw
|
1.5kw
|
|
FULL LOAD CURRENT
|
1.8AMPS/220V
|
2.0Amps/380v 2.3Amps/220v
|
2.4Amps/380v 3.2Amps/220v
|
3.0Amps/380v 3.5Amps/220v
|
3.5Amps/380v 5.5Amps/220v
|
Basic technical parameters: Model SFFCA73 (PMSM SERIES)
| No. | Main Configuration | Description | Photo |
| 1 | Motor |
1. Industry's top PMSM motor; Power: 1.5kw; Insulation class: F, 50/60HZ; 2. Energy efficiency rating IE2; Operating noise less than 40dB; 3. No gear box, no oil change, truly maintenance-free; |
|
| 2 |
Electrical control system |
Built-in safety protection module, Control system: Built-in safety protection module, automatically cut off the output in the event of an accident. |
|
| 3 | Blades | Our blade is made of 6063T5 special high-strength aviation magnesium-aluminum alloy material, which is extruded into one piece. |
|
Applications:
Industrial Fan Applications – Key Use Cases
1,Factory & Warehouse Ventilation
2,HVAC System Support
3,Dust & Fume Extraction
4,Drying & Cooling Processes
5,Air Circulation in Large Spaces
6,Tunnel & Underground Ventilation
7,Data Center Cooling
8,Agriculture & Livestock
Support and Services:
The Product Technical Support and Services for the PMSM Series HVLS Industrial Fans include:
- Installation assistance to ensure proper setup and operation of the fan.
- Troubleshooting guidance for any technical issues that may arise during operation.
- Maintenance recommendations to keep the fan running efficiently and prolong its lifespan.
- Warranty support to address any defects or malfunctions covered under the product warranty.
Packing and Shipping:
Each fan is securely wrapped and placed in a sturdy wooden box with ample cushioning material to prevent any damage during transit, and a set of big fans is composed of a square box and a long box.
FAQ:
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: How is your motor’s quality compared with others?
A: High efficiency (85%~89%) is our strength.
Low repair rate (less than 0.08%).
All the motors have passed ISO9000, CE.
Q: Where is the HVLS Industrial Fan manufactured?
A: The fan is manufactured in Wuhan, China.
A: Usually we have stock, delivery time within 7 working days.
If there is customized requirement, time is negotiable.
Q: What other services can you provide?
A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU.
Accepted payment type: T/T, L/C;
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
