Simplex Single Mode G657a Fiber Preconnectorized Drop Cable SC UPC LC UPC
Physical Specifications

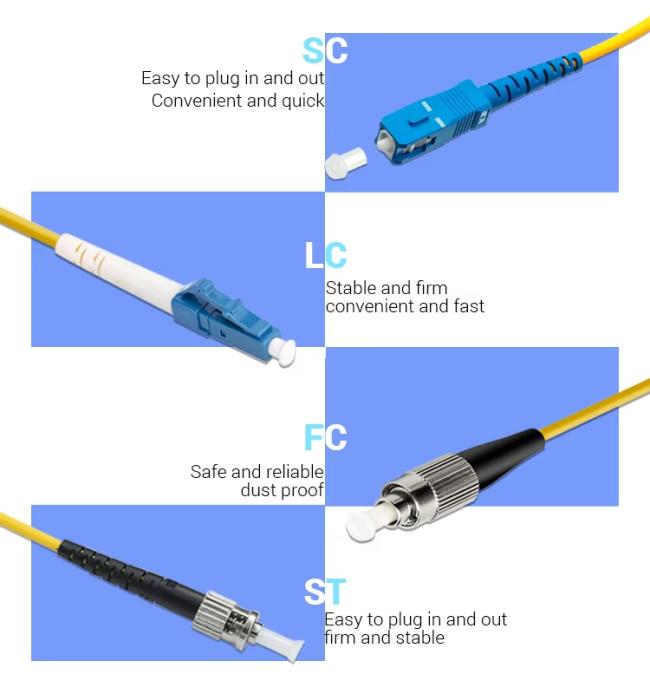

Connector type: LC/SC/FC/ST and other interfaces can be selected to adapt to mainstream equipment;
Core diameter: 9μm (single mode), 50/62.5μm (multimode);
Outer jacket: UV resistance, high temperature resistance (-40℃~+85℃), excellent flexibility, adapting to complex installation environment.
|
BRAND NAME |
HUAXIN or OEM |
|
Fiber Type |
Singlemode/Multimode (optional) |
|
Connector type |
LC/SC/FC/ST (optional) |
|
Wavelength range |
850nm (multimode), 1310nm/1550nm (singlemode) |
|
Transmission rate |
1Gbps~400Gbps (depends on fiber type and equipment support) |
|
Operating Temperature |
-20℃~+70℃ |
|
Tensile strength |
≥1000N |
|
Sheath material |
LSZH |
|
Product color |
black, white (can be customized) |
|
Number of fiber cores |
single, dual or multi-core |
Detailed display

Company Profile
Certification standards
Packing and Transportation
- The goods are packed in one or more pieces per PE bag, and the text description is glued on the bag.
- The outside is packed in standard cartons with dimensions of 32.5*32.5*39.5cm, the quantity of each carton depends on the diameter and length of the products.
- Each carton can contain 27 or 36 cases per pallet.
- Freight transportation is available by FEDEX, DHL, UPS, TNT and so on. International express includes air and sea transportation.
- OEM Service avaiable for mass quantity, can print your logo on bags
