2~12 Core aerial Fiber Optic Cable Outdoor Armored Loose Tube Figure 8 Gyxtc8s
2~12 Core Aerial Fiber Optic Factory Supply Outdoor Armored Loose Tube Figure 8 Gyxtc8s Fiber Optic Cable

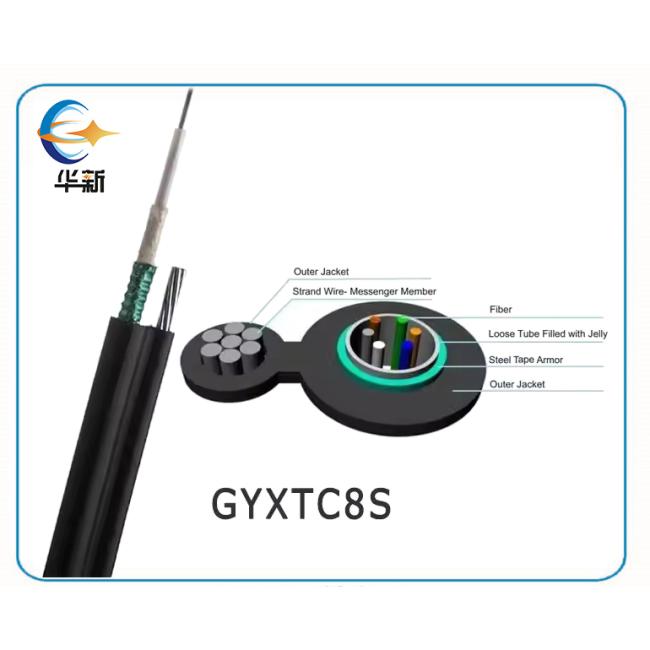

The structure of the GYXTC8S cable consists of a 250 μm optical fiber encased in a loose tube made of high-modulus material, which is filled with a waterproofing compound. The loose tube is wrapped with a layer of double-sided plastic coated steel tape (PSP) longitudinally, and water-resistant material is added between the steel tape and the loose tube to ensure the compactness of the fiber optic cable and the longitudinal water-resistance, and the steel wire strand is integrated into a figure-of-eight polyethylene sheath.
Basic Info.
Characterstic
Low insertion loss, high return loss.
Excellent mechanical endurance.
High credibility and stability.
Good in repeatability and exchangeability.
100% Insertion, Return Lossz End Face and Interference inspection.
Features
It controls the extra length of the optical fiber precisely to ensure the goodperformance of stretch-proof and environmental characteristic of the opticalcable.
The double side plastic-plated steel tape provides an excellent of moisture proofand side compression resistance.
The Zn-plated steel stranded wire ensures the anti-stretch intensity, which isrequired by the self-supporting cable installation.
The cable is application the self-supporting aerial wiring with the span of 100m or below. It provides a more efficient construction, and saves the hanging linesand cable drop hangers at the same time.
Product Performance
| Fiber count | 2~12 | |
| Loose tube diameter (mm) | 2.5/1.8+/0.05 | |
| Steel wire diameter (mm) | Depends on tensile strength | |
| Cable height (mm) | 12.5+/0.8 | |
| Tensile strength (N) | According to demand of design | |
| Crush Resistance (N/100MM) | Long term | 300 |
| Short term | 1000 | |
| Bending Radius (MM) | Dynamic | ≥20 * Cable diameter |
| Static | ≥10 * Cable diameter | |
| Operating Temperature (ºC) | -40~+60 | |
| Application | Aerial | |
Technical Parameters
|
Model |
Fiber Count |
Steel wire Diameter (mm) |
Weight (kg/km) |
Tensile Strength Long /Short term N
|
Crush Resistance N/100mm
|
Bending Radius Static/ Dynamic mm
|
|
GYXTC-8Y-2 |
4 |
1.6 |
47 |
400/1000 |
1000/2000 |
10D/20D |
|
GYXTC-8Y-6 |
6 |
1.6 |
47 |
400/1000 |
1000/2000 |
10D/20D |
|
GYXTC-8Y-8 |
8 |
1.6 |
47 |
400/1000 |
1000/2000 |
10D/20D |
|
GYXTC-8Y-12 |
12 |
1.6 |
47 |
400/1000 |
1000/2000 |
10D/20D |
Packaging & Delivery
Cable in stock, ship same day.
1 or 2km for a wooden roll.
One roll packed with carton.
Other length is also avaiable without MOQ.
Factory & Production
Certifications
Exhibitions
FAQ
1. Are you real manufacturer?
Yes, our factory is located in Shandong, China,
2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself.
3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity.
4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.
5.Do you have warranty for your products?
Yes,-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands
