GYTC8S Aerial Self Supporting Fiber Optic Cable Unitube 2 6 12 24 Core

Price Negotiable
Price: $0.36/M
MOQ: 2000M
Delivery Time: 7-14work days
Brand: Huaxin or OEM
Product Description

GYTC8S Aerial Self-Supporting Unitube 2 6 12 24 Core Outdoor Optic/Optical Fiber Cable

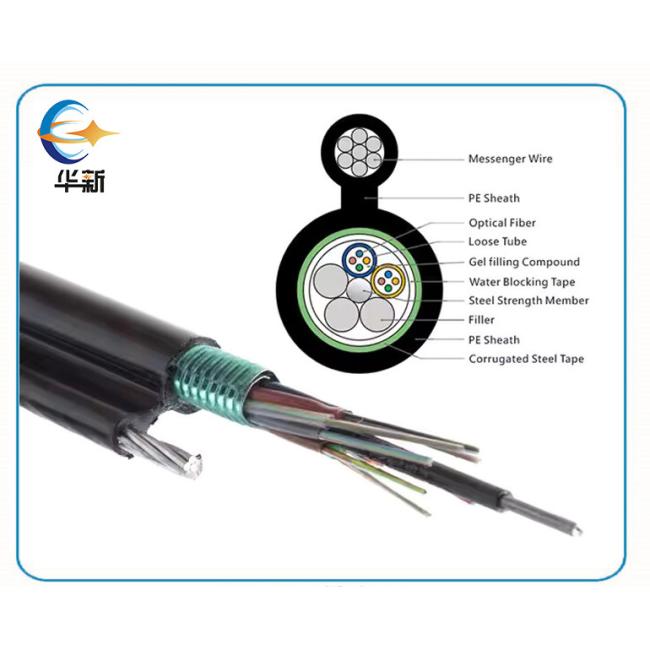

OM1,OM2,OM3,OM4 multimode or OS1/OS2 (ITU-T G.652D) singlemode 250um fibers are positioned in a PBT loose tube. Tubes & Fillers (If necessary) are standed around a steel wire or FRP central strength member into a compact and circular cable core.The Corrugated Steel Tape (CST) is longitudinally applied over the cable core. The cable is completed with Polyethylene (PE) jacket.

FEATURES & APPLICATIONS


Corrugated steel tape armoring for water & rodent resistance, optimised impact and crush resistance
Stranded steel wires, easily to install
Suitable for outdoor aerial applications


ORDERING INFORMATION


Choice of fibers: 2 to 144 fibers, OS1/OS2/OM1/OM2/ OM3/OM4
Sheath: PE
Drum Length: 2/3/4km  (Optional)



Basic Info.

Model NO.
GYTC8S
Connection Structure
All Kinds of Conectors
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
2-144 Cores
Certification
CE,TLC,ISO9001
Brand
OEM
Sheath Material
HDPE
Package
1~5km/Roll
Tube
Central Loose Tube
Fiber Type
G657, G652D
Bending Radius
Static 10*Cable-Diameter
Transport Package
Drum
Trademark
Huaxin/OEM
Origin
China
HS Code
8544700000

Packaging & Delivery

Package Size
80.00cm * 80.00cm * 70.00cm
Package Gross Weight
206.000kg




               G.652

G.655

50/125μm

62.5/125μm



Attenuation

(+20ºC)

@850nm





3.0 dB/km

3.0 dB/km

@1300nm





1.0 dB/km

1.0 dB/km

@1310nm

0.36 dB/km

0.40 dB/km





@1550nm

0.22 dB/km

0.23dB/km





Bandwidth (Class A)

@850nm





500 MHz·km

200 MHz·km

@1300nm





1000 MHz·km

600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength

1260nm

1480nm







Packing and Transportation

Cable in stock, ship same day.

1 or 2km for a wooden roll.

One roll packed with carton.

Other length is also avaiable without MOQ.
