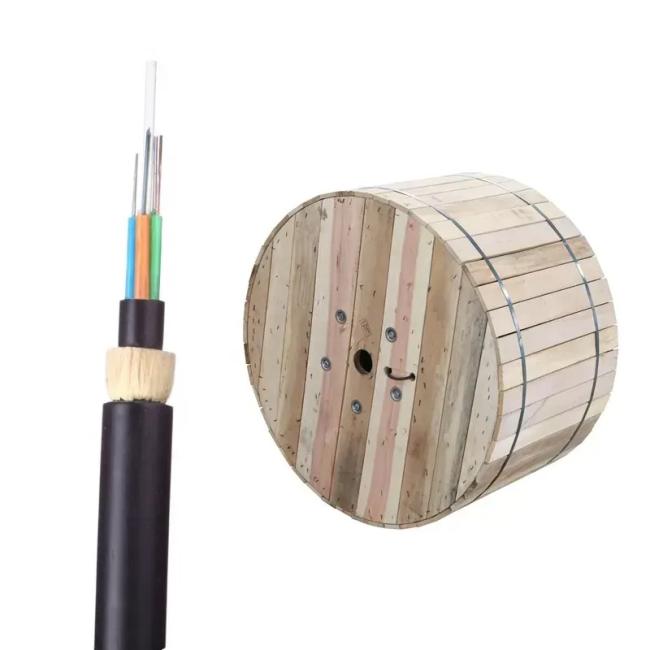

OEM Outdoor Fiber Optical Cable JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables
Price:
$0.25/M
MOQ:
2000m
Delivery Time:
7-14work days
Brand:
Huaxin or OEM
Product Description
High Quality OEM Outdoor Fiber Optic Cable Factory Price JET 1-24 Cores G652D G657A OM1 OM2 OM3 OM4 Communication Cables
The fibres, 250um, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. Thetubes are filled with a water-resistant filing compound. A layer of aramid yarn is applied around the cable core as additionastrength member. Then, the cable is completed with a black or color HDPE sheath.
| Features | |||||||
| •Good mechanical and temperature performance | |||||||
| •Aramid reinforcing elements provide excellent tensile properties for fiber optic cables. | |||||||
| •Special tube filling compound ensure a critical protection of fiber | |||||||
|
•High optical fiber assembly density, small cable diameter and light weight make it the best choice for air blowing. •Applicable for short span aerial installation |
|||||||
Requirement for Order |
|||||||
| (1) Fiber sort: Single mode:G652D,G657A1, G657A2, Multi mode:OM1,OM2,OM3,OM4. | |||||||
| (2) Fiber brand: YOFC, Corning, Fiberhome,Fujikura,OFS etc. | |||||||
| (3) Jacket material: PE,LSZH ( can be required). | |||||||
| (4) The fiber and tube color: according to stranded color, can be required. | |||||||
| (5) Length of cable: generally is 2KM/drum, can be required. | |||||||
| (6) Other requirement: can be negotiated. | |||||||
| Fiber optical Characteristic (after cable) | |||||||
| Fiber type | Attenuation | Bandwidth | Effective modal bandwidth | 10 Gb/s Link Length | |||
| Conditions | 1310/1550nm | 850/1300nm | 850/ | 850nm | 850nm | ||
| Typical | Maximum | Typical | Maximum | 1300nm | |||
| Unit | dB/km | dB/km | dB/km | dB/km | MHz.km | MHz.km | m |
| G652D | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| G657A1 | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| G657A2 | 0.4/0.3 | 0.5/0.4 | / | / | / | / | / |
| G657B3 | 0.5/0.4 | 0.6/0.5 | / | / | / | / | / |
| 62.5/125 | / | / | 3.5/1.0 | 3.5/1.5 | ≥160/500 | / | / |
| 50/125/ | / | / | 3.0/1.0 | 3.5/1.5 | ≥200/500 | / | / |
| OM1 | |||||||
| 50/125/ | / | / | 3.0/1.0 | 3.5/1.5 | ≥500/500 | / | / |
| OM2 | |||||||
| OM3-150 | / | / | 3.0/1.0 | 3.5/1.5 | ≥700/500 | ≥950 | 150 |
| OM3-300 | / | / | 2.5/0.8 | 3.0/1.0 | ≥1500/500 | ≥2000 | 300 |
| OM4-550 | / | / | 2.5/0.8 | 3.0/1.0 | ≥3500/500 | ||
Industry-specific attributes
Brand Name
Huaxin or OEM
Other attributes
Model Number
JET
Type
Outdoor Fiber Optic Cable
Place of Origin
Shandong, China
Number of Conductors
6
Product name
JET Outdoor Cable
Application
Outdoor Using
Strength Member
Steel
Fiber Count
2-24 Cores
Jacket Color
Black Color
Fiber Model
G652D/G657A1/G657A2
High Lihgt
Fast Transmission
Jacket Material
PE/MDPE/HDPE
Packaging Details
wooden drum/wooden reel
Warranty
10 Years
Packaging and delivery
Selling Units:
Single item
Single package size:
20X20X15 cm
Single gross weight:
2.000 kg
Lead time
| Quantity (meters) | 1 - 2000 | > 2000 |
| Lead time (days) | 7 | To be negotiated |
Customization options
Customized logo (Min. order: 50,000 meters)
Packaging & Shipping
Factory & Production
Certifications
Exhibitions
FAQ
1. Are you real manufacturer?
Yes, our factory is located in Shandong, China.
2. Can you provide the samples?
Yes, Samples free of charge, but freight necessary to bear yourself.
3. What is the delivery time?
It takes 3-5 days for the samples, 7-15 days for the bulk production. It depends on the order quantity.
4. Can you supply customized products and logo? (OEM/ODM)
Yes, we can provide the OEM/ODM, please feel free to let us know your requirements.
5.Do you have warranty for your products?
Yes,-There are 10 years for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
