Portable MAX Raycus JPT Fiber Laser Marking 20W 30W 50W Desktop Laser Engraver Machine
Price:
Negotiable
MOQ:
1
Delivery Time:
5-7 days
Brand:
JPTECH
Product Description
Portable Fiber Laser Marking Machine JPT MAX Raycus 20W 30W 50W Desktop Style Laser Engraving Machine
Market-Leading Upgrades
* IoT Integration: Remote monitoring and control via smart devices.
* Enhanced Safety: Smoke purifiers for eco-friendly operation.
* High-Power Options: MOPA lasers up to 500W for ultrafast marking on stainless steel/plastics.
* Precision Cooling: Water/air cooling systems for extended laser lifespan.
* IoT Integration: Remote monitoring and control via smart devices.
* Enhanced Safety: Smoke purifiers for eco-friendly operation.
* High-Power Options: MOPA lasers up to 500W for ultrafast marking on stainless steel/plastics.
* Precision Cooling: Water/air cooling systems for extended laser lifespan.

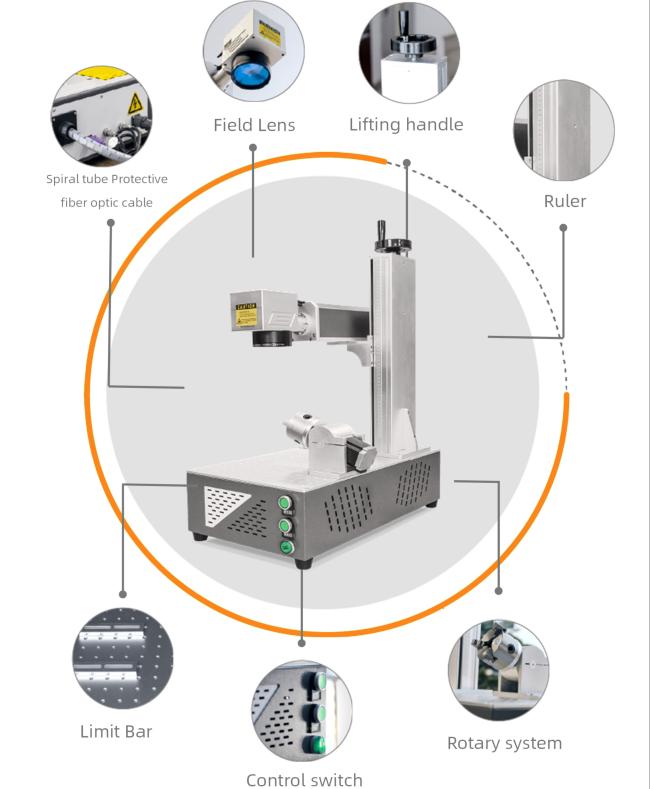

Key features of fiber laser marking engraving machine
一,Durable & Portable Design
- Shell made of multi-layer anti-rust coated sheet metal, ensuring long-lasting durability and resistance to corrosion.
- Compact and lightweight, designed for easy transportation and on-site use
二,Efficient Cooling & Continuous Operation
-
Triple-side exhaust system paired with industrial chillers enables 24/7 continuous operation without overheating.
三,Versatile Laser Source
- Choose from a range of laser sources including Fiber, CO2, UV, MOPA, and Green lasers, tailored to suit diverse material processing needs.
四,Advanced Optical System
- Galvanometer: Dual motors and reflective lenses ensure high-speed, accurate laser deflection.
- Field Lens: Standard 200x200mm marking area (customizable for depth/size adjustments).
五,Adjustable Design
- Motorized Column with Ruler: Precise vertical focus adjustment via a knob or electric uprights.
- Modular Worktable: Aluminum profile base with equidistant screw holes for flexible fixture placement.
Customization & Software
- Multi-Language Support: Software supports 14+ languages (English, Chinese, Spanish, Arabic, etc.).
- Branding Services: Customizable boot animations and marking software for agents.
- Accessories: Optional 2D/3D worktables, rotary shafts (60mm/80mm), cutting tables, multi-station systems.
| Key Benefits | Small dimension easy to move |
| Working Area | 100*100mm / 50-300mm |
| Table Type | 2D or 3D Worktables, Rotary Shaftsfor, Multi-station Systems, Cutting Tables, etc |
| Laser Power Supply | MAX/RAYCUS/IPG/JPT/etc |
| Marking Line Speed | ≤7000mm/s |
| Minimum Line Width | 0.02mm |
| Min. Character | 0.15mm |
| Repeatability Accuracy | ±0.001mm |
| Unit Power | ＜0.5kw |
| Working Voltage | 120V, 220V, 110V, 240V, Customize |
| Graphic Format | DXF, PLT, AI, AMP, JPG, etc. |
Our laser source type
| Mode | Fiber Laser | MOPA Laser | CO2 Laser | UV laser | Green Laser |
| Application | Metal: steel, brass, copper, gold, sliver | Mark Color on Stainless Steel, Mark White on Black Plastic |
Non-metal: wood, paper, plastic, leather |
Precision marking of all material surfaces |
3D engraving inside the crystal |
| Laser Power | 20w, 30w, 50w, 60w, 70w, 80w, 100w, 200W |
20w, 30w, 60w, 80w, 100w, 120w, 150w, 200w, 350w, 500w |
30w, 40w, 60w, 80w, 100w |
3w, 5w, 7w, 10w, 12w, 15w | 3w, 5w |
| Cooling Mode | Air Cooling | Air Cooling or Water Cooling | Air Cooling or Water Cooling | Water Cooling | Water Cooling |
