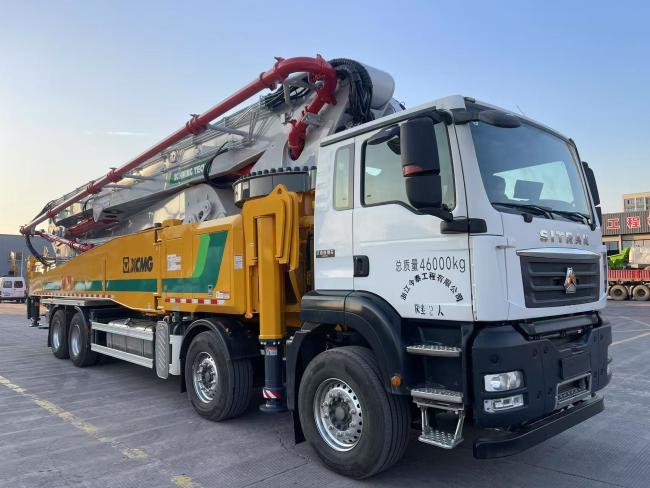

XCMG 62m Concrete Pump Truck with Sitrak Chassis Original 2025
XCMG 62m Concrete Pump Truck Description
The XCMG 62m Concrete Pump Truck is a high-performance, truck-mounted concrete pump designed for efficient and reliable concrete placement in construction projects. With a 62-meter boom reach, it is ideal for high-rise buildings, bridges, and large-scale infrastructure projects, offering superior pumping capacity, stability, and advanced control systems.
Specifications & Dimensions
| Overall Dimensions (L×W×H) | mm | 14,515 × 2,550 × 4,000 / 14,500 × 2,550 × 4,000 |
| Fuel Type | - | Diesel |
| Emission Standard | - | China VI (National Standard VI) |
| Displacement / Max. Net Power | L/kW | 10.518 / 324 |
| Steering Type | - | Steering Wheel |
| Number of Axles | - | 4 |
| Wheelbase | mm | 1,950 + 4,500 + 1,400 |
| Leaf Spring Configuration (Front/Middle/Rear) | - | 11/11/5 |
| Tire Specification | - | 385/65R22.5, 315/80R22.5 |
| Track Width (Front/Rear Axle) | mm | 2,110 / 1,830 |
| Number of Tires (Excluding Spare) | - | 12 |
| Curb Weight | kg | 43,870 |
| Front Axle | kg | 17,870 |
| Middle & Rear Axle | 26,000 | |
| Maximum Gross Weight | kg | 46,000 |
| Front Axle | kg | 20,000 |
| Middle & Rear Axle | kg | 26,000 |
| Cab Seating Capacity | Persons | 2 |
| Approach/Departure Angle | ° | 19° / 10° |
| Front/Rear Overhang | mm | 1,492 / 3,385 |
| Front/Rear Extension | mm | 0 / 1,788 |
| Maximum Speed | km/h | 90 |
| Minimum Ground Clearance | mm | 260 |
| Maximum Gradeability | % | 20% |
| Fuel Consumption per 100 km | L/100km | ≥40 |
| Chassis | Model | ZZ5466V516MF1 |
| Category | Type II | |
| Manufacturer | Sinotruk Jinan Commercial Vehicle Co., Ltd. | |
| Engine | Model | MC11.44-60 |
Key Features
1. Boom System
-
Boom Length: 62 meters (203 feet) – 5-section fully articulated boom.
-
Boom Flexibility: 360° rotation with multi-axis movement for precise concrete placement.
-
Boom Material: High-strength steel for durability and lightweight design.
-
End Hose Length: 3 meters for extended reach and maneuverability.
2. Pumping System
-
Theoretical Pumping Capacity: Up to 170 m³/h (varies by model).
-
Maximum Concrete Pressure: 8.3 MPa (high-pressure pumping for long-distance delivery).
-
Piston Diameter: 230 mm (ensures smooth concrete flow).
-
S-Valve Design: Reduces wear and enhances sealing for abrasive concrete mixes.
3. Hydraulic System
-
Closed-Loop Hydraulics: Ensures smooth operation and energy efficiency.
-
Intelligent Pressure Control: Automatically adjusts pumping pressure based on demand.
-
Emergency Shutoff: Safety mechanisms prevent overpressure and system damage.
4. Safety Features
-
Automatic Boom Stabilization: Prevents tipping during operation.
-
Overload Protection: Sensors detect excessive load and adjust operation.
-
Emergency Stop: Instantly halts pumping in case of a malfunction.
5. Applications
-
High-rise buildings (20+ floors)
-
Bridges & tunnels
-
Industrial plants & dams
-
Large-scale commercial & residential projects
Advantages of XCMG 62m Concrete Pump Truck
✔ High Reach & Efficiency: 62m boom minimizes the need for manual labor in high places.
✔ Reliable Performance: XCMG’s proven technology ensures durability in tough conditions.
✔ Fuel-Efficient Operation: Optimized hydraulics reduce operating costs.
✔ Easy Maintenance: Centralized lubrication points and accessible components.
✔ Global Compliance: Meets international standards (CE, ISO, etc.) for safety and performance.
