Zoomlion 56m Concrete Pump Truck with Benz Chassis Used 2018 Hotselling Cement Truck

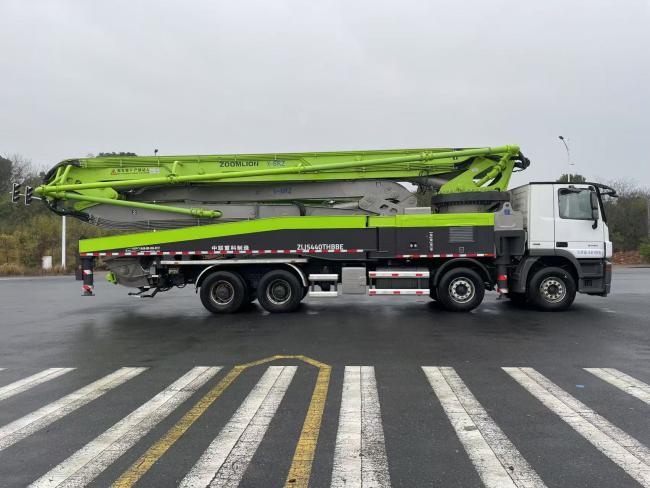

Zoomlion ZLJ5440THBBE 56m Concrete Pump Truck Used 2018
The Zoomlion ZLJ5440THBBE 56m Concrete Pump Truck is a high-performance, truck-mounted boom pump designed for efficient and precise concrete placement in large-scale construction projects, including high-rise buildings, bridges, and industrial complexes. Built on a robust chassis and equipped with advanced pumping technology, this model delivers superior reach, power, and reliability while complying with stringent emission standards.
Key Technical Specifications
| Parameter | Unit | Value |
|---|---|---|
| Maximum Theoretical Output | m³/h | 180 |
| Maximum Concrete Output Pressure | MPa | 11.3 |
| Rated Working Pressure | MPa | 42 |
| Pumping Frequency | min⁻¹ | 26 |
| Concrete Cylinder (Bore×Stroke) | mm | Φ260×2100 |
| Structural Configuration | / | 56X-6RZ |
| Maximum Distribution Range (Height/Radius/Depth) | m | 56/51/40.47 |
| Outrigger Span (Front×Rear×Longitudinal) | mm | 9590×12850×10720 |
Minimized Boom Vibration
-
Active Damping Technology for All Positions & Working Conditions
Reduces end-hose amplitude to ±0.2 meters, ensuring exceptional stability during operation.
High Structural Reliability
-
Rigorously tested on professional dynamic load fatigue test benches
Boom and chassis main structures verified for 8-year service life or 450,000 cubic meters of concrete pumping. -
Through-shaft design + externally mounted linkage mechanism
Minimizes lateral sway while delivering exceptional strength, rigidity, and operational safety.
Fuel-Efficient Performance
-
Equipped with Adaptive Power Adjustment Technology
Automatically optimizes engine load to maintain peak fuel efficiency, achieving an industry-leading consumption rate of just 0.4~0.5L per cubic meter of concrete pumped.
