Used 2020 Zoomlion 52m Concrete Pump Truck (scania 3-axle Chassis) In Good Condition immediate Delivery | High-performance Design
Key Features & Configurations
| Category | Specification |
|---|---|

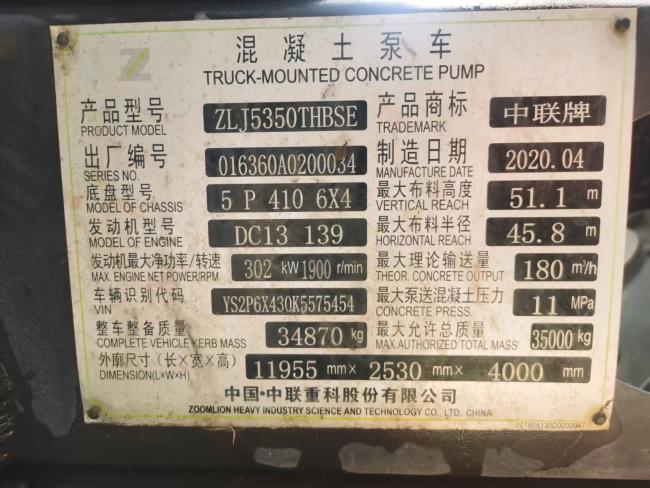

| Model | ZLJ5350THBSE |
| Complete Vehicle Kerb Mass | 34870kg |
| Max Authorized Total Mass | 35000kg |
| Dimension (L*W*H) | 11955*2530*4000mm |
| Boom Length | 52 meters |
| Vertical Reach | 51.1m |
| Horizontal Reach | 45.8m |
| Chassis | 3-axle Scania |
| Engine | High-performance diesel engine (Euro V/China V emission standards) |
| Max Engine Net Power/rpm | 302kW 1900r/min |
| Pumping System | |
| - Max. Output | 180 m³/h |
| - Max. Pressure | 11 MPa |
| - Cylinder Bore x Stroke | Φ260 mm × 2100 mm |
| - Pumping Frequency | 26 strokes/min |
| Boom Structure | 6-section RZ-folding design |
| Outrigger System | Front/rear X-type outriggers with ±270° rotation |
| Supporting Leg Span | Approx. 9,000–10,000 mm (front/rear/longitudinal) |
| Delivery Pipe | 125 mm or 150 mm diameter (standard for high-rise pumping) |
| Control System | Full hydraulic control with proportional valve technology |
| Safety Features | |
| - Anti-Overturning | Yes |
| - Soft Start/Stop | Yes |
| - Emergency Stop | Yes |
| - Monitoring | Real-time hydraulic oil temperature and pressure |

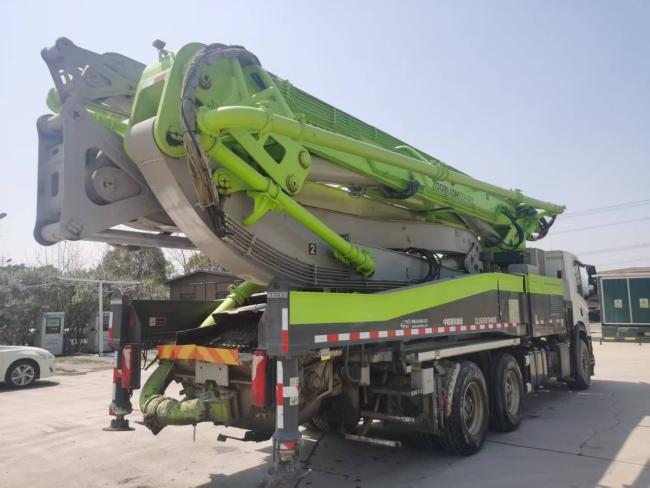

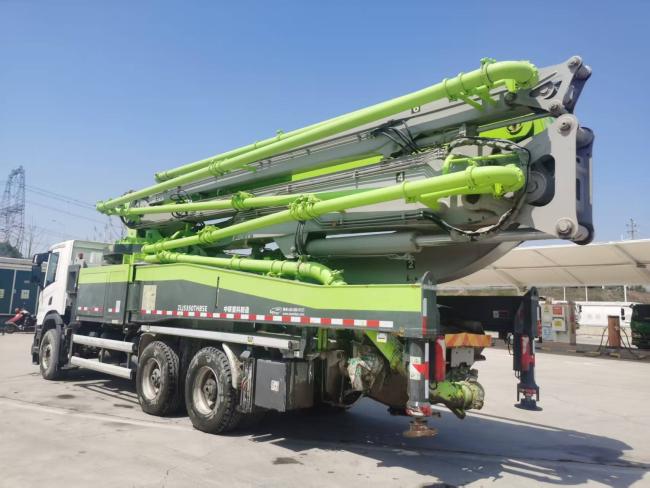

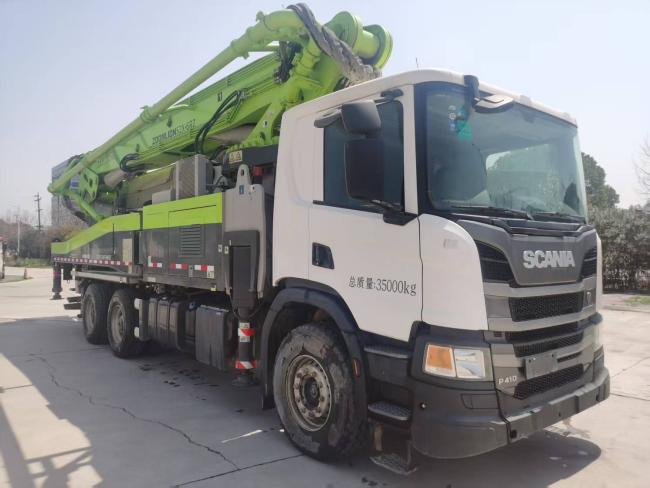

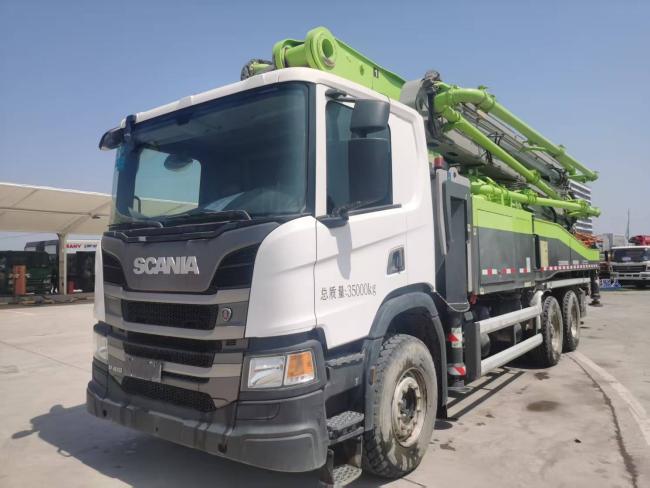

Photo Details
Key Features:
- Unrivaled Reach: With a 52-meter boom and 6-section RZ-folding design, the ZLJ5350THBSE provides unparalleled flexibility, reaching even the most challenging spots on your job site.
- Powerful Pumping System: Boasting a max. theoretical output of 180 m³/h and a concrete pressure of 11 MPa, this pump truck ensures fast and efficient concrete delivery, even over long distances.
- Advanced Safety and Stability: Equipped with an anti-overturning system, soft start/stop function, and real-time monitoring of hydraulic parameters, the ZLJ5350THBSE prioritizes safety without compromising on performance.
- Robust Chassis and Engine: Powered by a high-performance diesel engine compliant with Euro V/China V emission standards, this pump truck delivers reliable power while minimizing environmental impact.
- User-Friendly Control: The full hydraulic control system with proportional valve technology ensures smooth and precise operation, reducing operator fatigue and enhancing productivity.
Company Profile
1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit
