Sany 50T Truck Crane STC500C5-8 Heavy Lifter Lifting Cranes Used Crane 2023

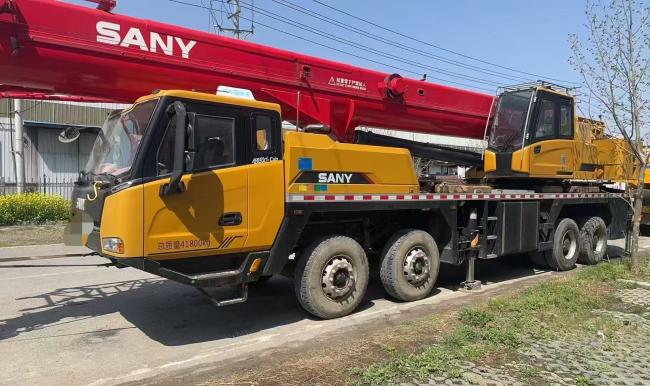

SANY STC500C5-8 50 Tons Truck Crane (SYM5426JQZ50C8P) - 2023 Model

The SANY STC500C5-8 (SYM5426JQZ50C8P) is a 50-ton 50t class truck-mounted crane designed for versatile lifting operations. Manufactured in 2023, this model combines robust performance with advanced mobility features.

Key Technical Parameters:

• Maximum Load Capacity: 50 metric tons

• Boom System:

  • Main Boom Length: 42m (4-section, U-shaped telescopic boom)

  • Maximum Boom + Jib Combination: 52m (optional 9.5m fixed jib or 14m luffing jib)

• Engine:

  • Power: 340 hp (Euro III/IV compliant, model SC9DK340Q5)

  • Transmission: 9-speed manual gearbox

• Chassis:

  • Chassis Model: SANY SYM5426JQZ

  • Drive Configuration: 8x4 (4-axle)

  • Max Travel Speed: 80 km/h

  • Gradeability: ≥40%

• Lifting Performance:

  • Max Tip Load: 1.2 tons (at 52m)

  • Max Working Radius: 48m

  • Hoisting Speed: 0~135 m/min (variable speed)

• Dimensions:

  • Overall Length/Width/Height: 14,950mm × 2,750mm × 3,950mm

  • Axle Load: ≤36,000 kg (GVW)

• Features:

  • Load moment indicator (LMI) with anti-overload system

  • Hydraulic outriggers with 5.8m span (front/rear)

  • CAN-bus intelligent control system

  • ECO mode for fuel efficiency

Certified to ISO 4305 and GB/T 14560 standards, the STC500C5-8 is engineered for construction, infrastructure, and industrial lifting applications with optimal stability and precision.
