USED ZOOMLION 200 ton truck crane mobile crane Lifting Equipment Hydraulic lift Hoist Machinery
Key Features & Configurations
|
Parameter |
Details |
|
Model |
ZOOMLION 200E7 |
|
Lifting Capacity |
Maximum Rated Total Lifting Capacity: 200 Tons |
|
Boom Specifications |
|
|
- Main Boom Length |
13.4 m – 72 m (7-section) |
|
Lifting Performance |
|
|
- Maximum Lifting Height |
103 m (With Jib) |
|
- Maximum Working Radius |
95 m (With Jib) |
|
- Maximum Lifting Moment |
6,664 kN·m (At 8 m Radius) |
|
Engine & Power |
|
|
- Engine Model |
Weichai WP13.530E40 |
|
- Rated Power |
390 kW (530 hp) @ 2,100 rpm |
|
- Emission Standard |
China V / Euro V |
|
Operational Efficiency |
|
|
- Slewing Speed |
0–1.4 r/min |
|
- Luffing Speed |
0–97 s (Boom Derricking Up Time) |
|
- Travel Speed |
75 km/h (Highway) |
|
Chassis & Mobility |
|
|
- Wheelbase |
8,000 mm |
|
- Minimum Ground Clearance |
305 mm |
|
- Minimum Turning Radius |
≤20 m |
|
- Gradeability |
40% |
|
Dimensions |
|
|
- Overall Length |
15,660 mm |
|
- Overall Width |
3,000 mm |
|
- Overall Height |
4,000 mm |
|
Weight |
|
|
- Operating Weight |
60,000 kg (Driving Condition) |
|
- Front Axle Load |
18,000 kg |
|
- Rear Axle Load |
42,000 kg (Dual Axles) |
|
Safety Features |
|
|
- Anti-Collision System |
Yes (Advanced) |
|
- Load Moment Indicator (LMI) |
Standard |
|
- Overload Protection |
Yes |
|
- Stability Control |
Yes |

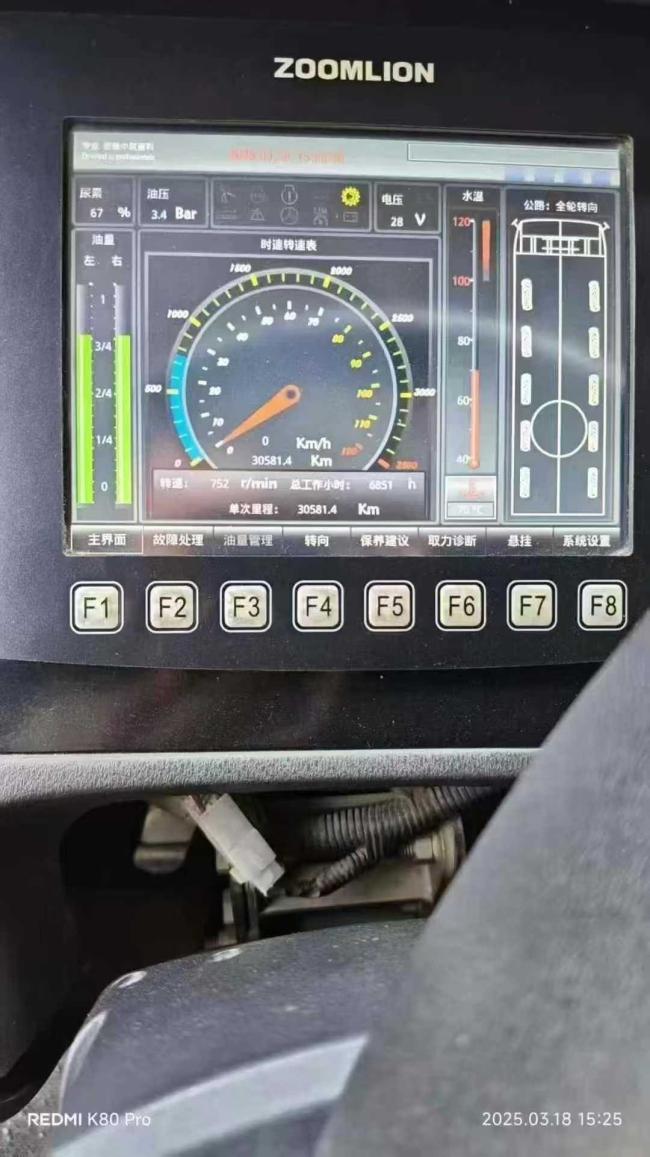

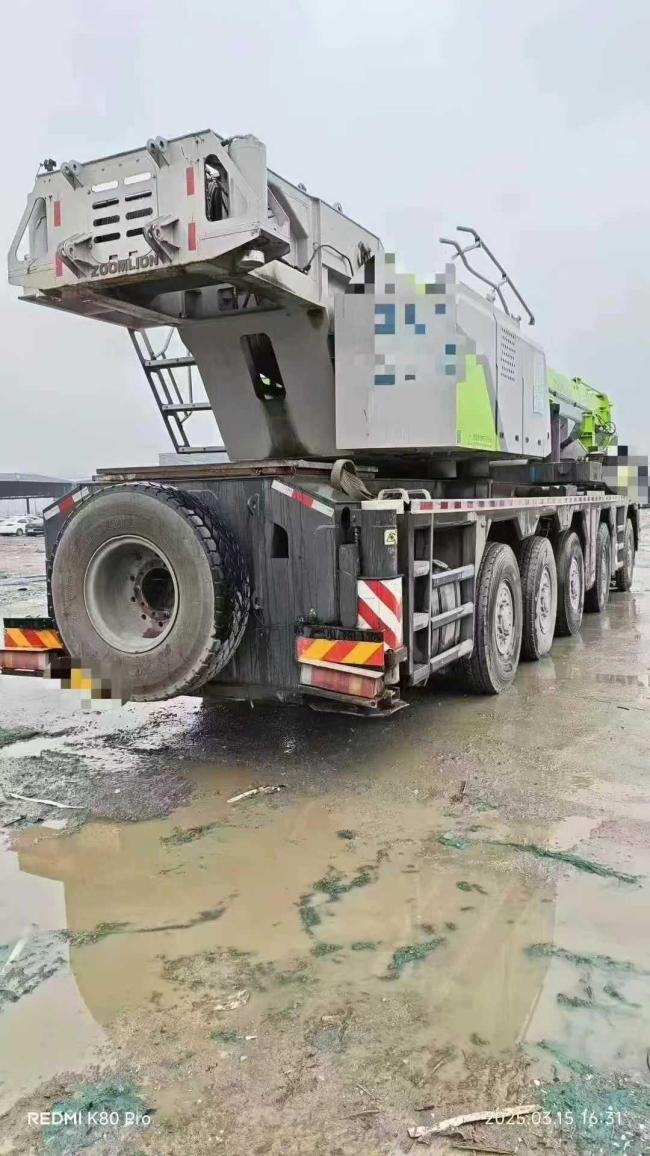

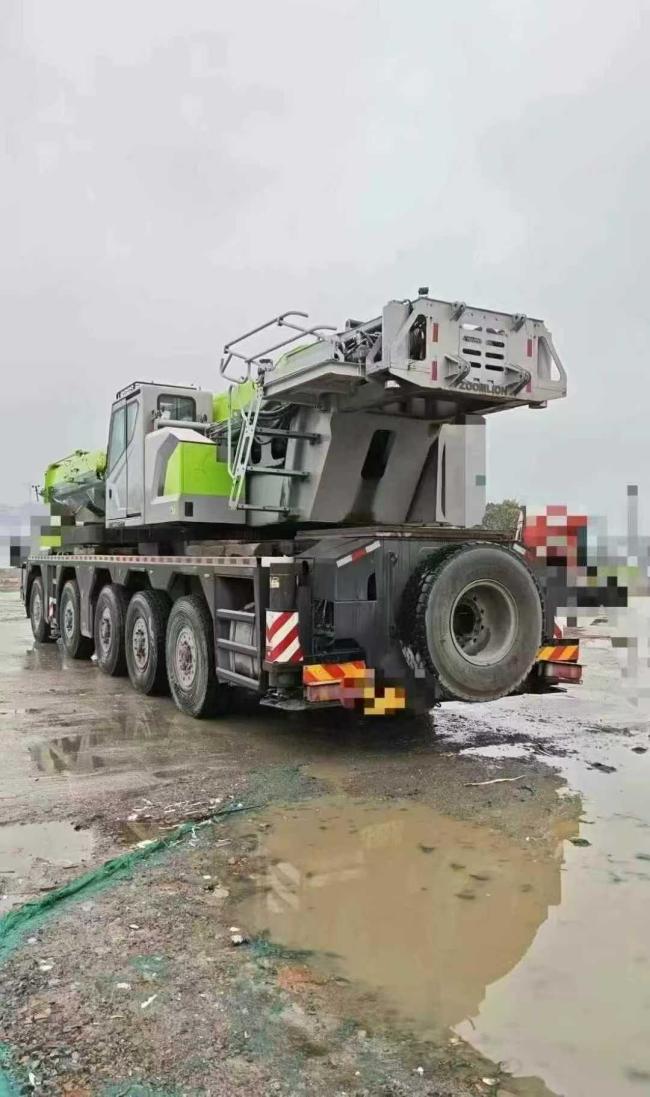

Photo Details
Company Profile
1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
