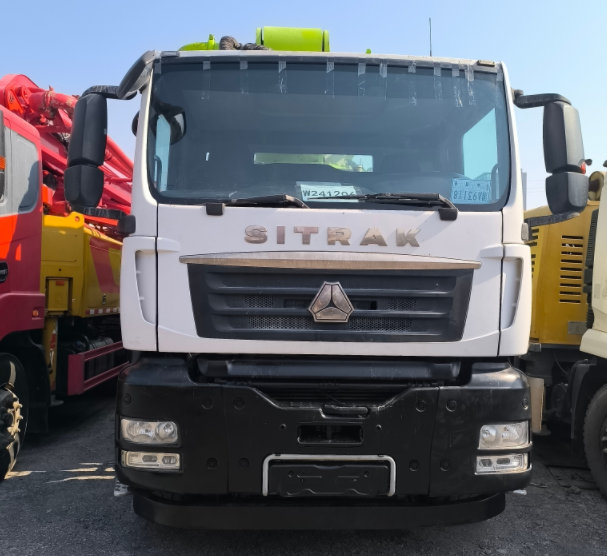

ZOOMLION 63m USED Pump Truck Concrete Pump In SITRAK Chassis 2020
Key Features & Configurations
|
Category |
Specification |
Key Features |
|
General |
Model |
Zoomlion ZLJ5440THBKE |
|
|
Arm Vertical Height |
63 meters |
|
|
Overall Dimensions |
13835mm (L) × 2550mm (W) × 4000mm (H) |
|
|
Max Mass |
44000 kg |
|
Engine |
Rated Power |
324 kW / 1,900 rpm |
|
|
Emission Standard |
Euro V |
|
|
Fuel Tank Capacity |
400 L |
|
Pumping System |
Concrete Output |
180 m³/h (low pressure) |
|
|
Max. Pumping Pressure |
11.3 MPa |
|
|
Pumping Frequency |
26 strokes/min |
|
|
Delivery Cylinder |
260 mm inner diameter × 2,100 mm stroke |
|
Boom System |
Arm Sections |
7 sections (63X-7RZ) |
|
|
Max. Vertical Reach |
62.1m |
|
|
Max. Horizontal Reach |
56.9m |
|
|
Boom Rotation Angle |
±270° |
|
|
End Hose Length |
3 meters |
|
|
Axle Configuration |
4-axle |
|
|
Max. Speed |
85 km/h |
|
Hydraulic System |
Type |
Independent dual-loop system |
|
|
System Pressure |
42 MPa |
|
|
Hydraulic Oil Tank Capacity |
800 L |
|
|
Water Tank Capacity |
400 L |
|
Operational |
Turning Radius |
12,250 mm (front) × 12,820 mm (rear) |
|
|
Gradeability |
30% |
|
Safety |
ABS System |
Yes (Scania-integrated) |
|
|
Safety Systems |
Anti-overload protection, emergency shutdown |

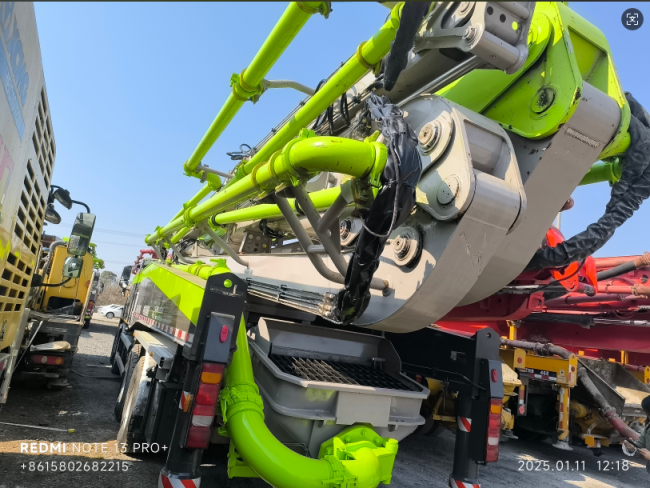

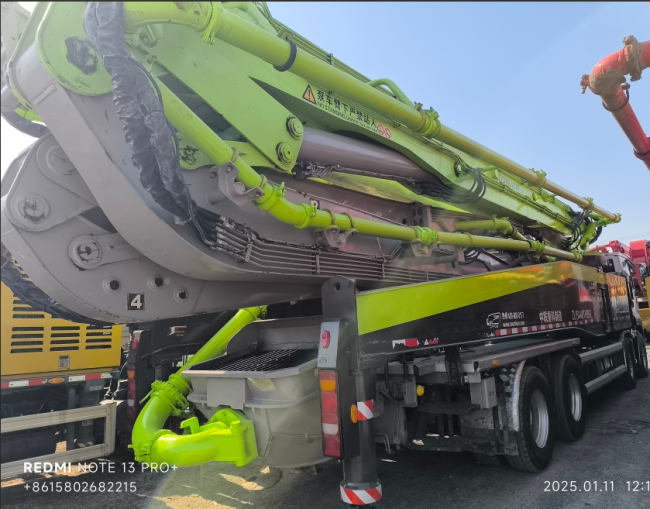

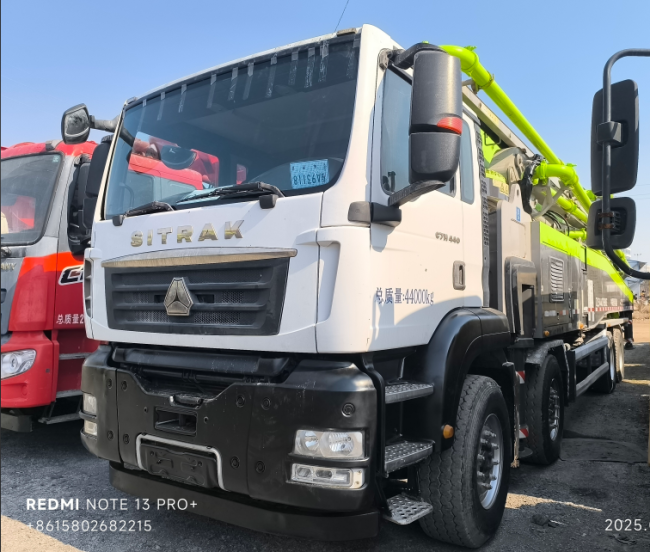

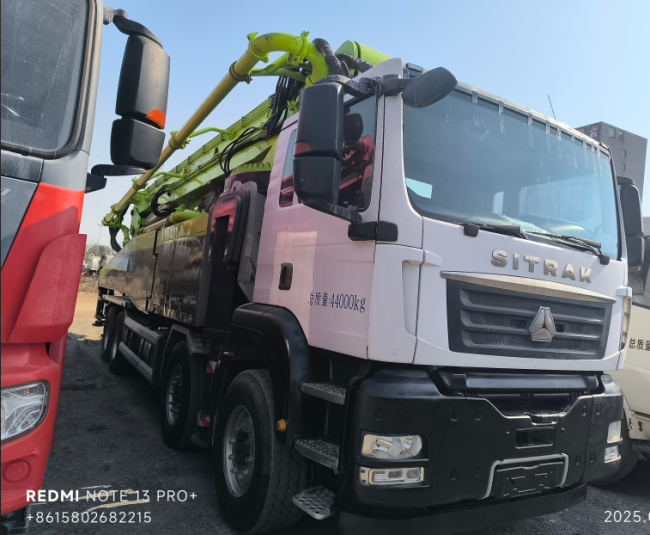

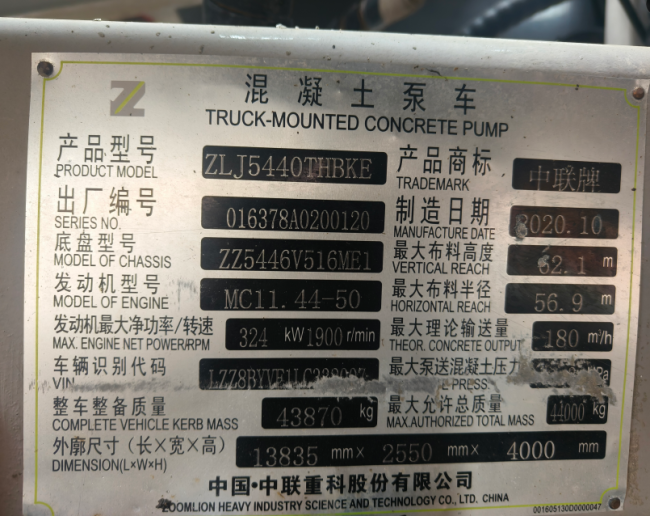

Photo Details
Company Profile
1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
