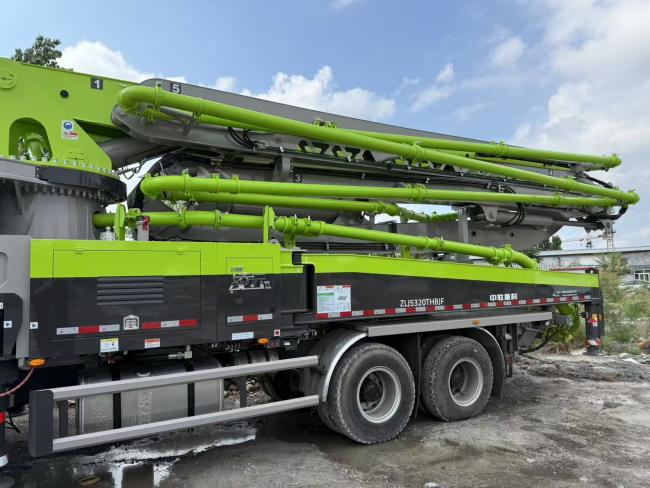

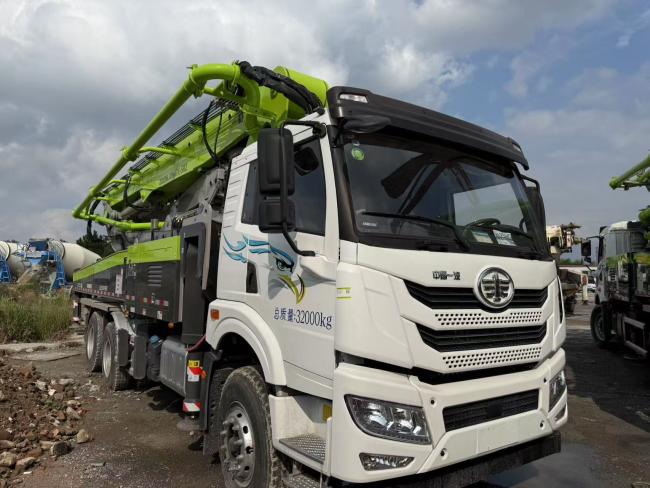

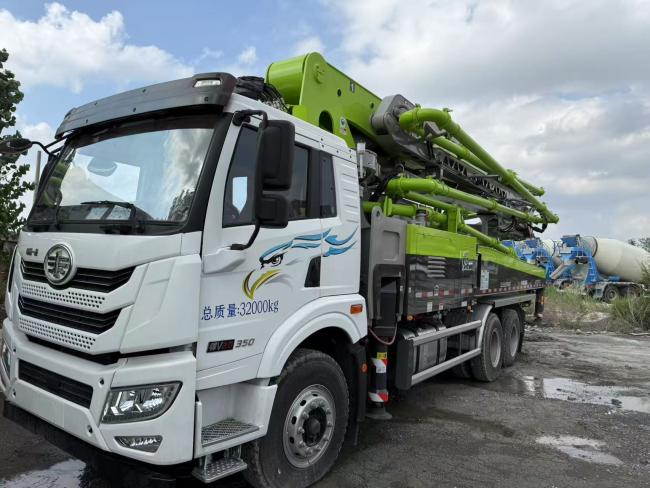

2025 Zoomlion 47M Concrete Pump Truck with 120 m³/h Pumping Output and 365° Continuous Rotation

2025 Zoomlion ZLJ5420THB 47X-6RZ Concrete Pump Truck (FAW Chassis) – High Performance, Reliable Solution

Introducing the Zhonglian ZLJ5320THBJF 47-meter Concrete Pump Truck, mounted on a reliable Jiefang (FAW Jiefang chassis), designed for high-efficiency concrete placement in construction projects. This 2025 model combines advanced pumping technology, robust build quality, and superior maneuverability, making it an ideal choice for large-scale commercial and infrastructure projects.

Key Specifications:

• Pumping System:

  • Max. Theoretical Pumping Output: 120 m³/h

  • Max. Vertical Pumping Height: 47 meters

  • Max. Horizontal Pumping Distance: ~38 meters

  • Cylinder Diameter × Stroke: Φ200 × 1600mm

  • System Pressure: 35 MPa

  • Concrete Pressure (High/Low): 8.3/12 MPa

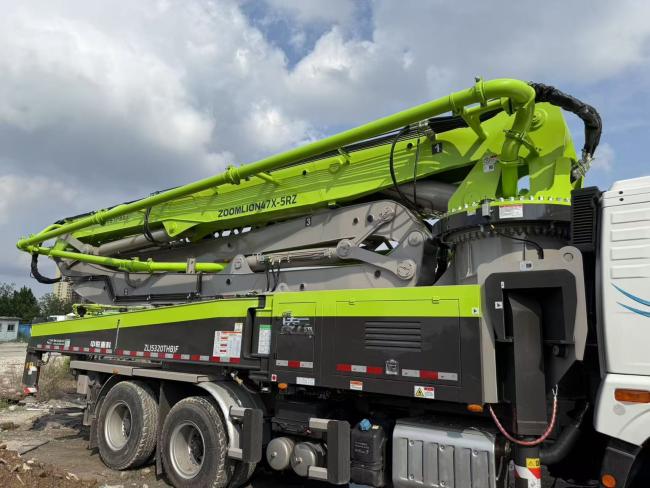

• Boom System:

  • Boom Type: 5-section, RZ-type folding boom

  • Boom Rotation Angle: 365° continuous rotation

  • Outrigger Span: Front ~5.2m / Rear ~8.6m (ensuring stability)

• Chassis & Powertrain:

  • Chassis Model: FAW Jiefang (6×4 configuration)

  • Engine: Euro VI-compliant diesel engine, ~350 HP

  • Transmission: 9-speed manual/optional automatic

  • Max. Travel Speed: 80 km/h

• Control & Features:

  • Control System: Intelligent electro-hydraulic control, remote/wireless operation

  • Piping: High-wear-resistant alloy steel, reducing maintenance costs

  • Safety: Auto-limiting pressure, emergency shutdown, anti-overturn system

• Dimensions & Weight:

  • Overall Length × Width × Height: ~11.5m × 2.55m × 3.95m

  • Gross Vehicle Weight (GVW): 32,000 kg

Why Choose This Model?

✔ High Efficiency: 47m reach for mid-to-high-rise buildings, reducing relocation needs.
✔ Durable Chassis: Jiefang’s proven reliability for heavy-duty operations.
✔ Smart Control: User-friendly interface for precise pumping.
✔ Competitive Pricing: Excellent value for a 2025 premium pump truck.

Ideal for construction firms, rental companies, and contractors seeking a cost-effective, high-performance concrete pump solution. Contact us today for the best offer!
