Zoomlion 2025 Model Concrete Pump Truck with 170 m³/h Output and 405 kW Engine Power

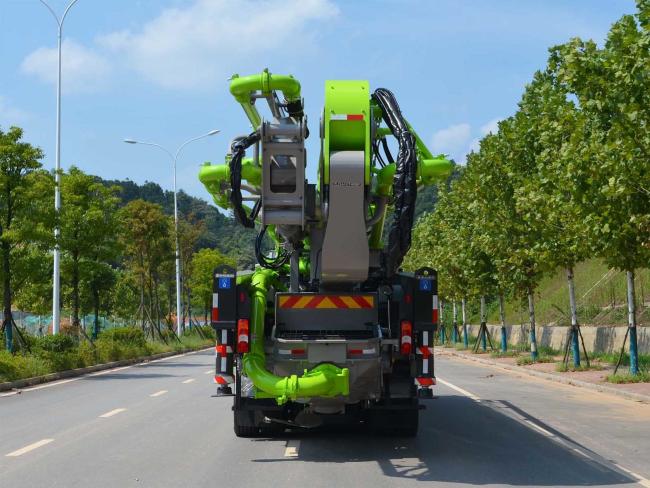

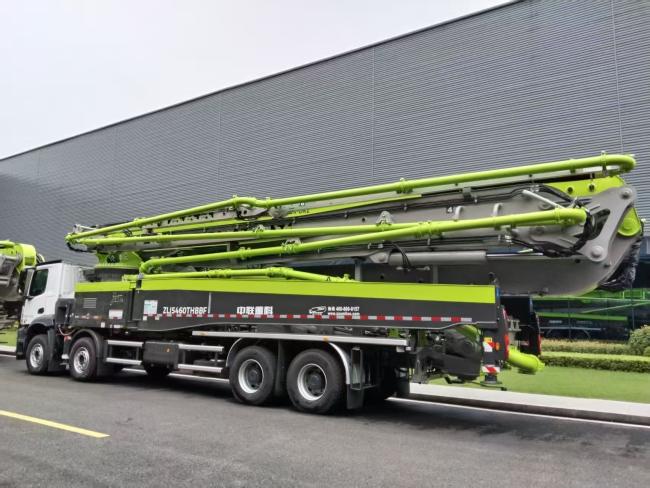

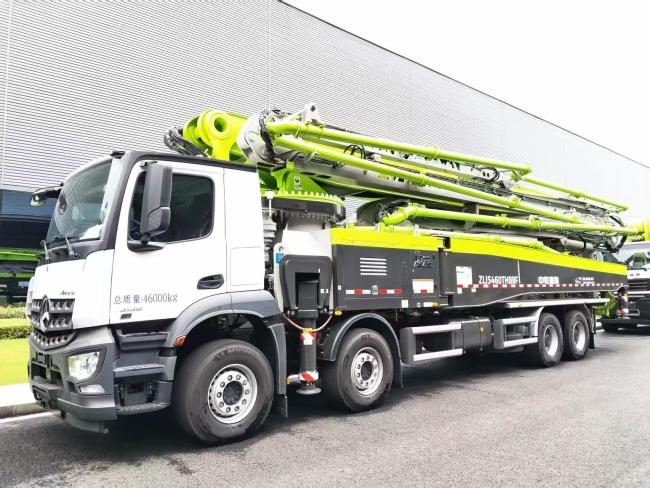

For Sale: Zoomlion ZLJ5460THBBF 62m Truck-Mounted Concrete Pump

A Unique Opportunity: Brand New 2025 Pump Unit on a New 2022 Mercedes-Benz Actros Chassis

We are pleased to offer a truly exceptional and rare opportunity: a brand new, unused Zoomlion ZLJ5460THBBF concrete pump truck. This unit features a state-of-the-art 2025 production pump system mounted on a robust and proven 2022 production Mercedes-Benz Actros 8x4 chassis, which has been kept unused since manufacture. This combination offers the perfect blend of Zoomlion's latest pumping technology and the legendary reliability of a Mercedes-Benz chassis. The vehicle is available for immediate inspection and purchase.

Detailed Technical Specifications

1. Chassis Specifications:

• Chassis Model: Mercedes-Benz Actros 3341 8x4

• Production Year (Chassis): 2022 (Kept as new)

• Cab: High-comfort Sleeper Cab, AC, with safety features.

• Engine: Mercedes-Benz OM 470 LA, Euro V compliant.

• Displacement: 10.7 Liters

• Rated Power: 405 kW (550 HP)

• Transmission: Mercedes PowerShift 3 (G281-12), 12-speed automated manual transmission.

• Drive Configuration: 8x4 (Four axles, rear-driven)

• Braking System: Full air brakes with ABS and ASR.

2. Pump Unit Specifications:

• Pump Unit Model: Zoomlion ZLJ5460THBBF

• Pump Production Year: 2025

• Theoretical Concrete Output: 170 m³/h

• Maximum Theoretical Vertical Pumping Height: 62 meters (203 feet)

• Maximum Theoretical Horizontal Pumping Distance: 1,500 meters

• Pumping Cylinder Diameter & Stroke: Φ230×1,600 mm

• Systolic Pressure: 13.8 MPa

• Delivery Pipe Diameter: Φ125 mm

3. Boom System Specifications:

• Boom Type: RZ-type, 5-section full hydraulic folding boom.

• Reach: 62 meters

• Boom Vertical Depth: 47.5 meters

• Boom Rotation: 365° continuous rotation

• Control System: Proportional valve control for smooth and precise movement.

• End Hose Length: 3 meters

4. Hydraulic System:

• Type: Closed-loop, energy-saving hydraulic system.

• Main Pump: High-pressure, variable piston pumps.

• Cooling System: Integrated oil and water cooling system for stable operation in high-temperature environments.

5. Safety & Control Systems:

• Control: State-of-the-art electro-hydraulic control system.

• Remote Control: Wireless remote control with clear display for safe and convenient operation.

• Safety Features: Boom load monitoring, pressure sensors, emergency stop systems, and anti-tipping protection.

6. General Data:

• Overall Length (transport): ~14,500 mm

• Overall Width (transport): ~2,500 mm

• Overall Height (transport): ~3,950 mm

• Total Weight: ~46,000 kg

Key Advantages:

• Unused Condition: Both the chassis and pump are brand new and unused.

• Proven Reliability: Combines Zoomlion's cutting-edge pumping technology with the unmatched durability and driver comfort of a Mercedes-Benz chassis.

• High Performance: Ideal for a wide range of construction projects, from high-rise buildings to large-scale infrastructure.

• Immediate Availability: Ready for inspection and immediate delivery.

This is a unique chance to acquire a top-tier concrete pump with a top-tier底盘 at an exceptional value proposition. We highly recommend a personal inspection to fully appreciate the quality of this machine.

Contact us today to arrange a viewing at your convenience.
