Used 2021 Zoomlion 63M Concrete Pump Truck with 5-Section Z-Type Folding Boom and 170-180 m³/h Output

For Sale: 2021 Zoomlion ZLJ5441THBBE 63m Concrete Pump Truck with Mercedes-Benz Chassis

We are pleased to offer a well-maintained, high-performance 2021 Zoomlion ZLJ5441THBBE 63-meter truck-mounted concrete pump. Mounted on a reliable and powerful Mercedes-Benz chassis, this machine is in excellent working condition and is ready for immediate inspection and deployment on your next project.

Key Features:

• Recent Model Year: Manufactured in 2021, ensuring modern technology and efficiency.

• Premium Mercedes-Benz Chassis: Provides superior reliability, driving comfort, and powertrain performance.

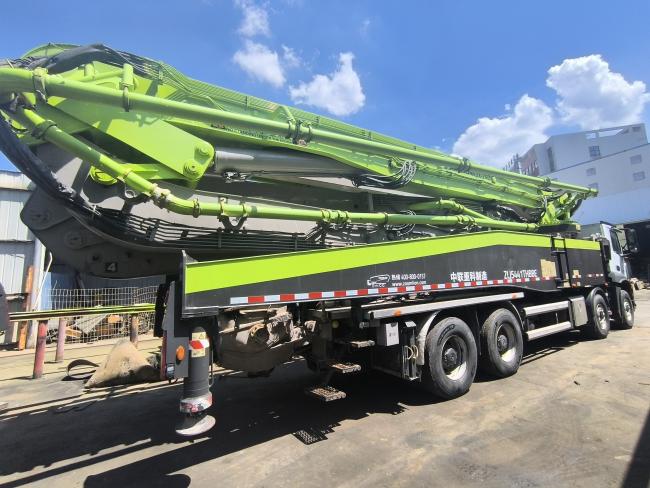

• 5-Section Z-Type Folding Boom: Offers a maximum vertical reach of 63 meters and a horizontal reach of approximately 53.5 meters, providing exceptional flexibility and coverage on large construction sites.

• Proven Zoomlion Pumping System: Designed for high output, low pressure loss, and exceptional reliability, handling a wide range of concrete grades.

• Excellent Condition: Meticulously maintained and available for immediate inspection.

Detailed Technical Specifications:

1. Chassis Specifications:

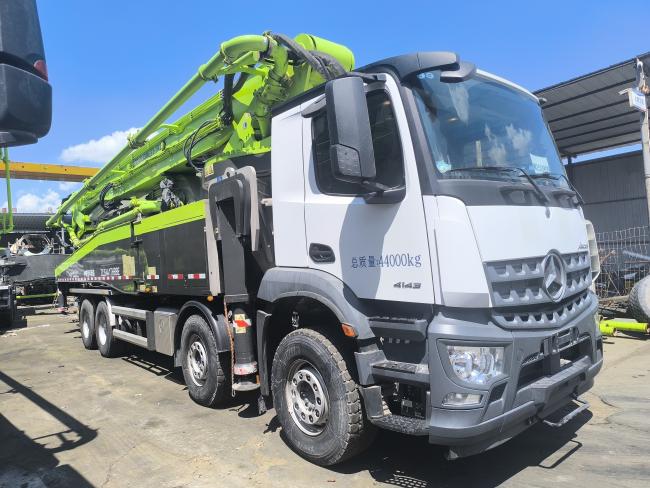

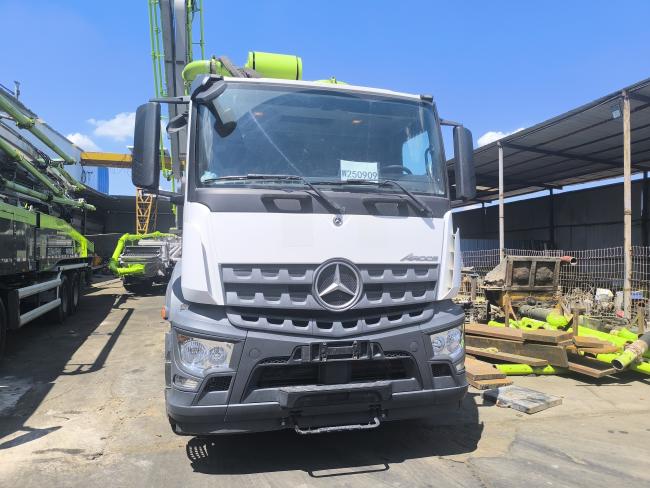

• Chassis Model: Mercedes-Benz

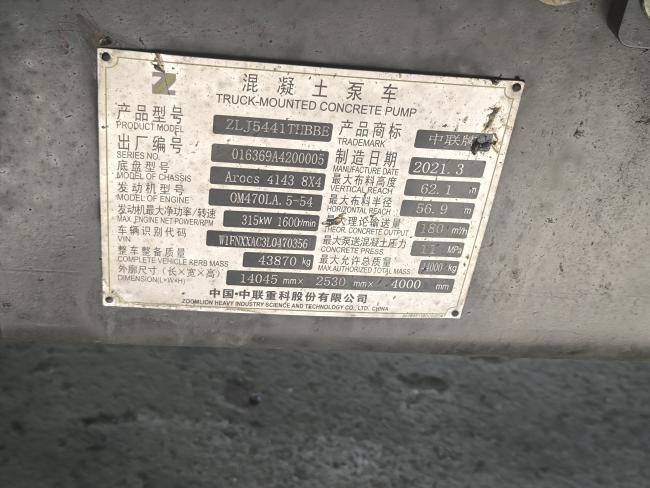

• Model Designation: ZLJ5441THBBE (Complete Vehicle)

• Engine: Mercedes-Benz Diesel Engine

• Emission Standard: Likely Euro V (To be confirmed per local regulations)

• Driving Configuration: 8x4 (Four Axles, Rear-Wheel Drive)

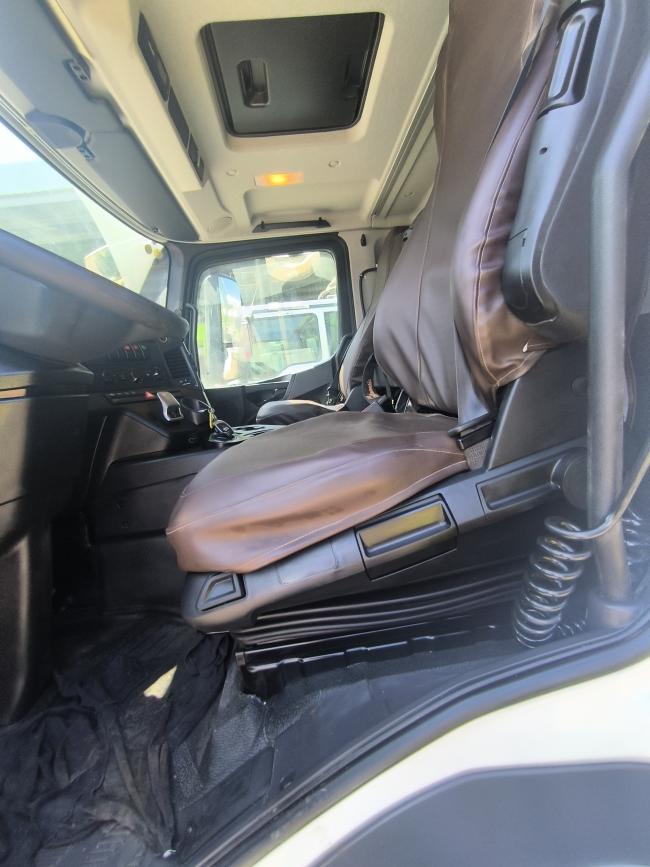

• Cab: High-comfort, sleeper cab with air conditioning and modern controls.

2. Boom System:

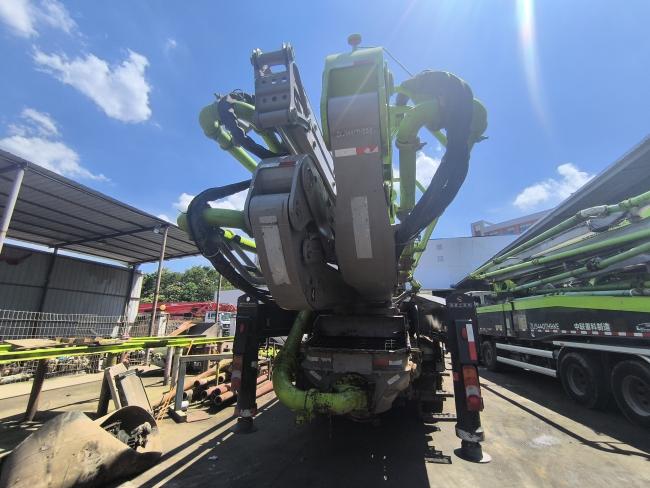

• Type: 5-Section, Z-Type Folding Boom

• Maximum Vertical Reach: 63 meters (approx. 207 feet)

• Maximum Horizontal Reach: approx. 53.5 meters (approx. 175 feet)

• Maximum Depth Below Grade: approx. 47 meters (approx. 154 feet)

• Boom Control: Full proportional, remote-controlled operation for precise placement.

3. Pumping System:

• Theoretical Concrete Output: 170 - 180 m³/h

• Maximum Theoretical Pumping Pressure: 8.7 - 9.3 MPa (approx. 1260 - 1350 psi)

• Cylinder Diameter & Stroke: Standard industry dimensions for high volume output (e.g., Ø260mm x 2100mm - to be confirmed).

• S-Valve: High-abrasion-resistant steel casting for extended service life and smooth concrete flow.

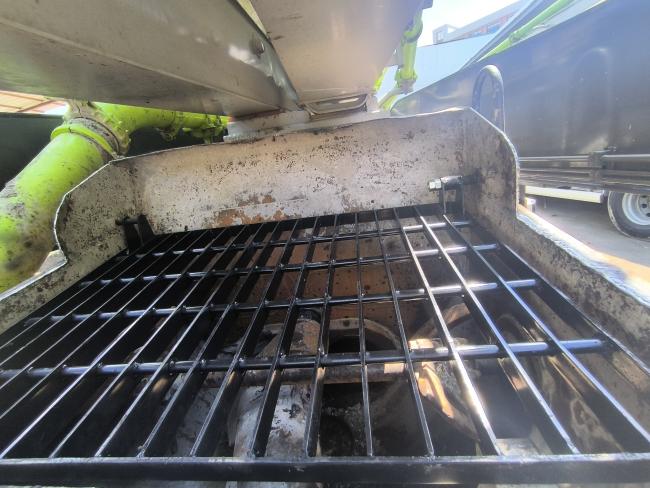

• Hopper Capacity: Standard large capacity hopper with agitator for continuous mixing.

4. Hydraulic System:

• Type: Closed-loop, intelligent hydraulic system for efficient power management and smooth operation.

• Cooling: Integrated oil cooling system for stable performance in high-temperature environments.

5. Operational Parameters:

• Line Diameter: 125mm (5") primary piping

• Supported Concrete Grade: Up to C60-C70

• Slump Range: 120 - 230 mm (Handles a wide range of consistencies)

General Condition:
This pump truck has been professionally operated and serviced according to manufacturer guidelines. It presents an exceptional opportunity to acquire a late-model, high-specification concrete pump at a highly competitive price point compared to a new unit.

Availability:
The machine is located and ready for a full physical and operational inspection at your convenience. We encourage serious buyers to contact us to arrange a viewing and see the performance firsthand.

Contact us today to schedule your viewing and discuss competitive pricing!
