Turbo Bearing 164468 Smooth-Running Solution for Performance Turbo Systems High-End Maintenance Market
Price:
375
MOQ:
5
Delivery Time:
Negotiable
Product Description

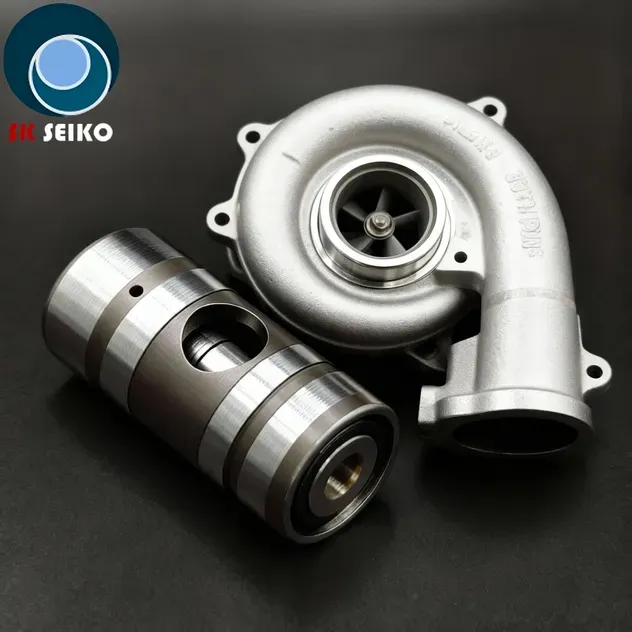

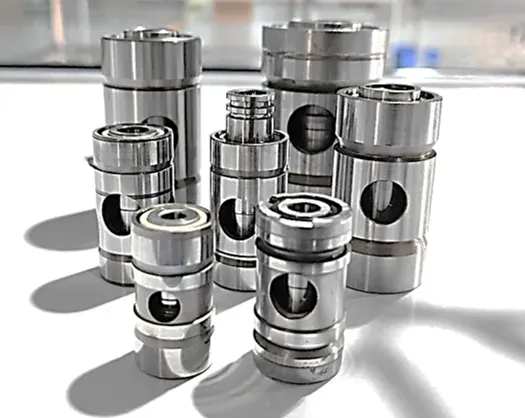

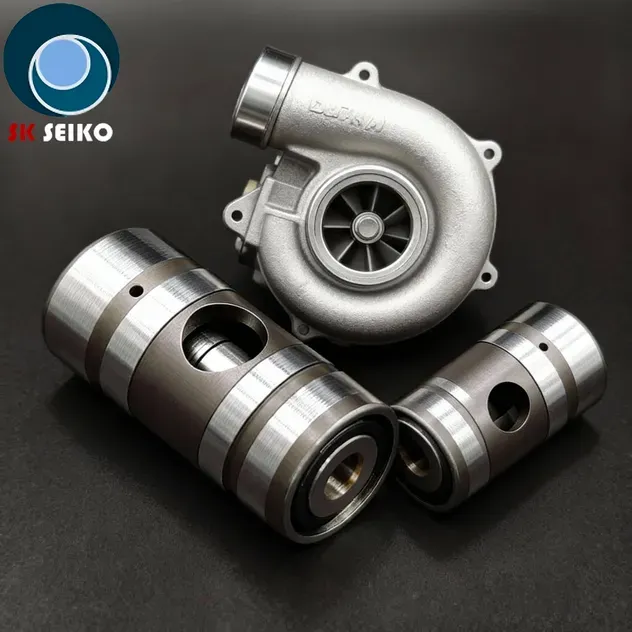

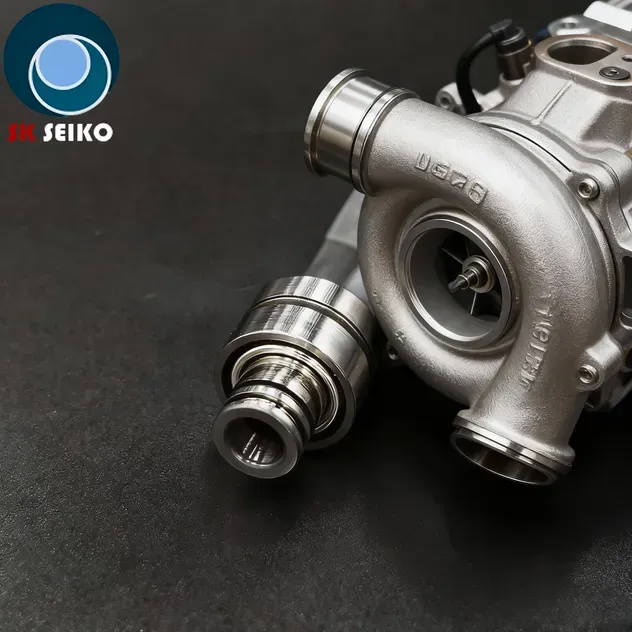

Turbocharger dual ceramic ball
We have been engaged in the R&D and manufacturing of automotive turbocharger bearings for over 20 years. We provide long-life and low-noise bearings for various high-performance automotive turbocharging modifications as well as automotive turbocharger maintenance.
Specification
Applications
1,Working condition with high temp. Due to engine exhaust gas temp.
2,Max revolution up to 120K~200K RPM, Even Higher Smooth running and low axial play
3,Deprived oil condition when engine start & stop
4,Rapid WOT & DECE performance at premium car
5,Cooling & Lubrication provided by engine oil system
Product focus
Classic bearing alloy steel, high temp endure with M50 inner ring
Special HT ensure constant performance under high temp. Working condition

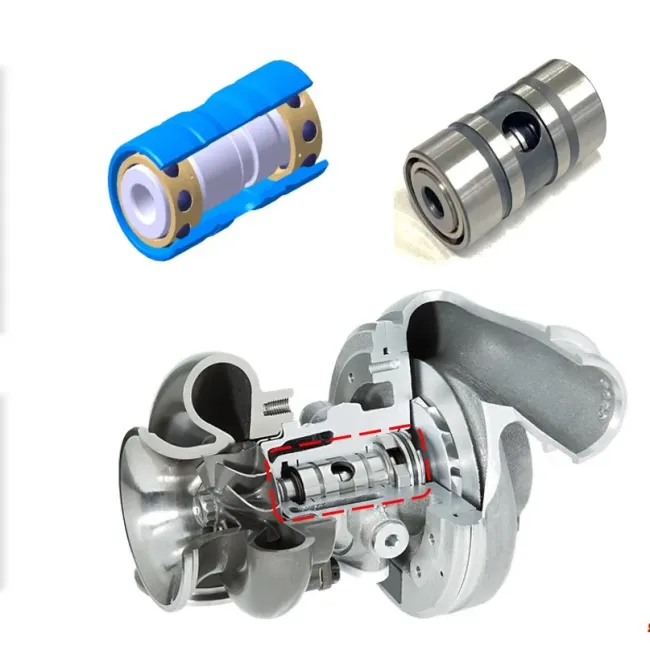

ACBB ceramic ball bearing DB integrated design
PEEK / Alloy cage adapt to different application
High precision
Key Configurations
Cage:
PEEK/Steel Cage, coating available for different application, improved oil-deprived condition performance.
Si3N4 Ceramic ball bearing:
Better at wear resistant and high revolution
Special HT for bearing rings:
Enables grain refinement, reduces residual austenite, and maintains initial accuracy capability.
Technical Specifications
(Custom configurations available upon request.)
NO. | Bearing type | d Bore(mm) | D Outer(mm) | B height (mm) | Retainer(Cage) | Balls material |
1 | 61834 | 6 | 18 | 34.2 | Black /Silver | ceramics |
2 | 62036 | 6.5 | 20.4 | 36.7 | Black /Silver | ceramics |
3 | 72038 | 7 | 19.8 | 36.26 | Black /Silver | ceramics |
4 | 82242G02 | 8.8 | 22 | 53.7 | Black /Silver | ceramics |
5 | 82242G04 | 8.8 | 22 | 42.5 | Black /Silver | ceramics |
6 | 82242G05 | 8.8 | 22 | 42.5 | Black /Silver | ceramics |
7 | 102844 | 10.8 | 28.2 | 44.55 | Silver | ceramics |
8 | 102855 | 10.2 | 28.2 | 55.2 | Silver | ceramics |
9 | 133566 | 13 | 35 | 66 | Black /Silver | ceramics |
10 | 164468 | 16 | 44 | 68 | Black /Silver | ceramics |

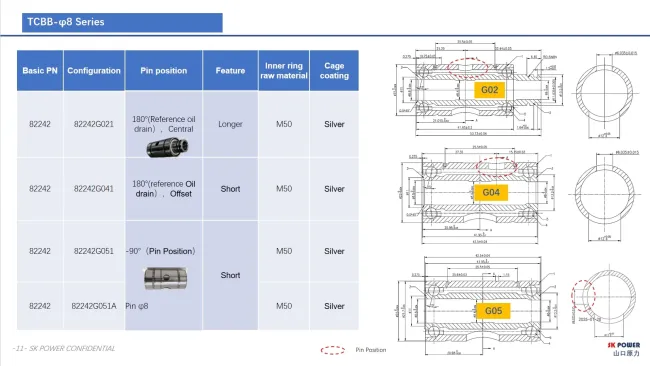

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

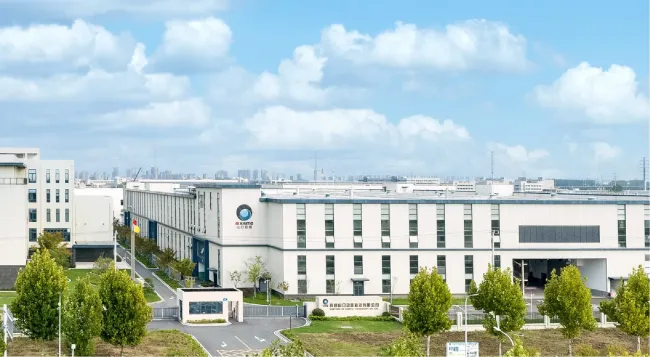

Company Profile
Foshan Suwei Bearing Trading Co., Ltd.
We (SKS) are committed to providing innovative micro-bearing technology, near-perfect technological level and perfect service system. With world-class quality, we have long cooperated with top international enterprises such as Japan Electric Power Co., Ltd., Taiwan Province Foxconn and German EMB. (SKS) Excellence in products, fastidious and demanding in manufacturing process are all firmly sealed in each miniature bearing and condensed in each production line. Yamaguchi (SKS), which has nearly 20 years' experience in research and development and manufacturing of miniature bearings, has become one of the representatives of excellent quality in the field of miniature bearings in China, and will achieve the extraordinary glory of cutting-edge manufacturing in China!
We pursue unrivaled quality and a competitive position in the international market through the production of high precision miniature ball bearings. Our goal and objective is to meet the customers' requirements and expectations at all times with different extreme conditions.
