HDPE Geomembrane Liner For Water Conservancy Reinforce Reservoir Dikes Banks

Price Negotiable
Price: $0.3-$2.0/SQM
MOQ: 30000 square meters
Delivery Time: 5-8 days
Brand: SZ
Product Description

HDPE Geomembrane Liner For Water Conservancy Reinforce Reservoir Dikes Banks

Geomembrane is an extremely low permeability synthetic membrane lining that can be used to control fluid or gas migration in artificial engineering, structures or systems. It is a kind of polymer chemical flexible material, small specific gravity, strong elongation, high adaptability to deformation, corrosion resistance, low temperature resistance, good frost resistance.





Thickness
0.5mm
0.75mm
1.0mm
1.25mm
1.5mm
2.0mm
Width
1m ~ 8m
Length
50m ~ 100m
Material
HDPE / LDPE / LLDPE / EVA
Spices
Smooth / Rough / Composite Geomembrane





Spec Properties
GMS0.5
GMS0.75
GMS1.0
GMS1.25
GMS1.5
GMS2.0
Thickness ( mm )
0.5mm
0.75mm
1.0mm
1.25mm
1.5mm
2.0mm
Density ( ≧g/cc )
0.94
Carbon Black Content ( % )
2.0 ~ 3.0
Tear Resistance ( N )
63
93
125
156
187
249
Puncture Resistance ( N )
134
200
267
333
400
534
Stress Crack Resistance ( Hrs )
500
Tensile Yield Strength ( N/mm )
7.5
11
15
18
22
29
Tensile Break Strength ( N/mm )
5
8
10
13
16
21
Yield Elongation ( % )
12
Break Elongation ( % )
100



For more water Infrastructrure, use our geomembrane

Contact us now and learn more about our products

Cathy

WA/ Wechat : 0086 139 0153 8890

cathy@geogrid-cn.com

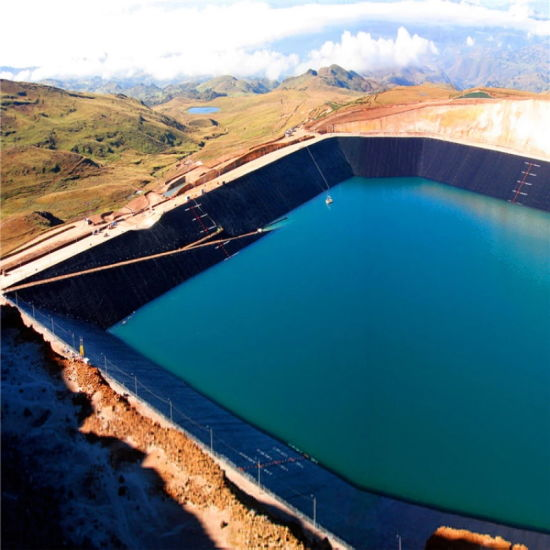

Landscape Projects



Artificial lake, pond, the bottom of pond in Golf course, revetment etc.

The selection of geomembrane thickness depends on the size of the pond area.
Artifical lake :
recommended geomembrane thickness of 0.3mm / 0.5mm / 0.75mm.

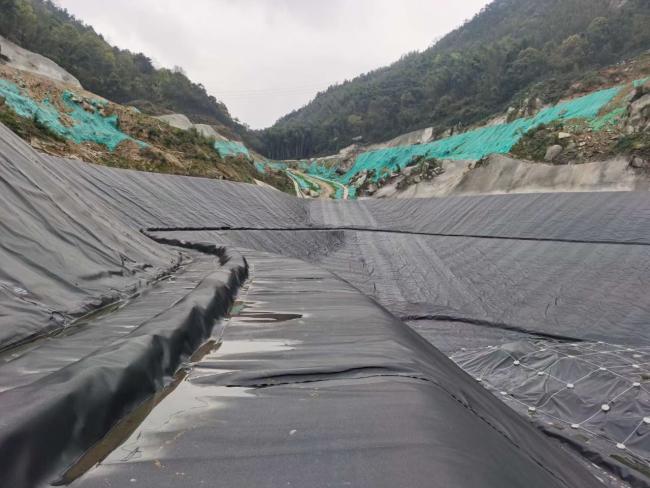

Sanitation Projects

Domestic garbage landfill, sewage treatment, poisonous & harmful substance treatment,

dangerous cargo storage. The selection of geomembrane thickness depends on the size of the pond area.
Landfill :
recommended geomembrane thickness of 1mm / 1.25mm / 1.5mm.
