SBR Coated PET UX 100-400KN/M Polyester Geogrid Stabilize Embankments Slope Retaining Wall
SBR Coated PET UX 100-400KN/M Polyester Geogrid Stabilize Embankments Slope Retaining Wall
About Yixing Shenzhou Polyester Geogrid 100-400 kn/m :
The geogrid is a geosynthetic materials used as reinforcement in construction works, which is made of polypropylene, polyvinyl chloride and other polymers by thermoplastic or molding. Our factory produce four type geogrid:
plastic geogrids,
steel-plastic geogrids,
glass fiber geogrids,
warp-knitted polyester geogrids.
| Photos |  |
 |
 |
 |
| Features |
1. High tensile modulus. is low (not more than 3%). resistance. and pets. |
1.High strength, small creep. soil. resistance. and pets. |
1. High tensile strength, low elongation less than 3%. is 1000℃. asphalt mixture. and restriction. |
1. No bending between warp and weft yarns. and weft are strong. and interlocking with soil. |
|
Tensile Strength |
30KN-150KN | 15KN-50KN | 20-150kn | 20-400kn |
| Roll Width | 1-6m | 1-6M | 1-6m | 1-6 |
Technical Specification
| Physical Property | Unit | 100/30 | 160/30 | 200/30 | 300/30 |
| Tensile Strength MD | kN/m | 100 | 160 | 200 | 300 |
| Tensile Strength CMD | kN/m | 30 | 30 | 30 | 30 |
| Elongation MD | % | 10 | 10 | 10 | 10 |
| Tensile Strength @ 5% strain | kN/m | 50 | 80 | 100 | 150 |
| Unit Weight (±5%) | 193 | 224 | 283 | 395 | |
|
Creep Reduction Factor 120 Year Design Life |
1.42 | 1.42 | 1.42 | 1.42 | |
|
Creep Limited Strength 120 Year Design Life |
kN/m | 70.4 | 112.7 | 140.8 | 211.3 |
| Installation Damage Reduction | |||||
| Type 3 Backfill (sand, silt, clay) | 1.05 | 1.05 | 1.05 | 1.05 | |
| Type 2 Backfill (sandy gravel) | 1.10 | 1.10 | 1.10 | 1.10 | |
| Type 1 Backfill(gravel) | 1.15 | 1.15 | 1.15 | 1.15 | |
| Durability Reduction Factor | 1.05 | 1.05 | 1.05 | 1.05 | |
| LTDS (120-year design life) | |||||
| Type 3 Backfill (sand, silt, clay) | kN/m | 63.9 | 102.2 | 127.8 | 191.6 |
| Type 2 Backfill (sandy gravel) | kN/m | 61.0 | 97.6 | 121.9 | 183.3 |
| Type 1 Backfill(gravel) | kN/m | 58.3 | 93.3 | 116.6 | 175.4 |
FUNCTION
-
Calculating tightly with surrounding materials, creating a solid foundation, especially against the slip of embankment used as dams and earth retaining walls.
-
Versatility: almost suitable for all types of soil and rock.
-
Save the amount of earthwork, take advantage of on-site materials.
-
Fast construction time with low cost.
-
Durable geogrids with physical and chemical impacts of the enviroment, corrosion often seen in the area to handle soft ground (mined areas, landfills, marshlands, ports…)

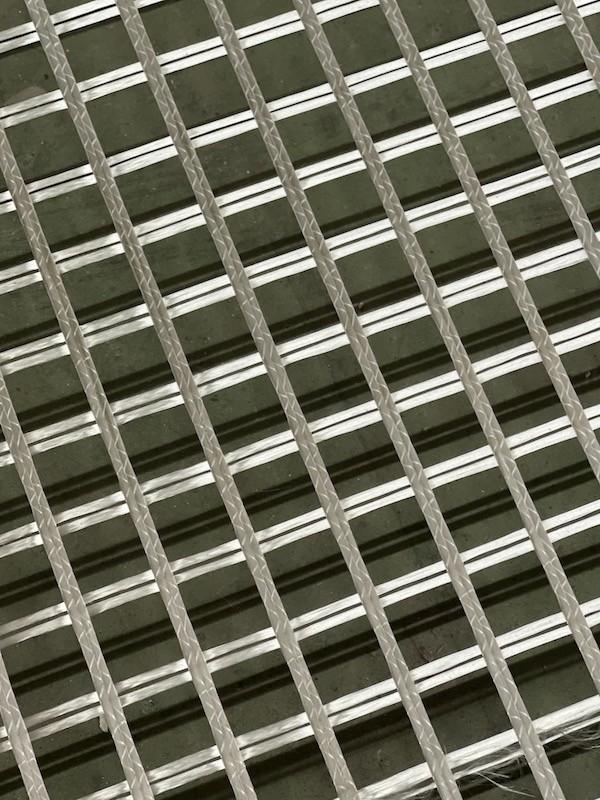

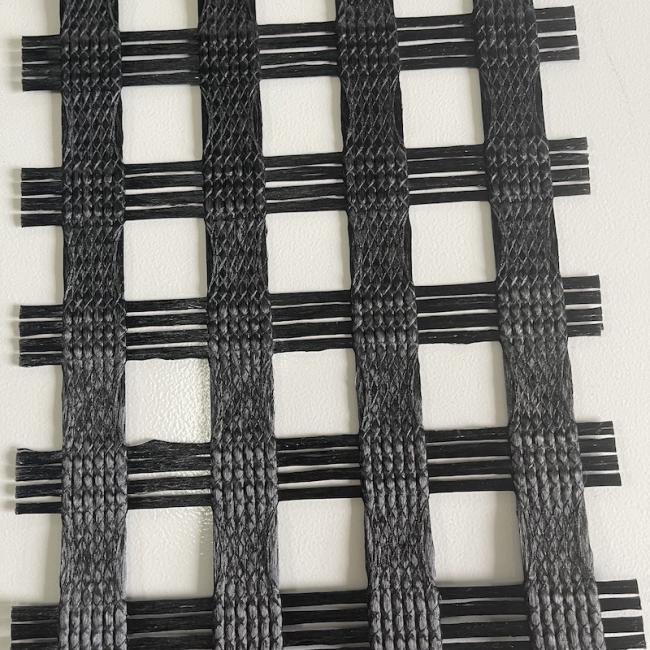

SHENZHOU® is a geogrid reinforcement for soil. These high performance geogrids are constructed of high molecular weight and high tenacity polyester yarns utilizing a complex knitting process and polymeric coating to provide superior engineering properties. Yarns are precision knitted into a dimensionally stable, uniform network of apertures providing significant tensile reinforcement capacity. SHENZHOU is engineered to be mechanically and chemically durable, in both the harsh construction installation phase and in aggressive soil environments
For more sustainable roads, use our geosynthetics
