Superior Separation & Stabilization 300g/sqm Polyester Geotextile Paving Or Erosion Control Road Projects
Superior Separation & Stabilization 300g/sqm Polyester Geotextile Paving Or Erosion Control Road Projects
Professional-grade 300gsm polyester nonwoven geotextile.
Yixing Shenzhou Geosynthetics Perfect for soil separation, stabilization, and drainage in demanding civil and construction projects.
Yixing Shenzhou Geosynthetics Polyester Nonwoven Geotextile Product Features:
*It has high permeation and can keep good permeation under the pressure of earthwork.
*It has corrosion resistance, uses chemical fiber such as polypropylene or Dacronas raw
material, has acid and alkali resistance, hasn't corrosion or moth eating and has oxidation resistance
*It has convenient construction, small weight and convenient uses.
Nonwoven Geotextile Production process & Nonwoven Geotextile production line
100-800g/sqm Polyester Nonwoven Geotextile Technical Specifications
| Parameter | Value Range | Test Standard |
|---|---|---|
| Weight | 100-800 g/m² | ISO 9864 |
| Thickness | 0.8-4.5mm | ASTM D5199 |
| Tensile Strength | 2.5-25 kN/m (MD/CD) | ISO 10319 |
| Elongation | 25-100% | ASTM D4632 |
| CBR Puncture | 200-4000N | EN ISO 12236 |

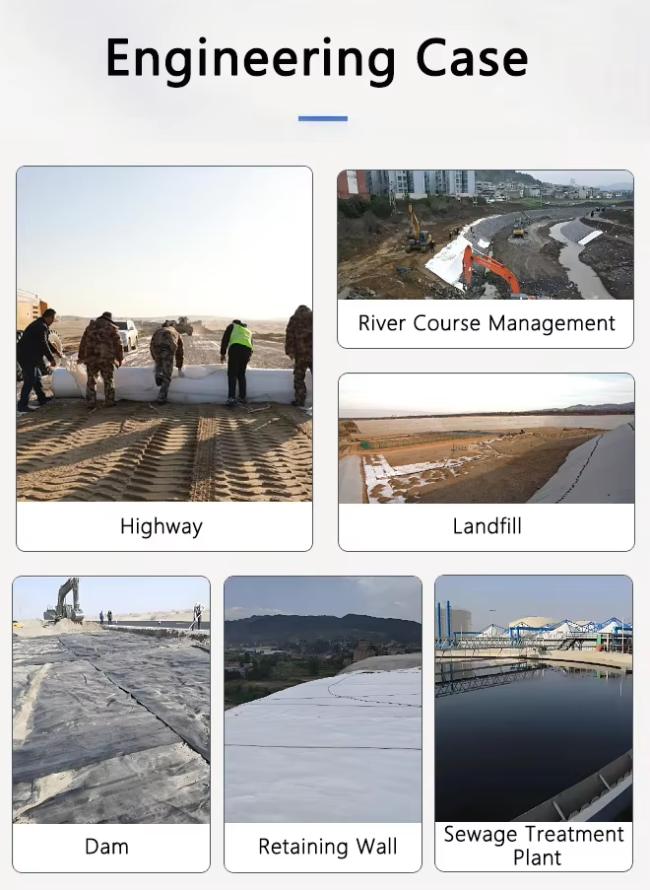

Yixing Shenzhou Polyester Nonwoven Geotextile Project Applications
Heavy Load Stabilization & Reinforcement
Use: Under railways, port terminals, and heavily trafficked industrial roadways built on very soft subgrades.
Benefit: Distributes immense loads to prevent rutting and failure.
Landfill & Environmental Protection
Use: As a protective cushion layer directly above geomembranes in landfill liners and caps.
Benefit: Its extreme puncture resistance safeguards the critical impermeable liner from damage.
Slope & Erosion Protection Under Rip-Rap
Use: Beneath large rock revetments on steep slopes, shorelines, and riverbanks.
Benefit: Prevents soil loss while allowing water to drain, even under the weight of large stone.
Working Platforms on Very Soft Ground
Use: Creating stable access for cranes and heavy equipment on marshland, dredged material, or other ultra-soft sites.
Benefit: Provides the necessary tensile strength to bridge weak areas and create a safe work surface.
Aggregate Separation in Harsh Conditions
Use: Separating contaminated soils or highly abrasive aggregate from subgrades.
Benefit: The thick, dense fabric resists abrasion and punctures, ensuring long-term separation
Frequently Asked Questions (FAQ)
Q: What is the difference between woven and nonwoven geotextiles?
A: Woven geotextiles are best for high-strength reinforcement applications. Nonwoven geotextiles, like ours, excel in separation, filtration, and drainage due to their permeable structure.
Q: Is polyester better than polypropylene?
A: For nonwovens, polyester generally has higher strength and UV resistance and better creep performance, making it ideal for permanent, critical applications.
Q: What weight (oz/yd²) do I need for my project?
A: The required weight depends on the application, soil type, and load. A 4-6 oz/yd² is common for drainage and separation, while 8 oz/yd² and above is used for stabilization on soft ground. Contact our experts for a recommendation.
Q: Do you offer custom roll sizes?
A: Yes. We can provide custom widths and lengths to minimize seams and waste on your job site.
Yixing Shenzhou Geosynthetics 300g/m² Short Fiber Polyester Nonwoven Geotextile
