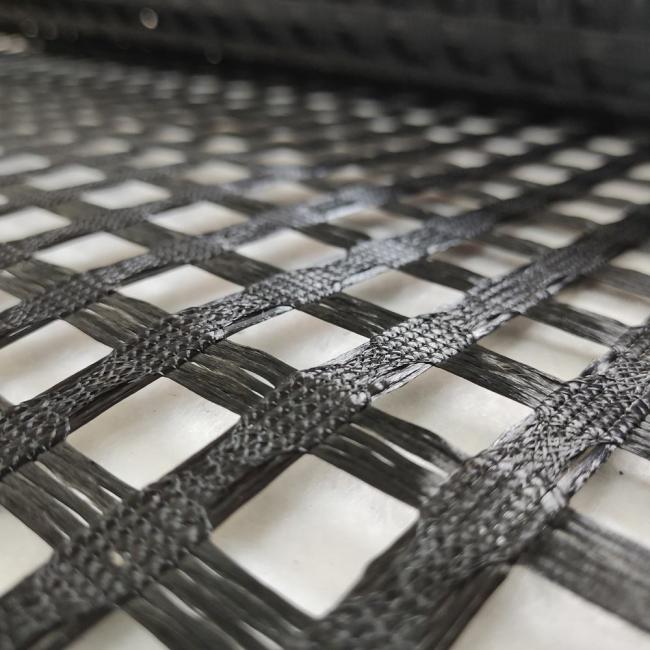

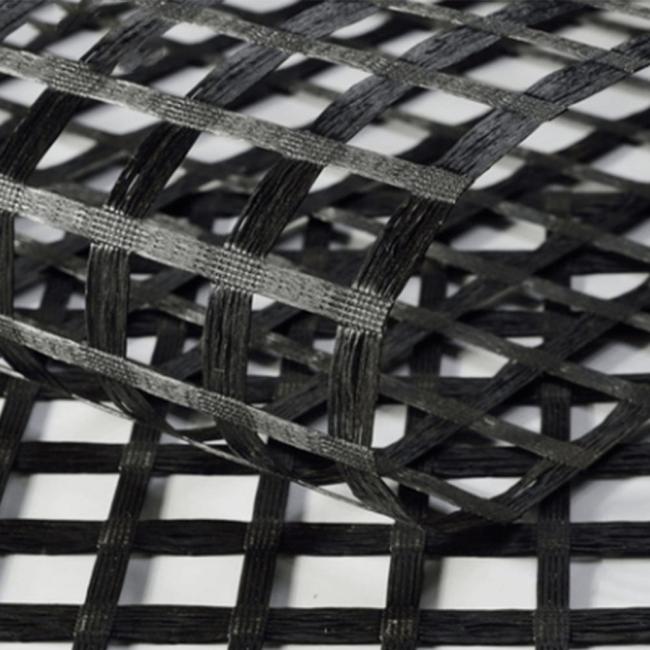

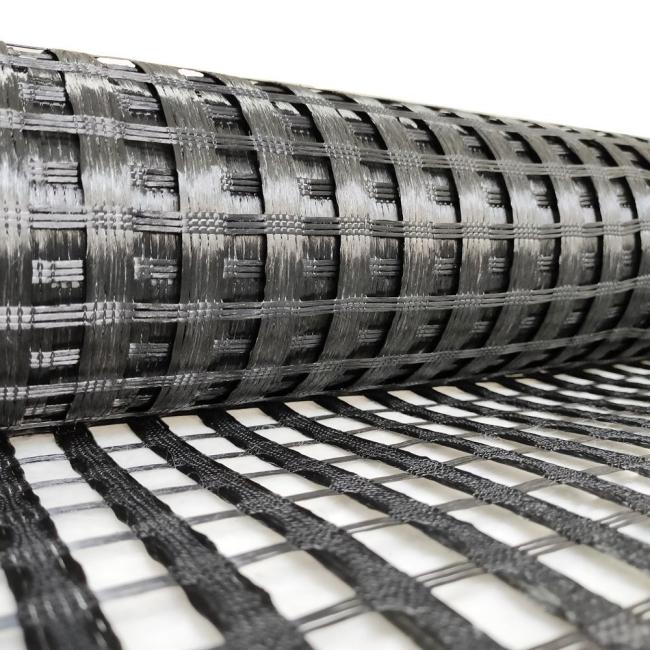

200-50KN/M 5.2x100M Polyester Geogrid For Reinforce Roads Base And Pavements
200-50KN/M 5.2x100M Polyester Geogrid For Reinforce Roads Base And Pavements
Main Raw Materials for Polyester Geogrid
Polyester filament (PET filament): The main material features high strength and low elongation.
Coating materials: Typically PVC (polyvinyl chloride), asphalt, or SBR (styrene-butadiene rubber), used to enhance aging resistance and improve adhesion to soil and asphalt.
Polyester Geogrid Production Process
1. Material Selection: High-strength polyester filament yarn.
2. Weaving/Warp Knitting: The filament yarns are interwoven into a grid structure.
3. Shaping: A heat-setting process stabilizes the grid into a stable, mesh-like shape.
4. Coating: The surface is coated with PVC or other polymers to enhance durability, UV resistance, and chemical resistance.
| Property | Test Method | PET | PET | PET | PET | |
| 40-40 | 50-50 | 60-60 | 80-80 | |||
| Ultimate tensile strength(1)(kN/m) | MD | EN ISO 10139 | 40 | 50 | 60 | 80 |
| CD | 40 | 50 | 60 | 80 | ||
| Elongation at maximum load(%) | MD | 13 | ||||
| CD | 13 | |||||
| Approximate mesh size(mm) | 12.7mm×12.7mm , 25.4mm×25.4mm , 40mm×40mm | |||||
| Roll Width (m) | 1m-6m | |||||
| Roll Length(m) | 50m-200m |
|||||
| Property | Test Method | PET | PET | PET | PET | |
| 100-100 | 120-120 | 150-150 | 180-180 | |||
| Ultimate tensile strength(1)(kN/m) | MD | EN ISO 10139 | 100 | 120 | 150 | 180 |
| CD | 100 | 120 | 150 | 180 | ||
| Elongation at maximum load(%) | MD | 13 | ||||
| CD | 13 | |||||
| Approximate mesh size(mm) | 12.7mm×12.7mm , 25.4mm×25.4mm , 40mm×40mm | |||||
| Roll Width (m) | 1m-6m | |||||
| Roll Length(m) | 50m-200m |
|||||
