SBR Coating Polyester Geogrid 100-30Kn/M PET Uniaxial Reinforced Soil Retaining Wall Expressway
SBR Coating Polyester Geogrid 100-30 Kn/m PET Uniaxial Reinforced Soil Retaining Wall Expressway
Materials and production process
1. Raw materials and structure
Use high-strength polyester industrial filaments, weave through warp knitting to form a mesh fabric, and then treat with PVC coating or resin coating. Some advanced processes add inorganic nanoparticles (such as nano calcium carbonate, silicon dioxide) to form a microporous structure, reduce material density (by 10%) and increase tensile strength (up to 94MPa or more).
2. Process advantages
Compared with traditional plastic grilles, polyester grilles have better creep resistance and chemical stability, especially through improved processes (such as microporous structure) to achieve a combination of lightweight and high strength
Yixing Shenzhou Types of PVC Coated Polyester Geogrids:
Uniaxial Polyester Geogrids:
Stronger in one direction, used for reinforcement in specific directions, such as retaining walls.
Biaxial Polyester Geogrids:
Strong in both directions, suitable for applications requiring reinforcement in all directions, like embankments and slopes.
100-30KN/M PET Uniaxial Polyester Geogrids Technical Specification (ASTM/ISO Standards)
| Property | 100 kN/m | 200 kN/m | 300 kN/m | Test Method |
|---|---|---|---|---|
| Tensile Strength (MD) | ≥100 kN/m | ≥200 kN/m | ≥300 kN/m |
ASTM D6637 ISO 10319 |
| Elongation at Break | ≤13% | ≤13% | ≤13% | ASTM D6637 |
| Creep Limit (50 yrs) | ≤2% | ≤2% | ≤3% | ISO 13431 |
| Aperture Size |
25.4*25.4mm / 50.8*50.8mm |
25.4*25.4mm / 50.8*50.8mm |
25.4*25.4mm / 50.8*50.8mm |
- |
Packing and Shipping
Selling packing: Customers' company Logo mark can be designed and added.
Outer packing: Packed in double layer woven bags to ensure smooth arrival and avoid rough handle.
Delivery Detail: Winthin 10 days after received your deposit
Delivery Detail: 100,000 square meters can be finished within 3 days
Delivery Time: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
Strict Quality Control :
SHENZHOU Geosynthetics has established advancing laboratory in China for internal inspecting. We founded strict quality control system from raw material to finished products testing. As national high tech eterprise, we obtained ISO9001:2008 & ISO14001:2004 quality & environment management system certification.
With top quality and professional management, we passed the CE certificate and Bureau Veritas Certification and SGS Certification.
PET Uniaxial Polyester Geogrids Application :

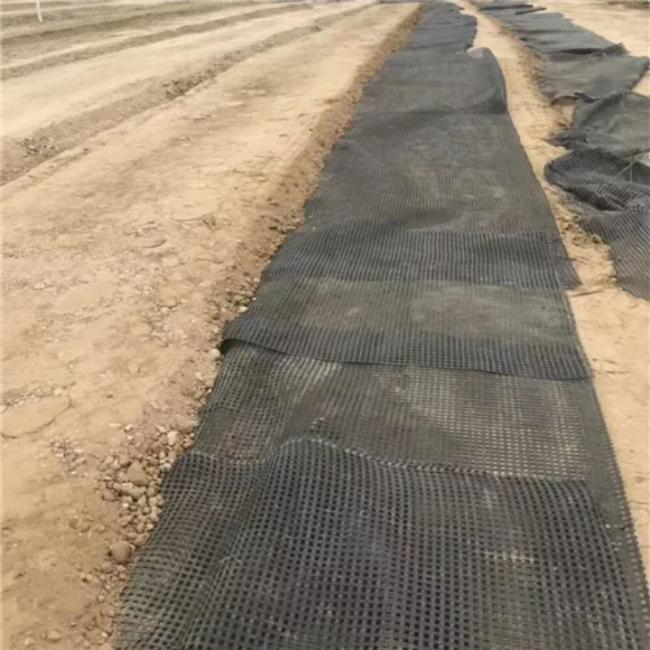

1. Reinforced Soil Retaining Walls
Heights up to 40m
Reduces required concrete by 60%
2. Steep Slope Stabilization
Angles up to 70°
Prevents landslides in mountainous terrain

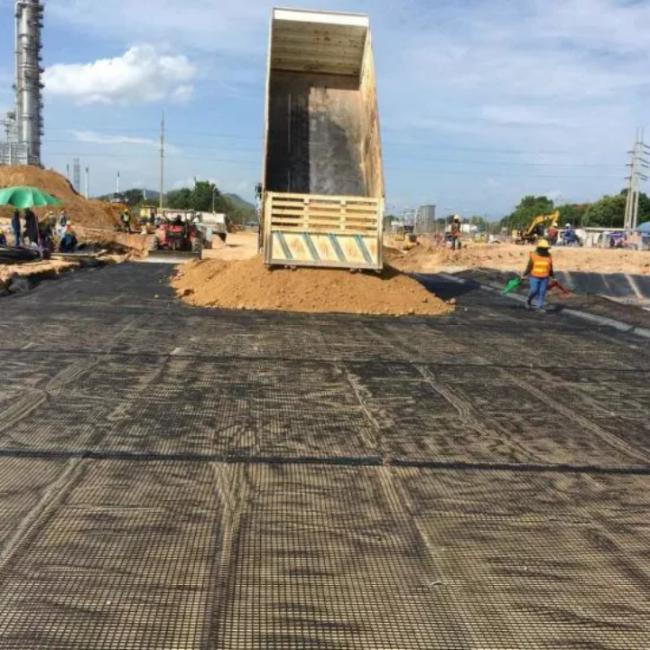

3. Transportation Infrastructure
Bridge approach embankments
High-speed railway foundations
4. Mining & Heavy Industry
Tailings dam reinforcement
Haul road stabilization
5. Coastal Protection
Revetment base reinforcement
Breakwater anchoring systems
For more expertise and solutions For 100-30KN Polyester Geogrids, please contact Yixing Shenzhou !
