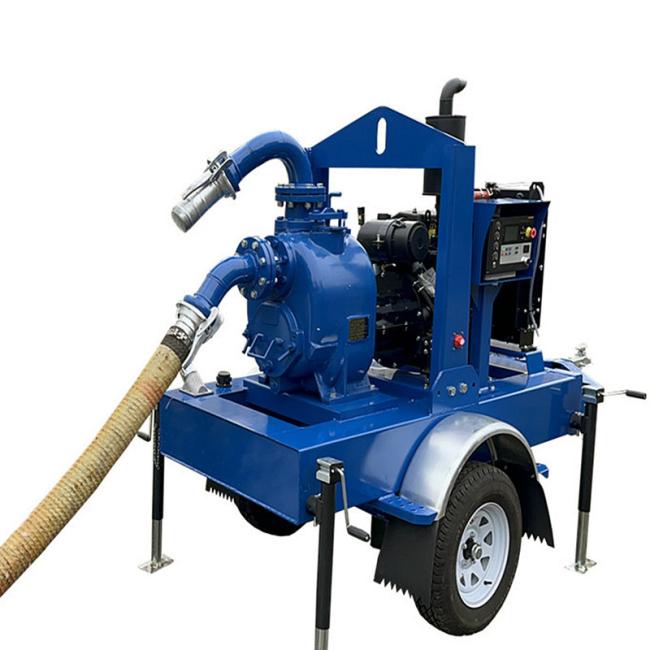

Manufacturer Trailer Mounted Water Pump Open Rack Self Priming Pump Trash Water Pump Set
Open-Frame Self-Priming Mobile Water Pump
This heavy-duty open-frame design portable pump combines self-priming capability with
exceptional mobility for versatile fluid transfer applications. Engineered with a robust
steel chassis and corrosion-resistant components.
Key features include:
Instant self-priming up to 8m suction lift without manual water filling .
Shock-absorbent frame with integrated lifting handles and optional wheel kit.
Universal diesel/electric power options for remote operations .
Dual-purpose ports supporting both rigid piping and flexible hose connections .
Maintenance-friendly layout with quick-access mechanical seal and impeller chamber.
Ideal for construction dewatering, agricultural irrigation, industrial fluid transfer, and
emergency flood control, its leak-proof design and dry-run protection ensure reliable
performance in challenging environments. The modular design allows easy customization
with optional strainers, pressure gauges, and automated control systems.
Can you do OEM for me?We accept all OEM orders,just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
Warranty service
Product Description
| Size | 4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm) | ||
| Max capacity | 3500GPM (221lps) | Max head | 140’(43m) |
| Max solids | 3”(76mm) | Max temperature | 160℉(71℃) |
| Materials of construction | Cast iron | Horsepower | 57HP-148HP |
| Item | Size | Casing | Impeller / Rotor | Drive | Flange | Seal |
| SPT4A60S-4024T | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | ANSI | Silicon Carbide |
| SPT4A60S-4LE2T FT4 | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT4A60S-C2.2T FT4 | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT4A60S-F3L | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT4A60S-QSF2.8P FT4 | 4 x 4 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-4045T | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-4045T FT4 | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | ANSI Spool | Carbon/Silicon Carbide |
| SPT6A60S-4045T PSO | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-4LE2X FT4 | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-C2.2TA FT4 | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-F4L | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A60S-QSF2.8P FT4 | 6 x 6 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
| SPT6A65S-F4L | 6 x 6 | CD4MCu | CD4MCu | Diesel Engine | NPT | Silicon Carbide |
| SPT8A60S-F6L | 8 x 8 | Cast Iron | Ductile Iron | Diesel Engine | NPT | Silicon Carbide |
The above parameters are optional, and the actual model selection is selected according to the actual working conditions required by users on site. Some conditions of the data beyond the above technical parameters table, you can consult Olsen pump industry sales engineer. We will provide professional selection service, recommend suitable for your model.
