Galvanized Metal Walkways Gratings / Industrial Walkway Grating 1.2M Width
1.2 M Width Galvanized Walkway Floor Gratings
Galvanized Walkway Floor Gratings Description:

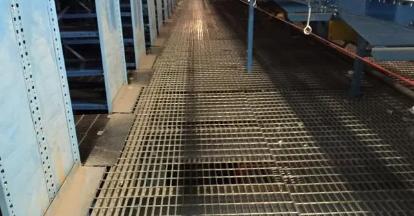

Galvanized Walkway Floor Gratings are widely used in the oil and gas industry, petro-chemical industry, mining industry and in power stations. When there's platform flooring has to be changed frequently, press welded grating is a good choice.
Serrated Swage-locked Steel Grating Specifications:
|
Product name |
Galvanized Walkway Floor Gratings |
|
Material |
Q195 |
|
Technique |
Press Welded, Manual Welded |
|
Bearing Bar Pitch |
25,30,34,40mm, etc. |
|
Cross Bar Pitch |
30,50,76,100mm, etc. |
|
Bearing Bar Thickness |
3-80mm |
|
Bearing Bar Width |
25-150mm |
|
Surface Treatment |
Galvanized |
|
Colour |
Silver |
|
Style |
Serrated, Flat |
Common Product Specifications (In mm)
|
Bearing bar pitch |
Cross-bar pitch |
Specification of bearing bar (width x thickness) |
|||||
|
20x3 |
25X3 |
32X3 |
40X3 |
20X5 |
25X5 |
||
|
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
|
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
|
|
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
|
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
|
|
60 |
50 |
G203/60/50 |
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
|
Bearing bar pitch |
Cross-bar pitch |
Specification of bearing bar (width x thickness) |
|||||
|
32x5 |
40x5 |
45x5 |
50x5 |
55X5 |
60X5 |
||
|
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
|
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
|
|
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
|
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
|
|
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |

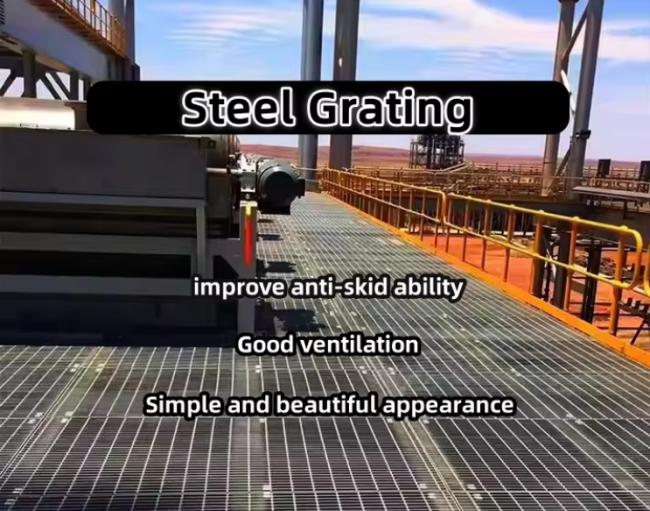

Serrated Swage-locked Steel Grating Features:
- Durable
- High Load-Bearing Capacity
- Improved Safety
- Maintenance Free
- Long Lifespan
- Aesthetics
- Easy Installation
Serrated Swage-locked Steel Grating Applications:
Steel gratings are widely used as stair tread, walkway, optional platform, catwalk stage, floor, showcase ground, ceiling, window, sun visor, fountain panel, ramp, lifting track, tree cover, trench cover, drainage cover, industrial truck, bridge construction, decorative wall, security fence, transformer reservoir, chair, shelve, stand, observation tower, baby carriage, substation fire pit, clean area panel, split obstacle or screen, food panel, etc.
