Outdoor Corrosion Resistant Galvanized Anti-slip Drainage Ditch Grating Covers For Platform And Sidewalk
Outdoor Corrosion Resistant Galvanzied Anti-slip Drainage Ditch Grating Covers For Platform And Sidewalk
Galvanized Steel Gratings Description:
Press welded steel gratings are made by arranging the bearing bar and cross bar in longitude and latitude order to certain distance. Cross bar is pressed into the bearing bar by high tension resistance welding which is controlled by computer. So we can produce high quality gratings with firm welding, smooth surface and high strength.
Galvanized Steel Gratings Specifications:
|
Bearing Bar (width x thickness) |
25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10 etc. I Bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. |
|
Bearing bar pitch |
12.5, 15, 20, 22, 25, 30, 32.5, 34, 35, 38, 40, 50, 60 ,80mm, etc. |
|
Cross bar pitch |
30, 50, 60, 76, 80, 100, 101.6, 120mm, etc. |
|
Surface treatment |
untreated, hot dipped galvanized, powder coated, painting etc. |
|

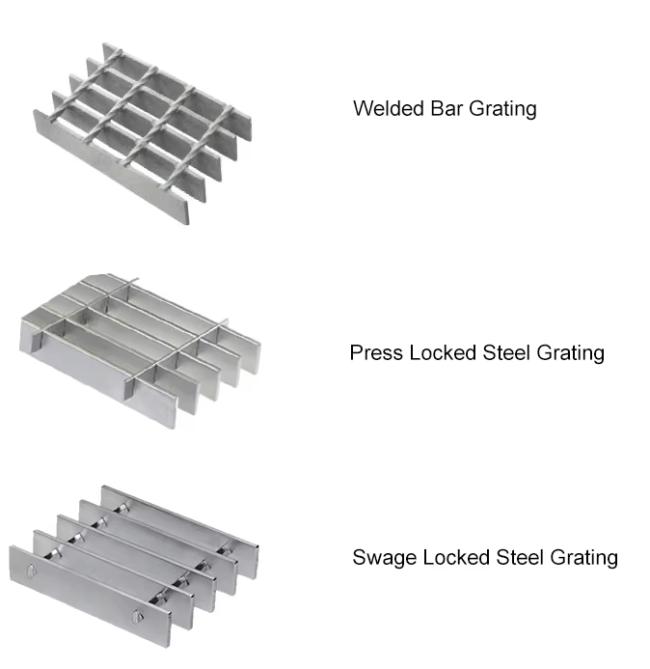

Grating style |
Plain, Smooth, Serrated(teeth), I bar |
|
Remarks: other size also can be customized according to customer’s request. |
|
Galvanized Steel Gratings Advantage:
1. Increased Durability
2. Increased Load-Bearing Capacity
3. Improved Safety
4. Reduced Maintenance
5. Increased Lifespan
6. Improved Aesthetics
7. Easy Installation
8. Improved Value

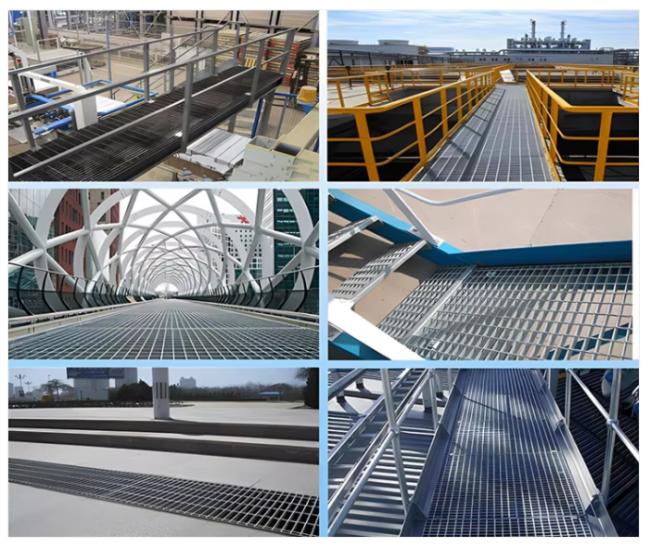

Galvanized Steel Gratings Applications:
• Parks
• Industrial buildings
• Airports
• Infrastructures
• Industrial areas
• Residential areas
• Customs areas
Our Company Profile:
Hebei Reinforce Pipeline Mesh Co., Ltd is an enterprise focusing on deep-sea energy pipeline protection. It is located at No.6, Ruilian Industrial Zone B, Shuguang East Street, Xicheng Industrial Zone, Raoyang County, Hengshui City, Hebei Province. Our company takes the steel wire mesh for concrete weight coating of submarine oil and natural gas pipelines independently developed and produced as its core product. We also produce safety rope nets around platforms, steel gratings, and vibrating screens.
