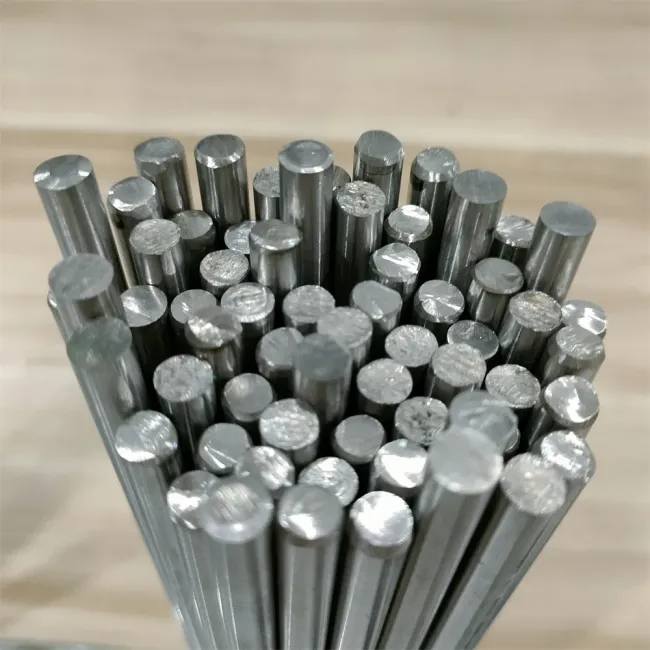

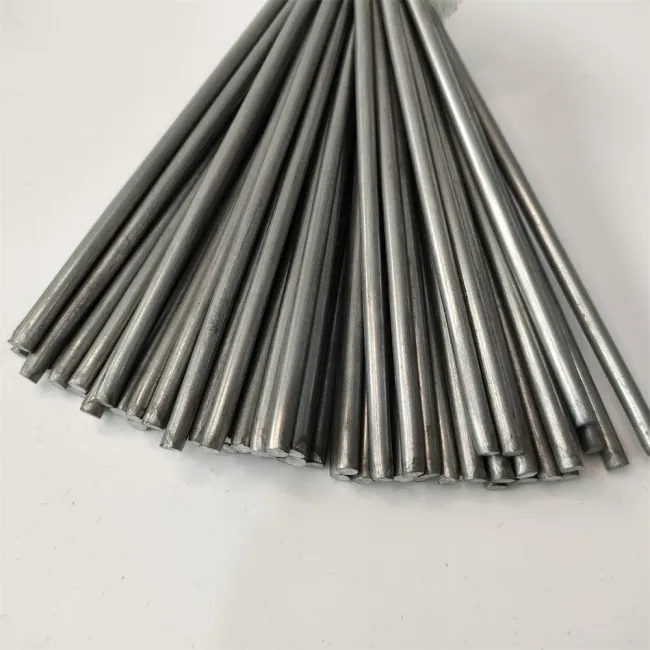

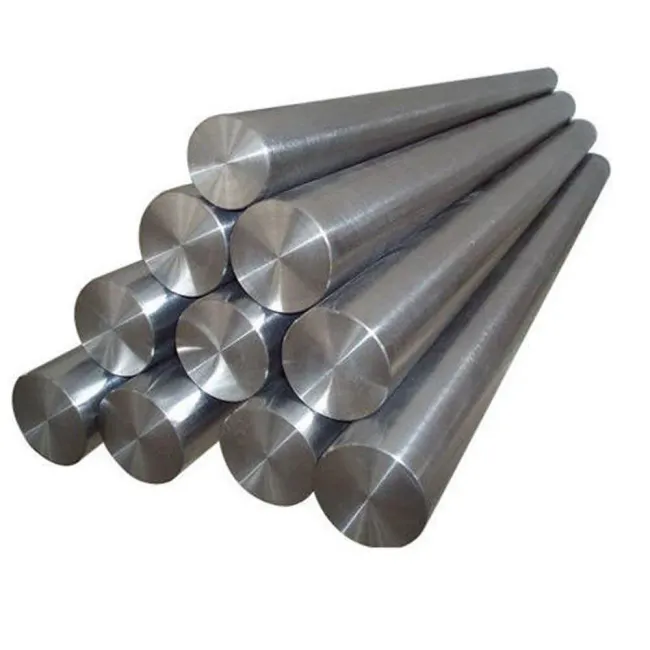

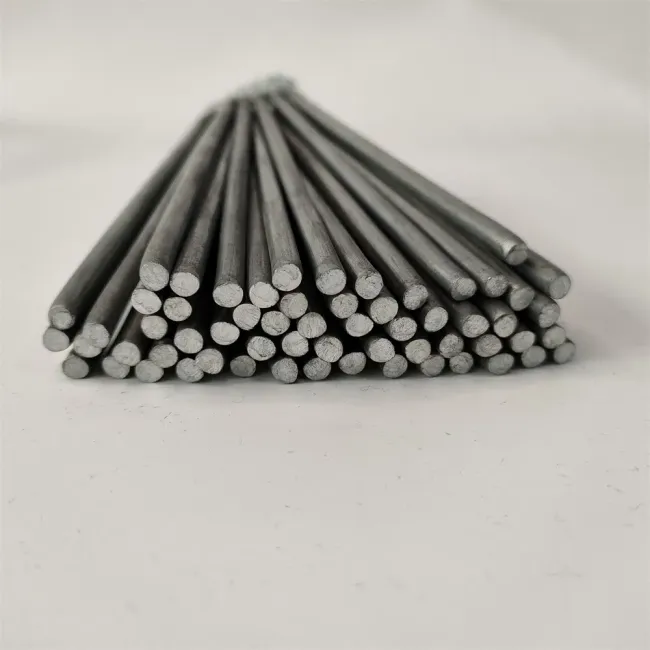

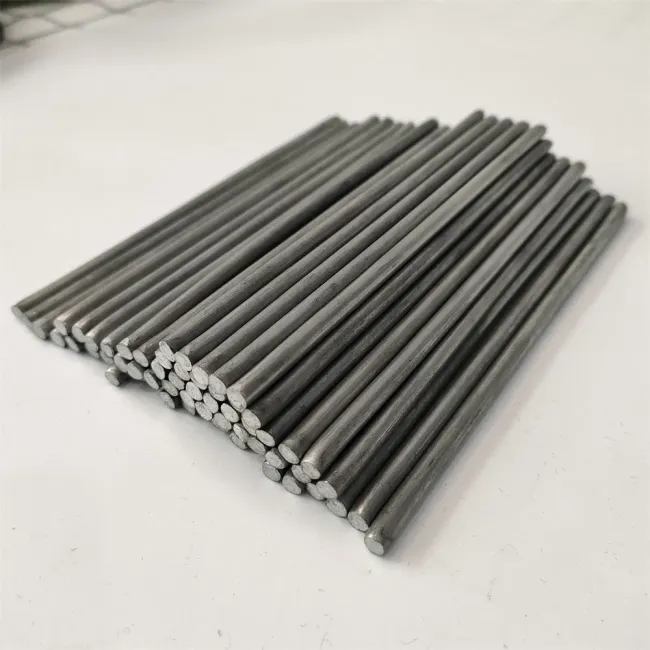

Nickel Alloy Bar Inconel 600 625 718 Incoloy 800 Monel 400 K500 Hastelloy C22 C-276
Basic Info.
Product Description
Nickel Alloy Bar Inconel 600 625 718 Incoloy 800, Monel 400 K500, Hastelloy C22 C-276
Inconel 625, a Nickel-Chromium-Molybdenum alloy with low Carbon and Niobium addition, has superior resistance to high temperature effects such as oxidation and carburization as well as to a wide range of corrosive environments of unusual severity, especially resistance to pitting and crevice corrosion. Typical applications for inconel 625 are seawater applications, aerospace components, chemical processing equipment, nuclear water reaction components.
Inconel series: 600,601,617,625,690,718,825
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
| Item | 600 | 601 | 617 | 625 | 690 | 718 | X750 | 825 |
| C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
| Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
| Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
| P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
| S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
| Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
| Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
| Ni | ≥72 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
| Co | -- | -- | 10-15 | ≤10 | -- | ≤1 | ≤1 | -- |
| Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
| Ti | -- | -- | ≤0.6 | ≤1.15 | -- | -- | 2.25-2.75 | 0.6-1.2 |
| Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
| Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
| Mo | -- | -- | 8-10 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
| B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
