Thermal Resistance Rtd Thermocouple Pt100 Heat Furnace Temperature Sensor

Price Negotiable
Price: Bargain
MOQ: 50 meters
Delivery Time: 5-21days
Brand: HUONA
Product Description

Thermal resistance rtd thermocouple pt100 heat furnace temperature sensor



Specifications



1.Style:Compensation Wire

2.Thermocouple RTD wire

3 wire stainless steel probe high temperature thermocouple RTD sensores PT 100
Thermocouple RTD wire Classification



1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.

2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.


Thermocouple Variety and Index
Variety Type Measurement Range(°C)
NiCr-NiSi K -200-1300
NiCr-CuNi E -200-900
Fe-CuNi J -40-750
Cu-CuNi T -200-350
NiCrSi-NiSi N -200-1300
NiCr-AuFe0.07 NiCr-AuFe0.07 -270-0


3 . Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire

Dimensions / Tolerance mm ) : 4.0+-0.25


Color code & initial calibration tolerances for thermocouple wire


Thermocouple Type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration

+/-

Conductor

Jacket Temperature Range

Standard

Limits

Special

Limits

Iron(+) vs.

Constantan(-)

J White/Red Brown

0°C to +285°C

285°C to +750°C

±2.2°C

± .75%

±1.1°C

± .4%

CHROMEL(+) vs.

ALUMEL(-)

K Yellow/Red Brown

-200°C to -110°C

-110°C to 0°C

0°C to +285°C

285°C to +1250°C

± 2%

±2.2°C

±2.2°C

± .75%

±1.1°C

± .4%

Copper(+) vs.

Constantan(-)

T Blue/Red Brown

-200°C to -65°C

-65°C to +130°C

130°C to +350°C

± 1.5%

±1°C

± .75%

± .8%

± .5°C

± .4%

CHROMEL(+) vs.

Constantan(-)

E Purple/Red Brown

-200°C to -170°C

-170°C to +250°C

250°C to +340°C

340°C+900°C

± 1%

±1.7°C

±1.7°C

± .5%

±1°C

±1°C

± .4%

± .4%


Color Code & Initial Calibration Tolerance for Extension Wire


Extension type ANSI Color Code Initial Calibration Tolerances
Wire Alloys Calibration

+/-

Conductor

Jacket Temperature Range

Standard

Limits

Special

Limits

Iron (+) vs. Constantan(-) JX White/Red Black 0°C to +200°C ±2.2°C ±1.1°C
CHROMEL (+) vs. ALUMEL (-) KX Yellow/Red Yellow 0°C to +200°C ±2.2°C ±1.1°C
Copper(+) vs. Constantan(-) TX Blue/Red Blue -60°C to +100°C ±1.1°C ± .5°C
CHROMEL(+) vs. Constantan(-) EX Purple/Red Purple 0°C to +200°C ±1.7°C ±1.1°C


PVC-PVC Physical Properties


characteristics Insulation jacket
Abrasion Resistance Good Good
Cut Through Resistance Good Good
Moisture Resistance Excellent Excellent
Solder Iron Resistance Poor Poor
Service Temperature

105℃ continuous

150℃ single

105℃ continuous

150℃ single

Flame Test Self-extinguishing Self-extinguishing

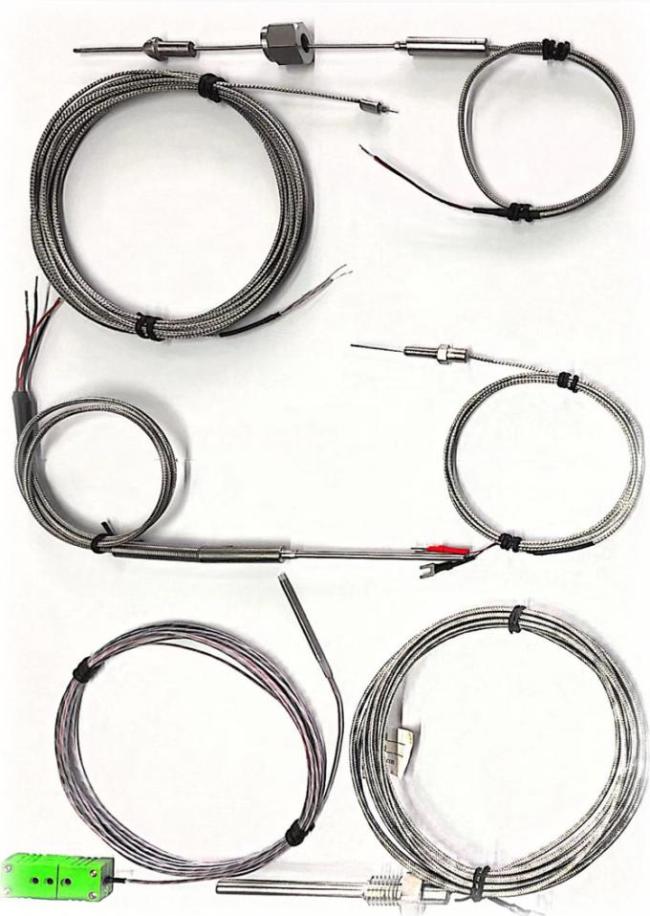

Thermal Resistance Rtd Thermocouple Cable Pt100 Heat Furnace Temperature Sensor 0
