OEM 48MP 8K 1/2.25 inch HDR CMOS USB2.0 High Speed 4K Camera Module Sensor Document Scan USB Camera Modules with 6pcs LEDs

Product Description

Wide Angle Camera Module

• The S5KGM1 is a CMOS image sensor with an effective resolution of 48 megapixels (output resolution of 12 megapixels). The S5KGM1 HD camera module features an electronic rolling shutter and global reset shutter in a 1/2-inch optical format, providing a normal frame rate of 30 fps at 12 megapixel resolution, video frame rates up to 120 fps at Full HD resolution, and video frame rates up to 240 fps at HD resolution.

Industrial Camera Module

• The S5KGM1 uses ISOCELL Plus technology to significantly improve the light sensitivity and color fidelity of the 0.8 μm pixel, resulting in more accurate and clearer photos. The S5KGM1 USB webcam module uses Tetrapixel technology to simulate large pixels, taking bright 3 megapixel photos, while using a re-mosaic algorithm to create detailed 12 megapixel high-resolution images. The image sensor is equipped with intelligent WDR technology to capture more detailed and vivid photos even in mixed lighting conditions.

 S5KGM1 Full HD Camera Functions and Features

1)ISOCELL Plus Technology: Reduces crosstalk between pixels, improves color fidelity and light sensitivity.
2)Smart-ISO: Dynamically adjusts ISO according to the scene, optimizes dynamic range and noise control.
3)High-speed focus: Supports PDAF (phase detection autofocus) to improve focusing speed
4)HDR support:
- Real-time HDR: Preserves more light and dark details.
- Staggered HDR: Reduces motion artifacts.
5)Low-power design: Optimizes power consumption
6)Multi-camera collaboration: Supports collaboration with ultra-wide-angle, telephoto and other sensors

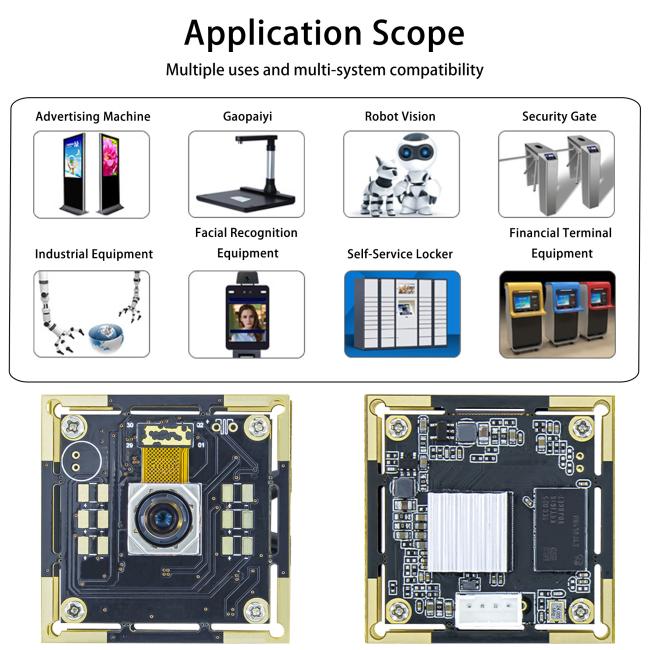

CMOS Camera Module Applications

Smartphones, tablets, smart home devices, car cameras, drones, AR/VR devices, industrial applications, machine vision, security monitoring, medical equipment, Internet of Things (IoT) devices, sports cameras, etc.

Specifications:8MP wide angle lens Module
