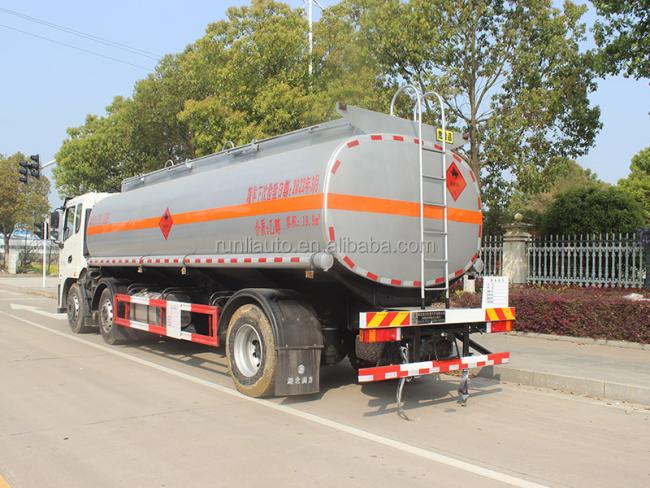

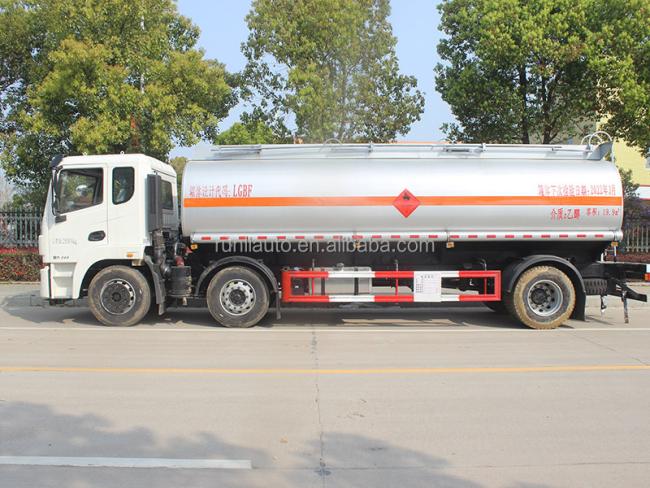

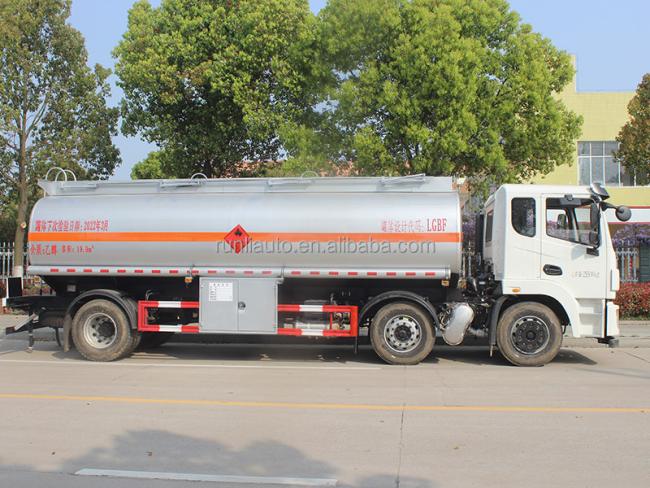

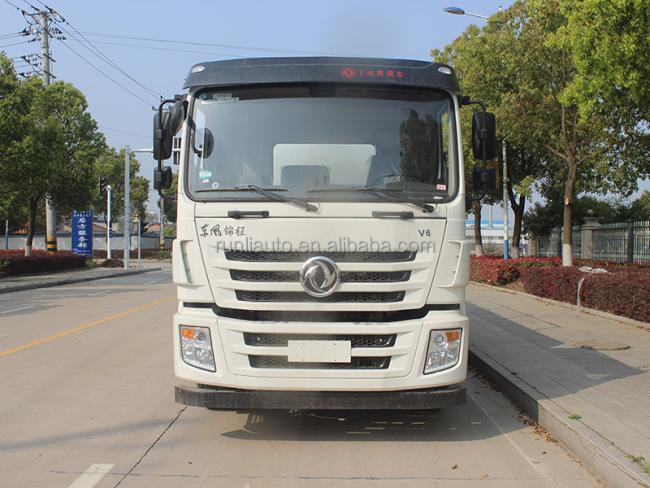

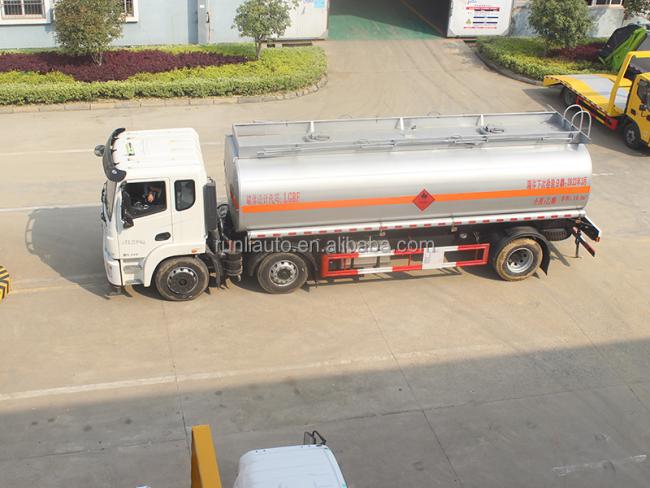

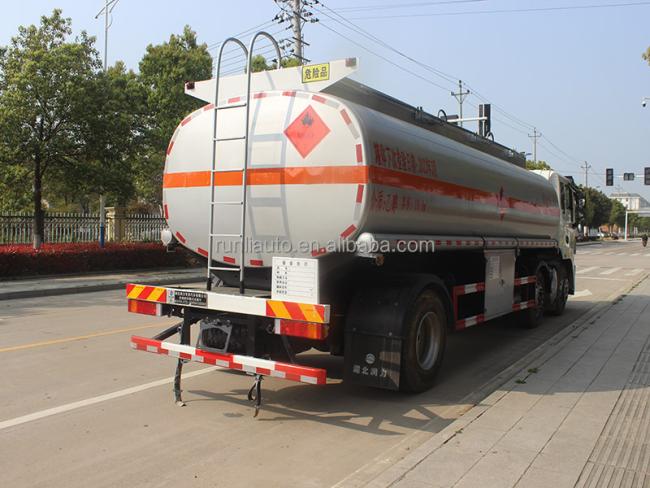

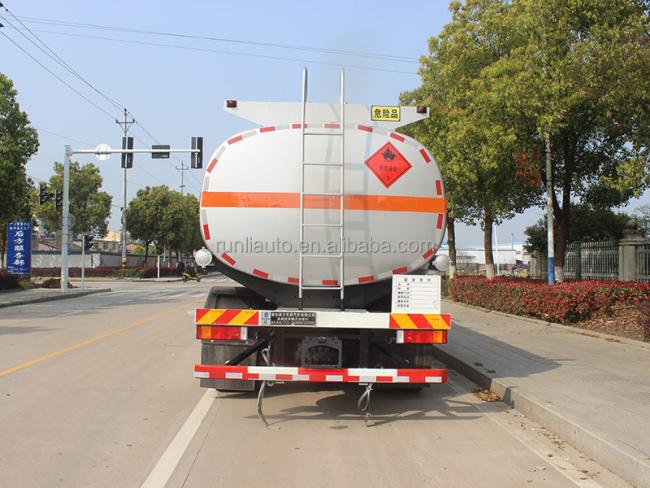

Factory Direct Price Dongfeng Jincheng 6x2 19.9cbm Flammable Fluid Methanol Crude Oil Chemical Tank Truck
| Overall Dimensions (mm) | 10300x2550x3650 | ||
| Cab | Brand | Dongfeng Jincheng | |
| Capacity (people) | 2/3 | ||
| Position of Driver | LHD (Left hand drive) | ||
| Chassis | Engine | Brand | YUCHAI |
| Model Number | YC6S06 245-60 | ||
| Displacement (ml) | 6234 | ||
| Fuel Type | Diesel oil | ||
| Power (kw/ps) | 180/245 | ||
| Emission Standard | Euro 6 | ||
| Transmission | Brand | FAST | |
| Model number | 8JS95 | ||
| Type | 8MT, 8 forward & 2 reverse gears | ||
| Wheelbase (mm) | 1995+4200 | ||
| Axle | Number | 3 | |
| Tire | Drive type | 6x2 | |
| Amount & Distribution | 8 (4 tires in the front, 4 tires on the back) | ||
| Specification | 295/80R22.5 18PR vacuum tire, with a spare tire | ||
| Approach Angle (°) | 29 | ||
| Departure Angle (°) | 10 | ||
| Front Overhang (mm) | 1475 | ||
| Rear Overhang (mm) | 2530 | ||
| Tank | Material | Q235 carbon steel | |
| Dimensions (mm) | 7200×2380×1580 | ||
| Nominal Capacity (L) | 19900 | ||
| Actual Capacity (L) | 18980 | ||
| Weight | Gross Weight (kg) | 25500 | |
| Rated Load (kg) | 15065 | ||
| Curb Weight (kg) | 10305 | ||
| Safety Devices | 1. Tire blowout emergency handling device 2. Front collision warning system 3. Lane straying warning system 4. ABS 5. Speed limiter 6. Front disc/rear drum brake 7. front-installed exhaust pipe | ||
| Standard Chassis Configuration | 1. Central control lock 2. Original A/C 3. Electricity-driven window glass 4. Air braking 5. Air-cut brake 6. Power steering 7. Clutch steering 8. Air horn | ||
| Standard Superstructure Configuration | The tank is made of Q235 carbon steel, and is equipped with aluminum alloy manhole, aluminum alloy subsea valve, subsea valve sound and light alarm, emergency shutoff valve, vehicle-mounted copper gear pump(capable of pumping in and out), rear ladder, folding guardrails at both sides on the top of the tank, two fire extinguishers, two oil pipes with the same length as the pipe box and quick connector, silver gray tank color, reflective tape,reflective strip, reflective plate, reflective sign, two ordinary tank mouths, safety valve bursting disk. | ||
Packaging
- Naked or waxed.
-->Container (20GP, 40GP, 40HQ, 40FR).
-->Ro-Ro shipping.
-->Bulk ship.
-->Flat rack.
etc.
Shipping
- By sea or by rail, at customer request.
1. Warranty period: 1 year since our customer receives his products.
2. Necessary documents: Operation manuals and guiding videos.
3. Troubleshooting: If any questions about operation arises, contact us to resolve your problems.
Honorary certificate
Factory snapshots
Product delivery ceremony (China customers)
Introduction to our factory
Hubei Runli Special Automobile Co., Ltd is established on January 19th, 2009, and its registered capital is 5,000.00 million CNY. Our company is permitted by China Ministry of Industry and Information Technology to produce special automobile and hazardous chemicals tank body. Besides, our company is credited with such titles as “Little Giant for Specialized,Precise,Unique and Innovative Automobile Production”,“China High-tech Enterprise”,“Enterprise With Excellent Credit Standing (Hubei province, China)”,“Provincial Enterprise Technology Center (Hubei province, China)” and “Special Automobile Export Enterprise (Hubei province, China)”.
Our factory covers an area of 120000 square meters, and has the capacity of producing 5,000 special automobiles each year. There are 5 major types of products we concentrate on manufacturing – Hazardous chemicals transportation truck, sanitation truck(sprinkler truck,water tanker truck), tow truck, high-altitude operation truck and emergency relief truck.
Our company has passed the authentication below:
-Product quality: GB/T19001-2016(ISO 9001:2015)
-Environment protection: GB/T45001-2020/ISO45001-2018
-Worker health and safety protection: GB/T28001-2011/OHSAS18001:2007
-After-sale service: GB/T27922-2011(Chinese National Standard)
-AAA Enterprise Credit Rating Certification (Hubei province)
-CCC Certification (CCC is abbreviation of China Compulsory Certificate).
And the product qualification ratio of our company reaches 99.5%.
Moreover, our products have been exported to over 20 countries such as Philippine,Cambodia,Tanzania,Costa Rica,Bolivia,Chile,Republic of Columbia,Ethiopia,Venezuela, etc..
Our company holds the faith that “quality, credit standing, technology and full-process service” is key to serving customers and aims to provide high-quality special automobile to clients all over the world.
