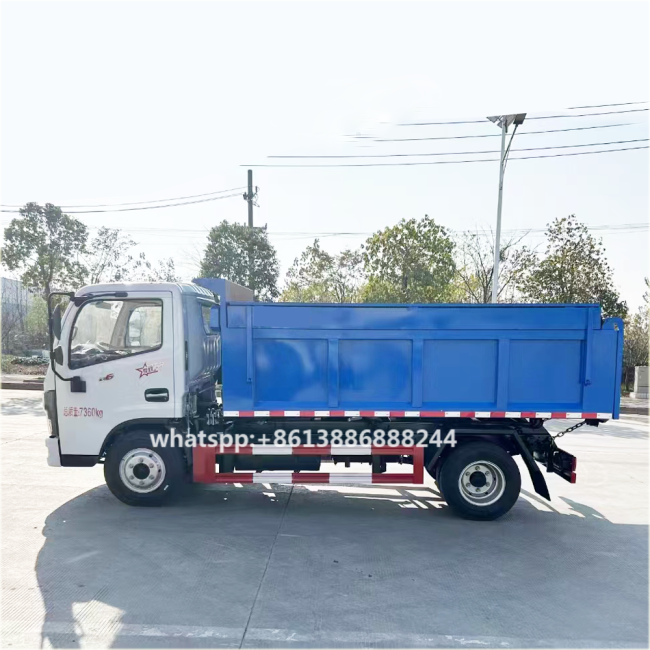

Factory Low Price DFAC Dump Truck Tip Lorry Unimog Truck

Price Negotiable

Price: CN¥76,645.42/units 8-17 units

MOQ: 8 units

Delivery Time: Negotiable

Brand: DONGFENG

Product Description

Driving form:	4X2
Wheelbase:	3308mm
Body length:	5700mm
Body width:	2020m m
Body height:	2330 m
Front wheel base:	1525mm
Rear wheel base:	1498mm
Vehicle weight:	3810kg
Rated load:	3320kg
Total mass:	7360kg
Tonnage class:	Light truck
Approach Angle:	Twenty-one degree
Departure Angle:	16 degrees
Market segments:	Engineering transportation
Engine type:	yunnei
Number of cylinders:	4-cylinder
Fuel Type:	Diesel oil
Displacement:	1999m L
Emission standard:	radish
Maximum horsepower:	84 horsepower
Maximum output power:	93kW
Maximum torque:	220N·m
Maximum torque speed:	1900-2100rpm
Rated speed:	3000rpm
Engine form:	4 cylinders in line, direct injection, pressurized intercooling, electric control common rail
Container length:	3600m m
Container width:	1800m m
Container height:	500m m
Container form:	self-discharging
Hydraulic cylinder brand model:	90 double tops
Container thickness:	2mm pattern sole
Cab:	single Row
Cab width:	1735mm
Transmission model:	6-speed transmission
Forward gear:	6 gear
Number of reversals:	one
Frame size:	170×65×6-760mm
Front axle description:	1058 Bridge
Front axle allowable load:	1570kg
Rear axle description:	1059 Shorten the bridge
Rear axle allowable load:	2925kg
Speed Ratio:	4.875
Number of spring pieces:	9/10 + 8
Number of tires:	six
ABS Anti-lock:	Yes.
Form of air conditioning:	Manual operation
Power Windows:	Yes.
Electronic central lock:	Yes.
Parking brake:	Cutoff brake
