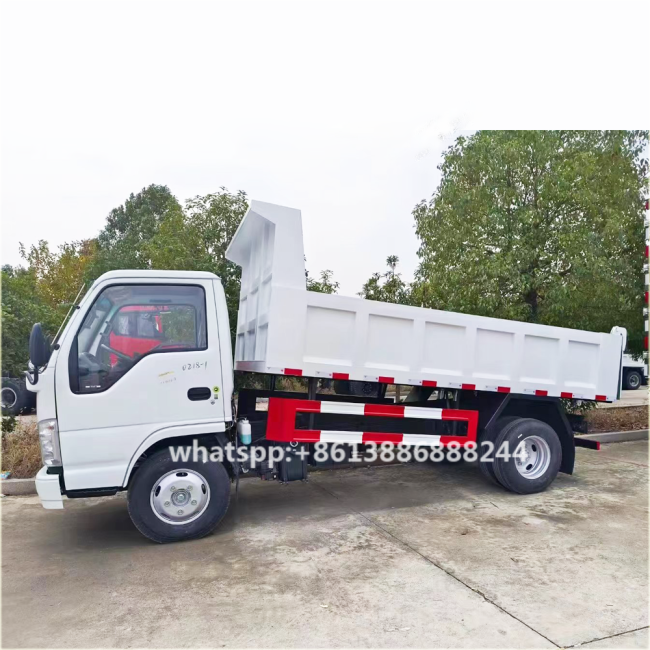

Factory Low Price I Suzu Back Flip Dump Tip Truck Dumping Truck
Price:
CN¥78,814.63/units 8-17 units
MOQ:
8 units
Delivery Time:
Negotiable
Brand:
C NJ
Product Description
| Driving form: | 4X2 |
| Wheelbase: | 3600mm |
| Body length: | 570m m |
| Body width: | 1960m m |
| Body height: | 2250 m |
| Front wheel base: | 1520mm |
| Rear wheel base: | 1590mm |
| Vehicle weight: | 3700kg |
| Rated load: | 3470kg |
| Total mass: | 7300kg |
| Tonnage class: | Light truck |
| Approach Angle: | Twenty-one degree |
| Departure Angle: | 16 degrees |
| Market segments: | Engineering transportation |
| Engine type: | I suzu |
| Number of cylinders: | 4-cylinder |
| Fuel Type: | Diesel oil |
| Displacement: | 2999mL |
| Emission standard: | Euro 6 |
| Maximum horsepower: | 120 horsepower |
| Maximum output power: | 88kW |
| Maximum torque: | 220N·m |
| Maximum torque speed: | 1900-2100rpm |
| Rated speed: | 3000rpm |
| Engine form: | 4 cylinders in line, direct injection, pressurized intercooling, electric control common rail |
| Container length: | 3700m m |
| Container width: | 1750m m |
| Container height: | 800 m |
| Container form: | self-discharging |
| Hydraulic cylinder brand model: | 90 double tops |
| Container thickness: | 2mm pattern sole |
| Transmission model: | 5-speed transmission |
| Forward gear: | Fifth gear |
| Number of reversals: | one |
| Frame size: | 170×65×6-760mm |
| Front axle description: | 1058 Bridge |
| Front axle allowable load: | 1570kg |
| Rear axle description: | 1059 Shorten the bridge |
| Rear axle allowable load: | 2925kg |
| Speed Ratio: | 4.875 |
| Number of spring pieces: | 9/10 + 8 |
| Number of tires: | six |
| ABS Anti-lock: | Yes. |
| Form of air conditioning: | Manual operation |
| Power Windows: | Yes. |
| Electronic central lock: | Yes. |
| Parking brake: | Cutoff brake |
