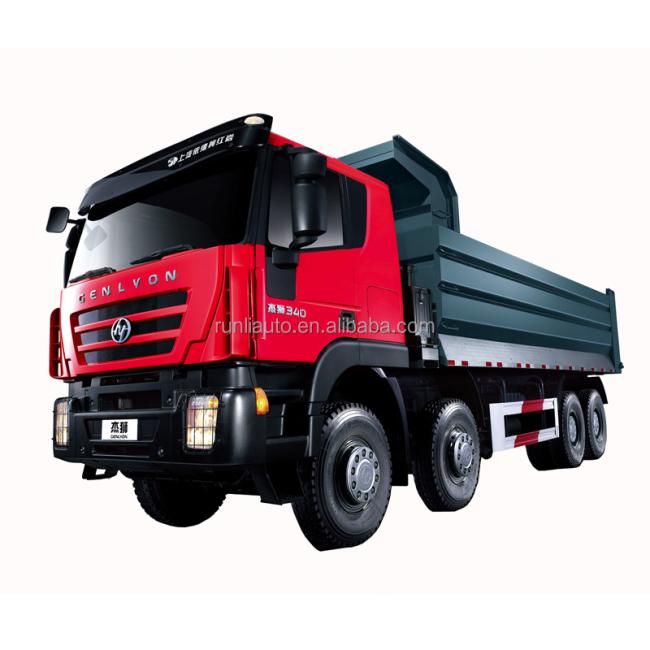

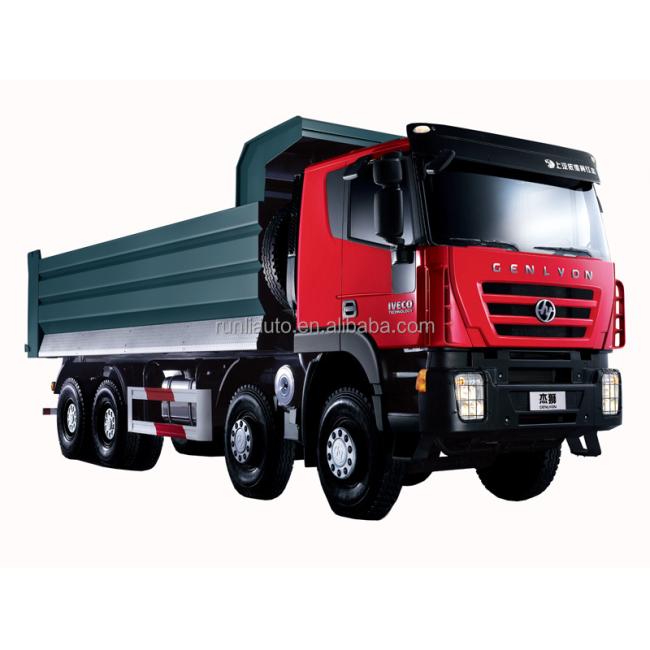

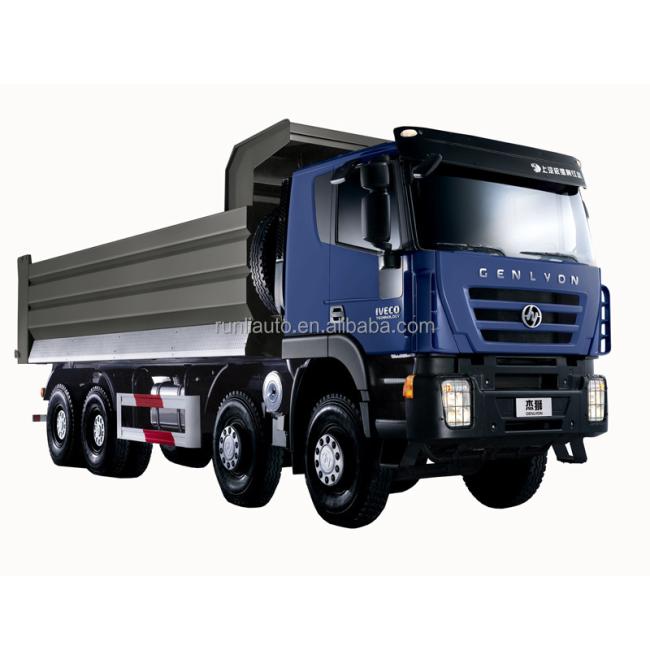

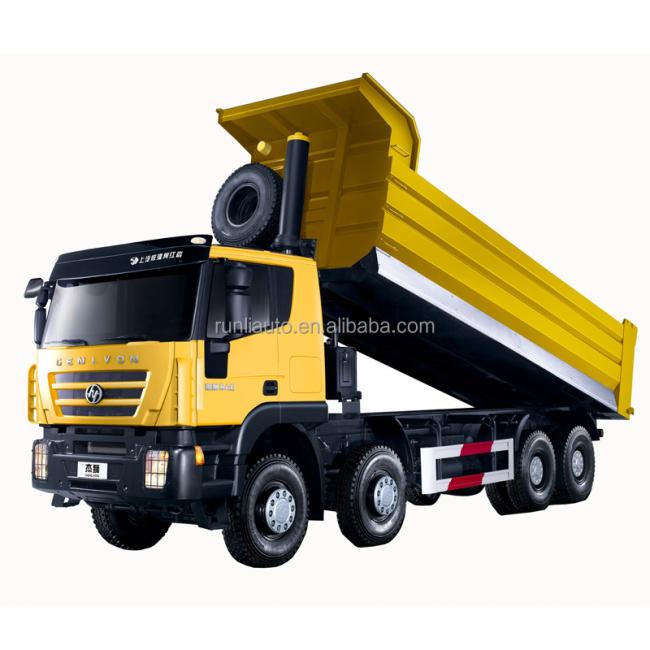

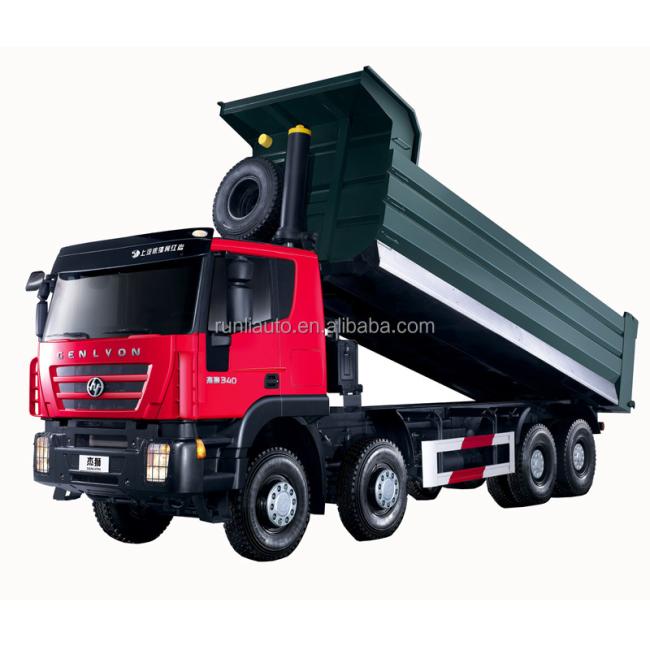

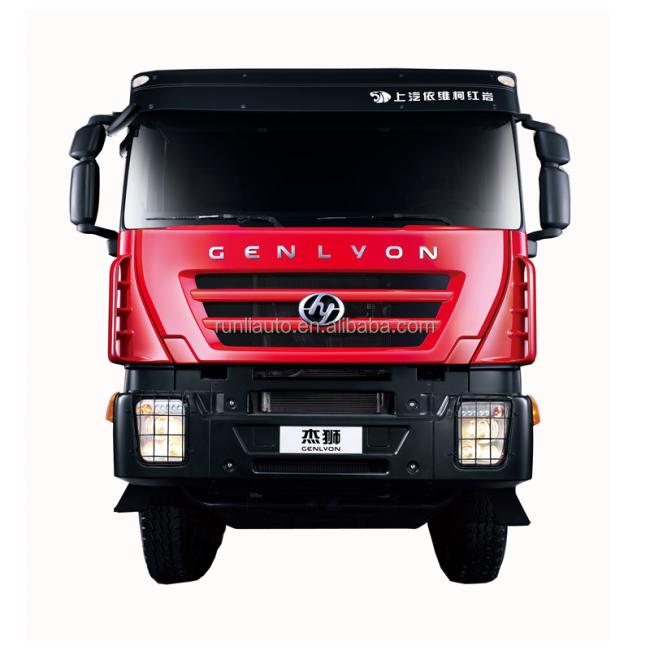

Hongyan 8x4 Dump Truck Hongyan 40 Ton Dump Truck Hongyan Heavy Dump Truck
hongyan 8x4 dump truck hongyan 40 ton dump truck hongyan heavy dump truck
| Products Technical Specification | ||
| Brand-Series | HONGYAN-KINGKAN | |
| Chassis Model | CQ3254HMG384E | |
| Emission Standard | Euro3 | |
| Fuel type | Diesel | |
| Cabin | KINGKAN Flat Roof,Long Cab | |
| Country of origine | China | |
| Whole vehicle main dimensions (mm) | Overall dimensions (L×W×H) | 10400*2500*3600 |
| Wheel base | 1800+3575+1400 | |
| Front overhang | 1435 | |
| Rear overhang | 2075 | |
| Front /rear tread(mm) | 2006/1850 | |
| Weight data (kg) | Gross weight (kg) | 31000 |
| Loading weight (kg) | 15800 | |
| Curb weight(kg) | 15070 | |
| Cargo body Description | Crago body dimensions (mm) | 7400*2300*1600 |
| Crago body thickness | side 8mm thickness;bottom 10mm thickness | |
| Lifting System | front hoisting | |
| Whole vehicle main performance | Max. speed (km/h) | 80 |
| Max. grade ability (%) | 35 | |
| Approach/Departure(°) | 25/15 | |
| Leaf Spring NO. | 2003/3/4 | |
| Engine | Model | WP10.380E32 |
| Maximum power | 280kw /380hp | |
| 4 stroke direct injection diesel engine | ||
| 6 cylinder in-line with water-cooling, turbo-charging and inter-cooling | ||
| Displacement (L) | 9726 | |
| Engine Manufacturer | weichai | |
| Clutch | Model | Φ430 Diaphragm Spring |
| Transmission | Brand and Model | FAST,10JSD160 |
| Number of gears | 10 forward gears & 2 reverse | |
| Axle | Front Load capacity (kg) | 6500/6500 |
| Rear Load capacity (kg) | 18000/18000 | |
| Steering | Model | Power assisted |
| Steering Wheel | left/right hand drive | LHD |
| Frame | Type | Bottle neck, double chassis |
| Dimension (mm) | 940-865 (W) 317 (H) | |
| Section thickness (mm) | 8+8 | |
| Electric device | Rated voltage | 24V |
| Batteries | 2 x 12v, 165Ah | |
| oil tank capacity | 350 liters Alluminum with lockable fuel cap | |
| Tyres & Quantity | 12.00R20 & 12+1 | |
Hubei Runli Special Automobile Co., Ltd is the big domestic enterprise of China, having both the R&D capabilities for special vehicle manufacture and the permission with notice of State Development and Reform Commission.
The main products are
1. Water truck ,Water Tank
2. Fuel tanker truck, Oil Truck,
3. Fire engine truck
4.Truck mounted crane
5.Dump truck,tipper,heavy duty truck
6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
7. Bulk cement truck
8. Concrete mixer truck
9. Garbage truck,swing arm garbage truck,Self-loading garbage truck,garbage compactor truck,sealed garbage truck
10. Fecal suction truck,sewage suction truck
11. High altitude working truck
12. wrecker truck
13. LED advertisement truck
14. Chemical liquid truck
15. Van truck,insulated truck,refrigeration truck
16. Road sweeper truck,wash and sweep truck
17. High pressure cleaning truck,cleaning and sewage suction truck
18. flatbed transport truck
19. asphalt distributor truck, ynchronous chip sealer truck
20. Dust suppression truck, mist cannon truck
21. Cargo truck, lorry truck
22. Car carrier truck
23. Ambulance,hearse,
24. Tractor Truck
25. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer
Our truck brand :
Dongfeng, sinotruk HOWO, FAW, FOTON, SHACMAN, beiben, CAMC, I S U Z U,GAC H I NO, JAC, JMC, X C M G, IVE CO hongyan , dayun, yuejin, CDW, changan, and so on.
Welcome to visit our company in China !
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
