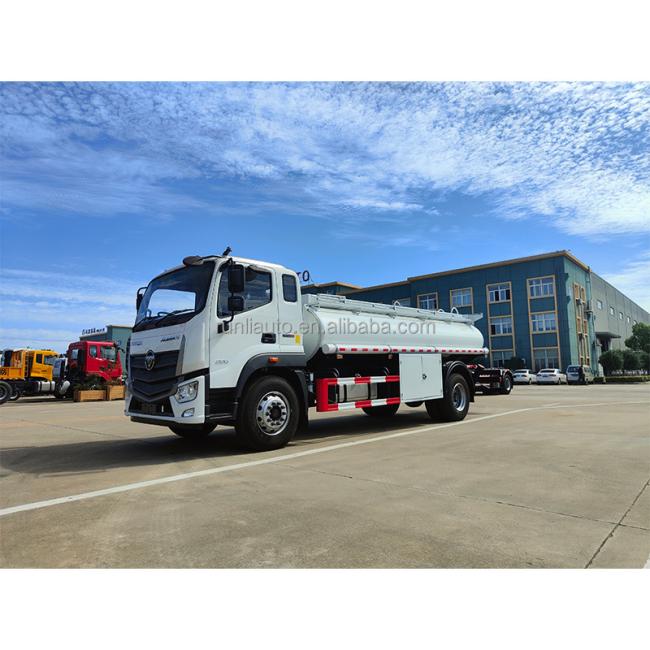

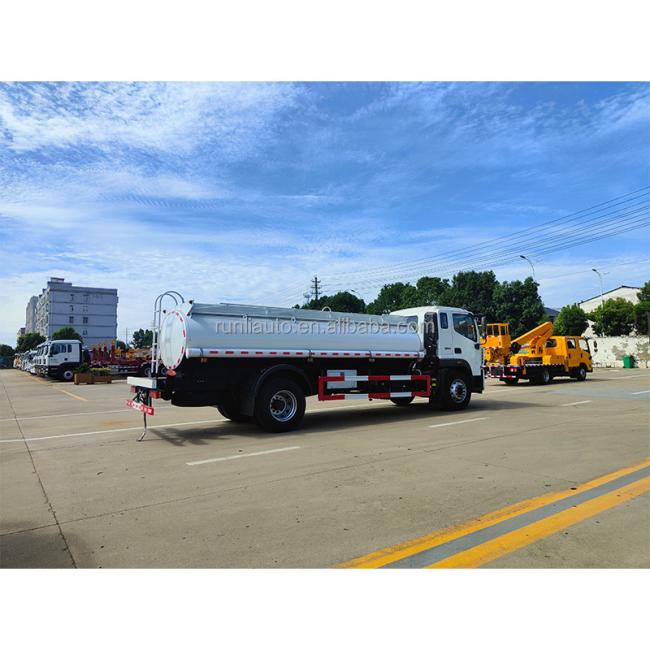

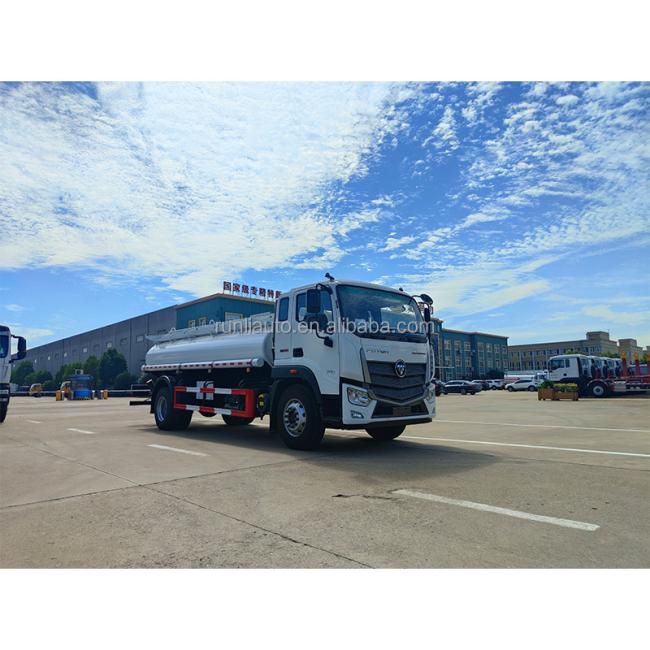

FOTON AUMARK 4x2 Fuel Tank Truck 10000 Liter Fuel Delivery Truck Bowser
Price:
CN¥143,746.32/units >=1 units
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
FOTON
Product Description
Products Description
|
Vehicle model
|
|
AUMARK-S38
|
|
|
Cabin
|
|
Single row/W2060/left rudder
|
|
|
Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm
|
6730×2138×2440
|
|
|
|
Wheel base(mm)
|
3800
|
|
|
Weight data
|
Curb weight(kg)
|
3528
|
|
|
|
Gross vehicle weight(kg)
|
11995
|
|
|
|
Persons in cab
|
3
|
|
|
Whole vehicle main performance
|
Max. speed(km/h)
|
105
|
|
|
ENGINE |
Model
|
F3.8s3141
|
|
|
|
Emissions standards
|
EuroⅢ
|
|
|
|
Displacement(L)
|
3.76
|
|
|
|
Rated Power(kw/rpm)
|
105
|
|
|
|
Max torque (N.m/rpm)
|
450
|
|
|
Gearbox
|
Model
|
6S558
|
|
|
Front axle
|
Type/Mainreducetion ratio
|
3.6T
|
|
|
Rear axle
|
Type/Mainreducetion ratio
|
6.5T/5.286
|
|
|
Suspension
|
Front suspension/Leaf spring number
|
9
|
|
|
|
Rear suspension/Leaf spring number
|
8+6
|
|
|
Brake system
|
Service brake
|
Drum pneumatic braking
|
|
|
|
Parking brake
|
Brake gas brake
|
|
|
|
Auxiliary brake
|
Engine exhaust brake
|
|
|
Wheels and tyre size
|
|
6+1/( 8.25R20 14PR)
|
|
|
Tank
|
top color
|
optinal
|
|
|
|
Volume
|
4m3
|
|
|
|
Tank material and thickness
|
Part of the tank material,thickness:Q235B carbon steel, 4mm
Head material and thickness: Q235B carbon steel, 5mm |
|
|
|
Emergency shut-off valve
|
Quantity: 1
Material thickness: aluminum alloy |
|
|
|
Manhole cover
|
Type: Aluminum European standard breathing valve with tank port
Quantity: 1 Diameter: 500mm |
|
|
|

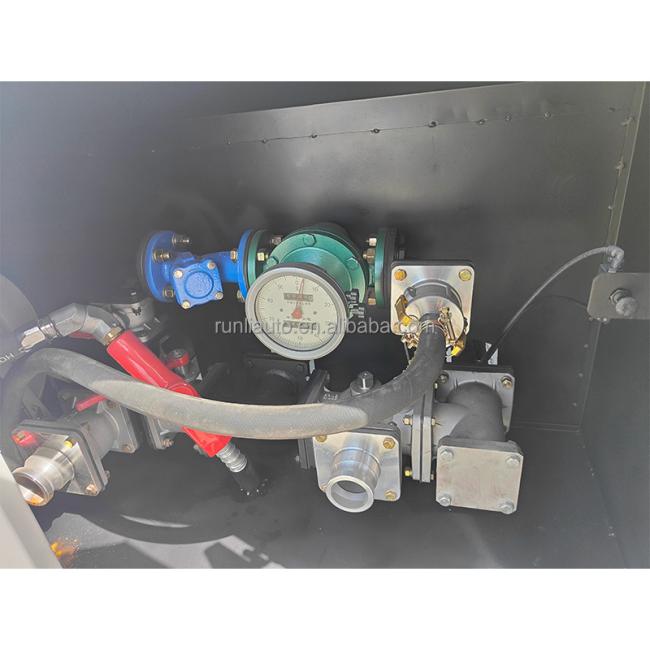

Oil pump and pipeline
|
Oil pump, seamless steel pipe; Pump flow: 30m³/h;
Pump pressure: 0.6Mpa; Speed: 960r/min; Shaft power: 7.1KW |
|
|
|
Pump inlet and outlet
|
Specification: choose one of DN50/DN65, aluminum alloy
Control method: manual |
|
|
|
Refueling reel and fueling gun
|
15m automatic return reel nozzle
|
|
|
|
Fuel dispenser
|
Three gold medals Chinese and English fuel dispenser (with ticketing function)
|
|
|
|
power takeoff
|
SDQ51-38PQ1 (flange output) or SDQ51-38LGQ1 (spline output)
|
|
|
|
Climb the ladder
|
Welded independent climbing ladder at the end of the tank-movable European style climbing ladder with anti-skid board
|
|
|
|
Top guard
|
Protective handrails are installed on both sides of the top of the tank-aluminum alloy folding guardrail
Anti-skid plate installed on the top of the tank-anti-skid walkway |
|
|
|
Tube box
|
Number: 2
Installation position: one on each side of the tank Specifications: The length of the tube box is the same as the tank body, and the cross section is circular Water diversion pipe: each pipe box has a built-in water diversion pipe with male and female end joints. The joint model is DN50/DN65. |
|
|
|
Fire extinguisher barrel
|
Material: Q235
Quantity: 2 |
|
|
|
Fire extinguisher
|
Specification: 4KG Quantity: 2
|
|
|
|
exhaust pipe
|
Rear to front
|
|
|
|
Electrostatic device
|
Metal electrostatic plate, electrostatic belt device: 1 each
|
|
|
Subframe
|
Tank bottom auxiliary beam
|
Made of Q345 carbon steel plate
|
|
