SHACMAN 8X4 Fuel Tank Truck 35000-40000 Liters Diesel Tanker Truck LHD Driving Type
SHAANXI 8*4 35000 -40000 Liters Oil Tank Truck Fuel Diesel Tanker Truck Call 0086 15897603919 Ms.Pinky
SHAANXI 8*4 Oil Tank Truck also name refueling tank truck, oil tank truck, fuel tanker, diesel tank truck, crude oil tank truck, gasoline tank truck, heavy oil tank truck, tank truck and Fuel Oil Diesel Gasoline Bowser Truck so on.
SHAANXI 8*4 Oil Tank Truck including tank body, power take off, transmission shaft, gear pump, computer fueling machines, pipe system and so on.
More information, please contact with me.
0086 15897603919 Ms. Pinky
SHAANXI 8*4 Oil Tank Truck specification:
|
SHACMAN 8X4 OIL TANK TRUCK LHD DRIVE
|
||
| Model | SX1315NM456 | |
| Traction | 8x4 | |
| Driving type | LHD (RHD is optional) | |
| Cab | SHACMAN, D’LONG high roof( A/C) & two seats & two BEDS | |
| Vehicle Main Dimensions | L-W-H(mm) | 11779,11850×2490×4000 |
| Wheel base(mm) | 1800+4500+1350 | |
| Wheel track(mm) | Front track(mm):2036 | |
| Rear track(mm):1860 | ||
| Approach/Departure angle(°) | 16/14. | |
| Overhang(front/rear)(mm) | 1525/2604,2675 | |
| Tare Weight(kg) | 12650 | |
| Front axle | 7.5Ton MAN DRUM(Steering axle) | |
| Rear axle | 13Ton MAN (Double reduction driving axle, differential lock) | |
| Axle Ratio | 4.266 | |
| Driving Speed(km/h) | 78 | |
| Engine | Brand | WEICHAI |
| Model | WP10.270 / WP10.290 / WP10.336 | |
| Emission | Euro III | |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter cooling | |
| Displacement | 9.726 L /Diesel | |
| Max. output | 270,290,336hp@2200rpm | |
| Max torque | 1100,1160,1250NM@1200-1600rpm | |
| Bore/Stroke(mm) | 126/130 | |
| Gear Box | Brand | FAST (Fuller US technology) |
| Model | 9JS119,9JS135 | |
| Type | No. of speed:9 forward speed,1 reverse speed | |
| Clutch | Φ430 Diaphragm-spring | |
| steering | ZF Technology from Germany | |
| Tire | 12.00R20 (rim: 8.5-20) | |
| Fuel tank | 300L Aluminum Tank | |
| Spring | Heavy duty leaf Spring 13/13/12 | |
| Manufacture | SHAANXI AUTOBOBILE GROUP CO.,LTD | |
| Origin | P. R .China | |
High quality carbon steel Q235-A 6mm thickness.
With pump model: 80YHCB-60

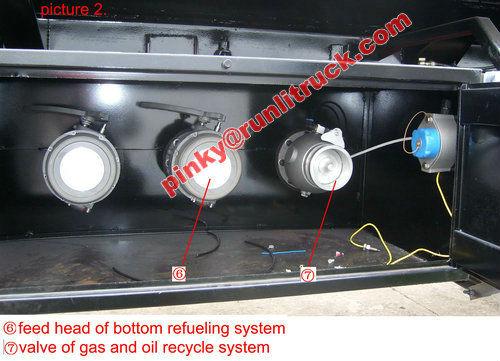

COMMON OUTLET FOR FUEL TANK TRUCK:

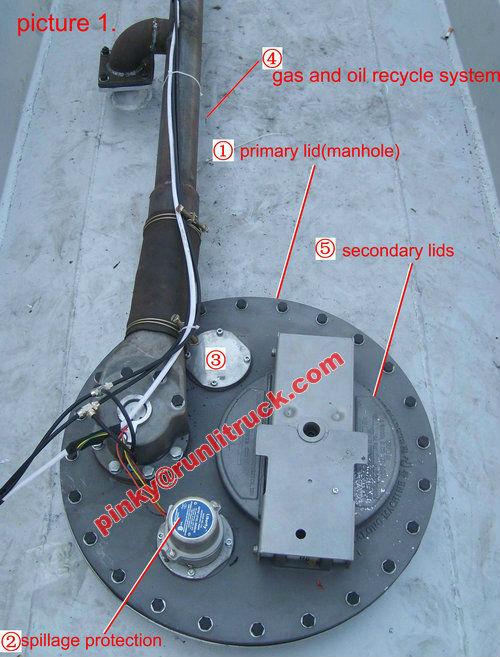

Optinal equipment for Shacman Fuel Tank Truck, European Standard manhole and outlet:
Optional Material of tank body:
| steel option | Carbon steel Q235/Q345/ 16 manganese steel/ |
| stainless SS201/SS304 /SS316 tanker | |
| oil/petrol,Fuel diesel/Methanol/Tank truck | steel tank with oil pump/ gun fuel truck nozzle |
More Information pleaes contact with Oversea Market Sales Manager:
Welcome to Visit our factory in Suizhou City, Hubei Province!
