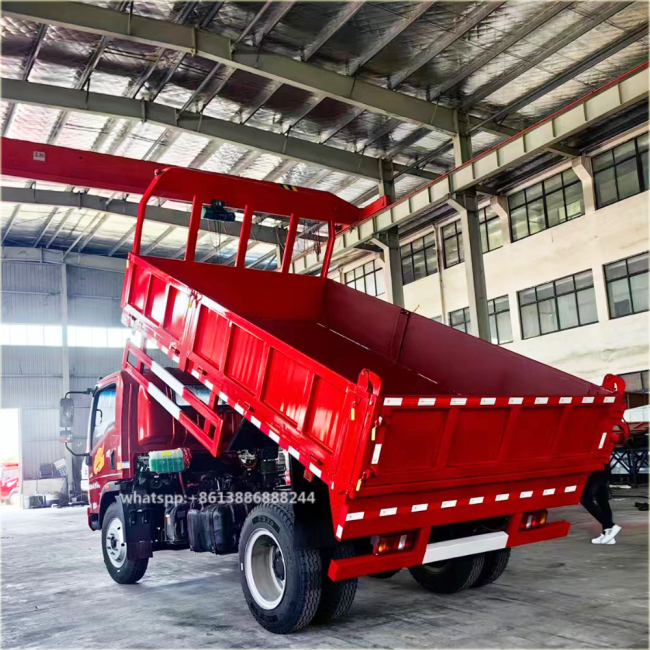

SINOTRUK Homan 4X2 Dumper Tipper Tip Truck
Price:
CN¥78,814.63/units 2-17 units
MOQ:
2 units
Delivery Time:
Negotiable
Brand:
Homan
Product Description
| Driving form: | 4X2 |
| Wheelbase: | 3600mm |
| Body length: | 6.295 m |
| Body width: | 2.35m |
| Body height: | 2.6 m |
| Front wheel base: | 1665mm |
| Rear wheel base: | 1724mm |
| Vehicle weight: | 5.53 tons |
| Rated load: | 5.99 tons |
| Total mass: | 11.715 tons |
| Tonnage class: | Light truck |
| Approach Angle: | 30 degree |
| Departure Angle: | 17 degrees |
| Market segments: | Engineering transportation |
| Engine type: | Power in the cloud YN38CRD1 |
| Engine brand: | Intra-cloud dynamics |
| Number of cylinders: | 4-cylinder |
| Fuel Type: | Diesel oil |
| Displacement: | 3.76 L |
| Emission standard: | Euro IV |
| Maximum horsepower: | 15 horsepower |
| Maximum torque: | 315N·m |
| Maximum torque speed: | 1600-2400rpm |
| Rated speed: | 3000rpm |
| Engine form: | Electronic control, water-cooled EGR technology, electronically controlled high pressure common rail fuel injection technology, post-processing DOC+POC |
| Container length: | Four meters |
| Container width: | 2.15 m |
| Container height: | 0.8 m |
| Container form: | Back dump type |
| Transmission brand: | fast |
| Forward gear: | 5 gear |
| Number of reversals: | one |
| Tank capacity: | 120L |
| Front axle allowable load: | 4220kg |
| Rear axle description: | unitary |
| Rear axle allowable load: | 7495kg |
| Number of spring pieces: | 2007/10/10 |
| Tire Specifications: | 8.25 R20 |
