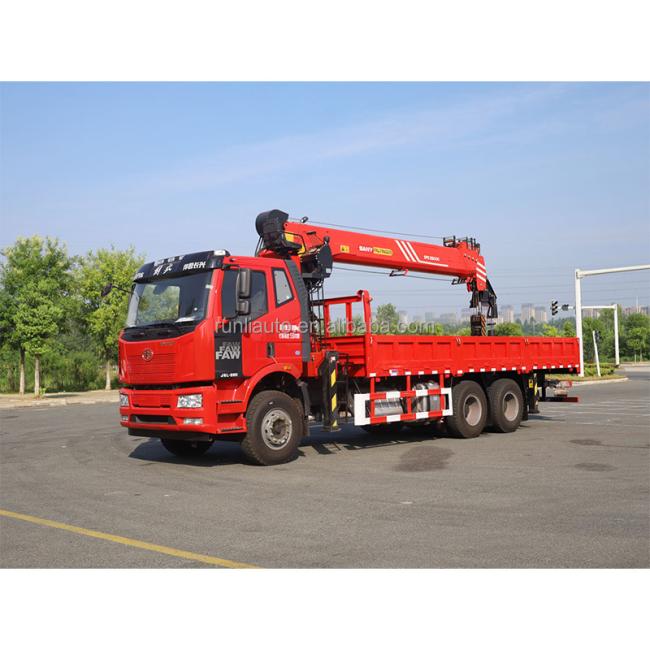

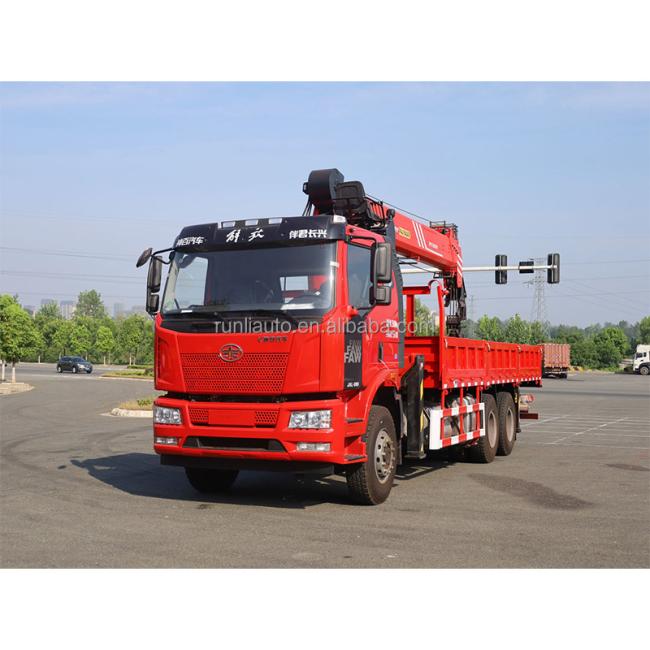

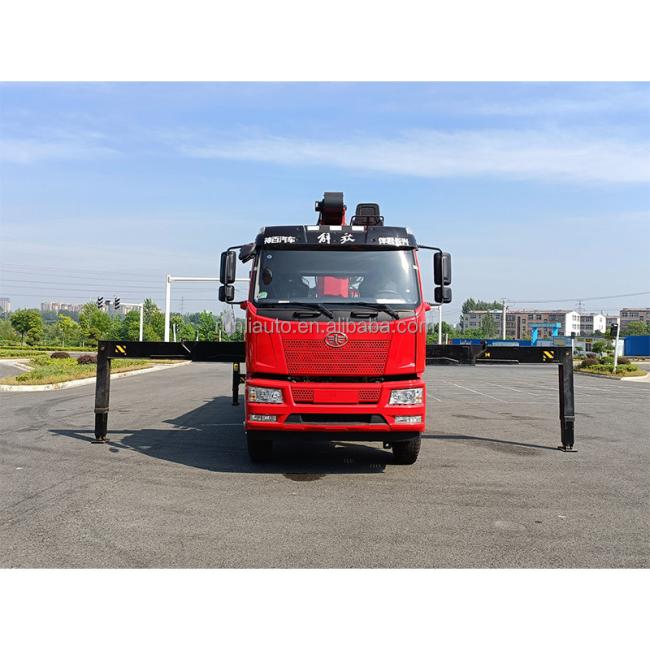

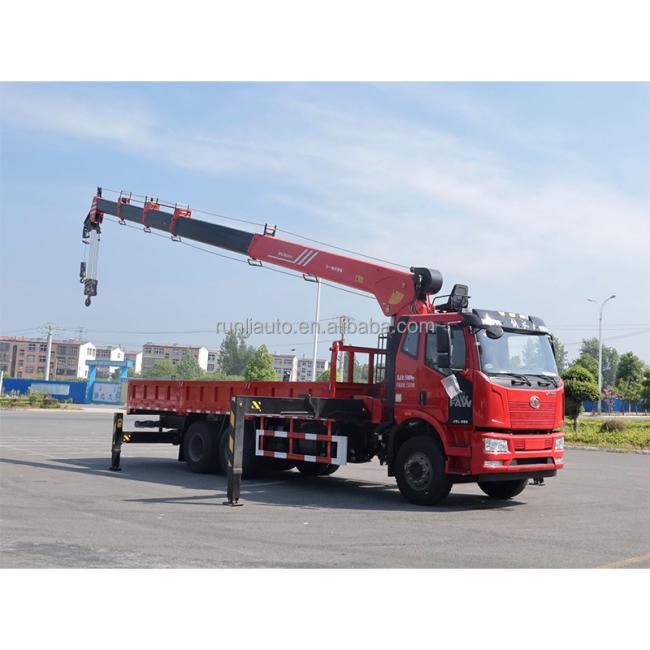

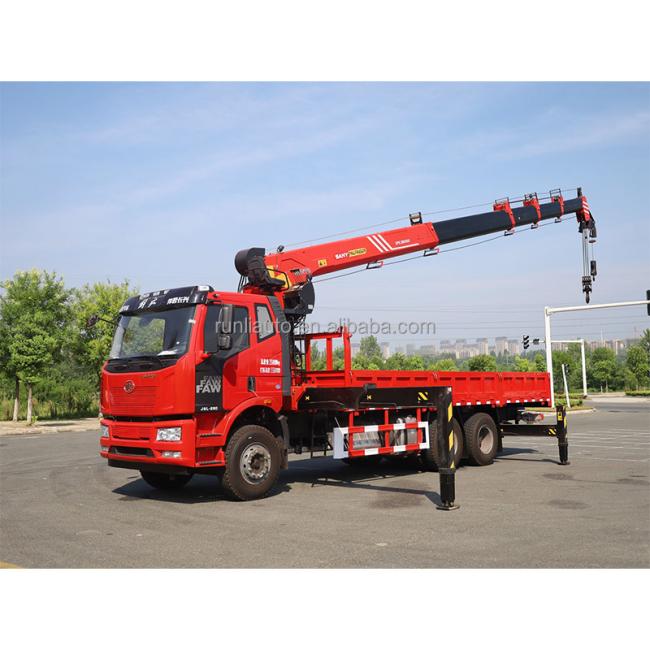

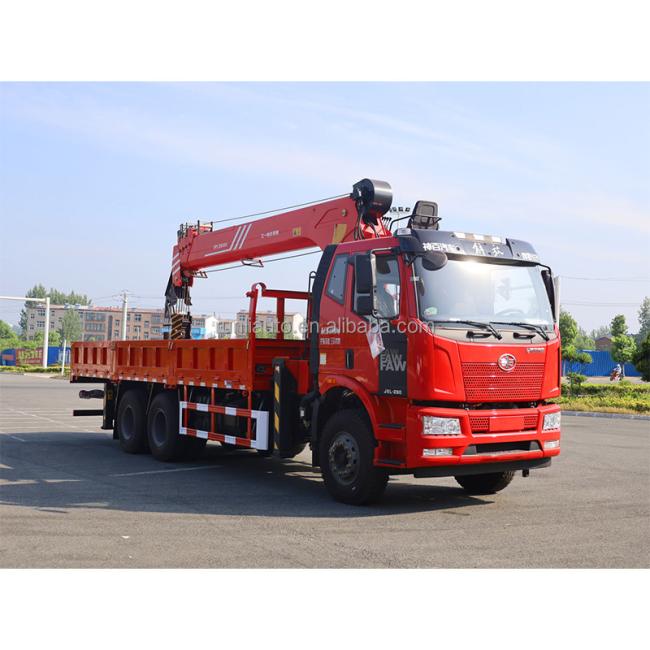

FAW 6x4 Crane Truck Mounted 12 Tons
Price:
CN¥219,090.21/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
1suzu GIGA
Product Description
Product Description
FAW 6x4 cargo truck with 12 tons crane | ||
Engine | ||
Engine model | WP10.270E32 | |
Emission standards | EURO 3 | |
Engine type | Diesel engine | |
Engine displacement (L) | 9.726 | |
Rated power of engine (kw/hps) | 199 | |
Maximum torque (N.m/rpm) | 700/1500 | |
Gearbox | ||
Gearbox model | Manual 9JS119T | |
Rear axle | ||
Rear axle model/load (T) | double10T | |
Rear axle speed ratio | 5.428 | |
Cabin type | Left side driving, flat head,one row with sleeping bed, electric window | |
Drive form | 6x4 | |
Tire type/number | 11.00R20/10+1 pcs | |
Weight parameter | ||
Curb weight (Kg) | 12155 | |
Rated load capacity (Kg) | 20000 | |
Performance parameter | ||
Maximum speed (km/h) | 95 | |
Minimum ground clearance (mm) | 300 | |
Dimension parameters | ||
Overall dimensions (LxWxH)mm | 11900x2500x3800 | |
Cargo box dimension(mm) | 8500x2300x800 | |
Wheelbase(mm) | 5700+1350 | |
Rated voltage (V) | 24 | |
Model | SQS300-4 |
Max lifting capacity(kg) | 12000 |
Max.outreach | 15.8 |
Max. lifting height | 17.8 |
Rated Flow of Hydraulic System L/min | 63 |
Oil tank capacity | 200 |
Rated Pressure of Hydraulic System | 26 |
Recommend Power | 52 |
Installation space | 980 |
Slewing angle | 360° |
Crane Weight | 5600 |
Boom section | octangle |
Leg structure | Double cavity telescopic square leg |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
